Four words appear on every 3D scanner specification sheet, and they are routinely used as if they meant the same thing. They do not. Understanding the difference is the difference between buying a scanner that suits your parts and buying one that produces impressive-looking data you cannot certify.

Accuracy

Accuracy measures how closely a measurement matches the actual physical dimension. If a 100.00 mm feature is measured as 100.02 mm, the resulting error is 0.02 mm. It is the figure that matters wherever a measurement has consequences:

• First article inspection (FAI)
• GD&T verification
• Tooling validation
• Casting and machining inspection
• Reverse engineering
• Quality control

Precision

Precision — often called repeatability — describes consistency across multiple scans rather than closeness to truth. Scan a 100.00 mm object five times and get 100.02, 100.02, 100.03, 100.02 and 100.02 mm, and you have excellent precision: a spread of only 0.01 mm. You also have a consistent 0.02 mm offset from the true value. Precision without accuracy means being reliably wrong, which is worse than being obviously wrong, because nothing in the data flags it.

Resolution

Resolution is what lets a scanner capture fine edges, small engravings, surface defects and intricate geometric detail. The critical point: higher resolution does not automatically mean higher accuracy. Resolution governs how much detail is captured; accuracy governs whether the dimensions are correct. Higher resolution also means larger datasets, longer processing and more storage, so the sensible approach is to choose a resolution that matches the inspection tolerance rather than the highest available.

Volumetric accuracy

Volumetric accuracy describes measurement precision across a larger scanning volume, and it is quoted as a formula rather than a single number — because measurement uncertainty accumulates over distance. A typical specification looks like this:

This is why a single-point accuracy figure tells you very little about a 3 m casting or a battery tray. If your parts are measured in metres, the volumetric formula is the number to compare between systems.

Two ways to improve it

• Global markers. Pre-scanning global markers gives the alignment algorithm an absolute spatial reference before point cloud capture begins, rather than letting it rely purely on stitching frames together.
• Video photogrammetry (VPG). SHINING 3D's patented approach reduces preparation time by at least 50% while maintaining volumetric accuracy. It is integrated in the FreeScan Trak ProW, FreeScan Trak Nova, FreeScan Omni, FreeScan Trio and FreeScan UE Pro2.

How the figures are validated

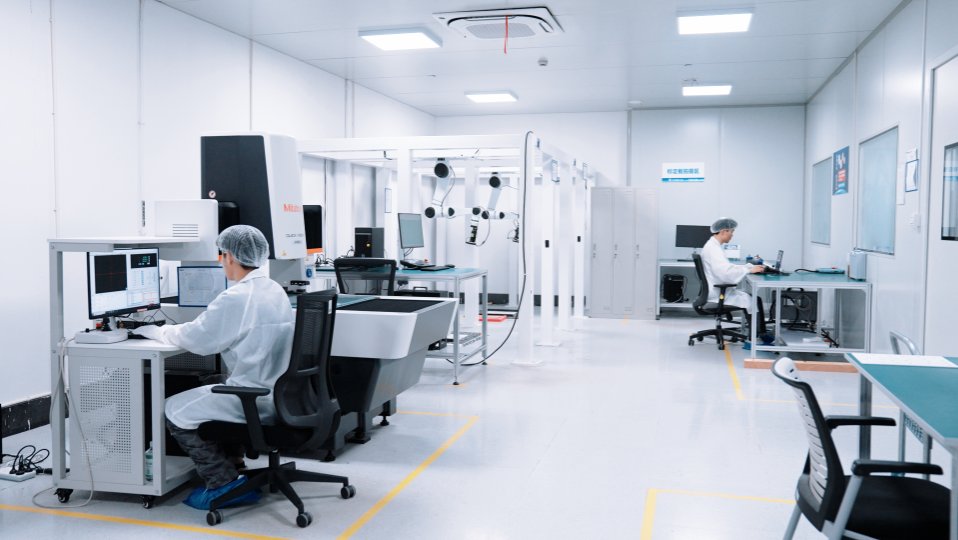

SHINING 3D operates a 1,100 m² ISO/IEC 17025-accredited Accuracy Lab which validates scanners against international standards:

• VDI/VDE 2634 Part 1:2002 — point-by-point probing
• VDI/VDE 2634 Part 2:2012 — area scanning
• VDI/VDE 2634 Part 3:2008 — multiple view systems
• ISO 10360-12:2016 — articulated arm CMMs
• ISO 10360-13:2021 — optical 3D CMMs

Common questions

Does higher resolution mean higher accuracy? No — resolution captures detail while accuracy determines dimensional correctness.

Why does accuracy decrease on larger objects? Measurement uncertainty accumulates over distance, which makes volumetric accuracy increasingly important as parts get bigger.

Which industries require metrology-grade accuracy? Automotive, civil aviation, manufacturing, tooling, heavy industry, energy and quality inspection.

How do you improve accuracy in practice? Proper calibration, stable environmental conditions, optimised scanning workflows, and photogrammetry on large volumes.

Are ISO certifications important? Yes — ISO 10360 and VDI/VDE 2634 provide objective, published methods for evaluating accuracy rather than a manufacturer's own claim.

Metrology-grade scanners have precise hardware specifications, but actual measurement accuracy depends on the complete scanning workflow. Two operators using identical equipment on the same part can achieve different results based on how they execute the process.

1. Calibration

Calibration establishes the reference point for accurate measurement. Transportation, daily operation and temperature fluctuations cause micro-shifts in the scanner's optical system — imperceptible to the naked eye, and significant at the micron level.

• Perform calibration after transportation
• Conduct regular calibration during ongoing operation
• Follow the manufacturer's calibration schedule
• Recalibrate following any significant environmental change

Regular calibration restores traceability and keeps performance within the specified accuracy limits. It is not a formality; it is the reason the number on the report means anything.

2. Environmental conditions

Temperature is critical, and it affects both the physical part and the scanner's internal components. Allowing the scanner to warm up and maintaining a stable ambient temperature minimises thermal effects.

Vibration matters more than people expect. A 3D scanner is an advanced camera system capturing thousands of images during a scan. Vibration blurs the raw 2D frames, and blurred frames produce noisy, poor-quality 3D mesh data — the same way a photograph taken with shaky hands comes out soft.

• Allow adequate warm-up time before scanning
• Maintain a consistent ambient temperature
• Use vibration-free workbenches
• Employ reference markers with dynamic tracking systems

3. Scan path

During scanning, the software aligns thousands of individual frames to build a complete model. The alignment error between two adjacent frames is microscopic — but those errors compound, snowballing with every stitch. The path the operator walks therefore determines how much error accumulates.

Linear paths scan in straight, horizontal lines. This creates the longest travelled distance between the start and end points, and neither point is constrained, so accumulated error is highest.

Closed loop paths return the scanner to its starting point. The loop constrains the path — the effective distance becomes the diagonal rather than the full sweep — which drastically reduces the travelled distance and the error with it.

Spider-web paths start from a centre point and expand outward in circles. The paths naturally overlap and constrain one another, and that cross-verification continuously strengthens the alignment.

For large or smooth surfaces, closed-loop and spider-web patterns produce more consistent results than linear scanning — better accuracy and steadier data, at no extra hardware cost.

4. A global reference on large work

Traditional photogrammetry captures coded targets distributed across the workpiece to establish a global coordinate framework, providing an absolute spatial reference for dimensional accuracy across large objects.

Video photogrammetry extends this using scale bars that continuously track reference targets in real time. Rather than relying solely on sequential frame alignment, the scanner can repeatedly reference the global coordinate system, which prevents alignment drift.

In short

3D scanning accuracy is not determined by a single specification. It is achieved through the combination of the right equipment, the right workflow and the right scanning strategy: proper calibration maintaining specified accuracy, a stable environment minimising external disturbance, an optimised scan path reducing accumulated error through geometric constraint, and technologies such as VPG establishing a reliable global reference for large-scale inspection.

Accuracy is the closeness between a measured value and its true value. Underneath that definition sit two related ideas that are worth separating before comparing any two systems.

Trueness and precision

Trueness describes how average measurements compare to reference values — how accurate your measurements are on average. Precision refers to consistency across repeated measurements: it is about the reliability of the measurements, not necessarily about being close to the true value. A system can be precise but not true, true but not precise, or — the only useful combination — both.

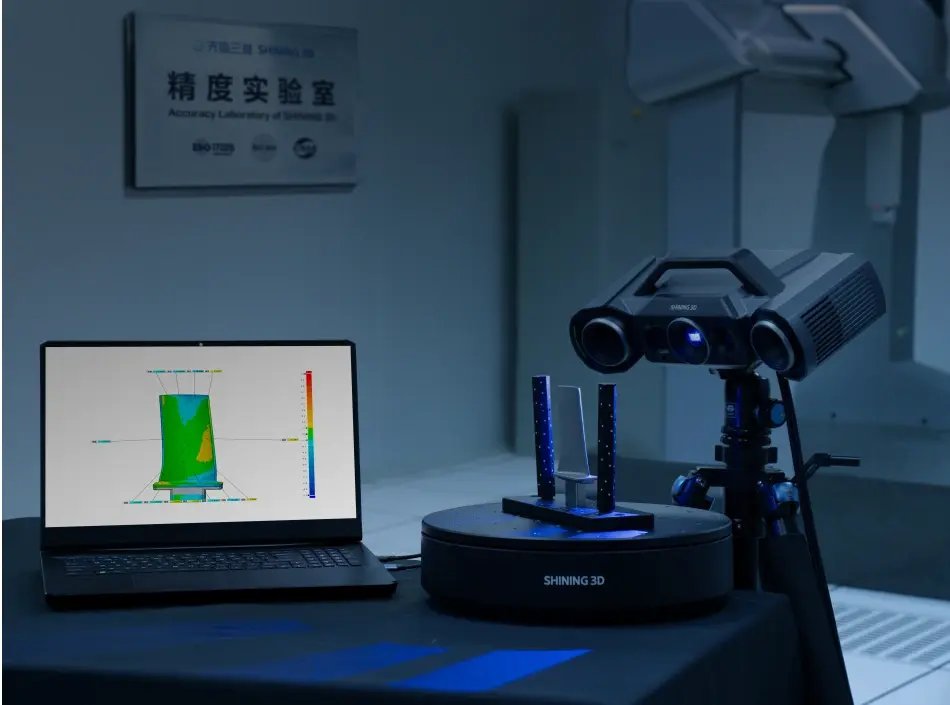

The calibration laboratory

SHINING 3D operates a CNAS-accredited Accuracy Laboratory under strict environmental control, because the conditions the calibration is performed in are part of the calibration:

• Temperature — 20 ±0.5 °C, year-round
• Humidity — 40–60% RH
• Vibration — anti-vibration measures throughout

The laboratory adheres to VDI/VDE 2634 Parts 2 and 3 for calibration specifications and procedures.

Standard artefacts

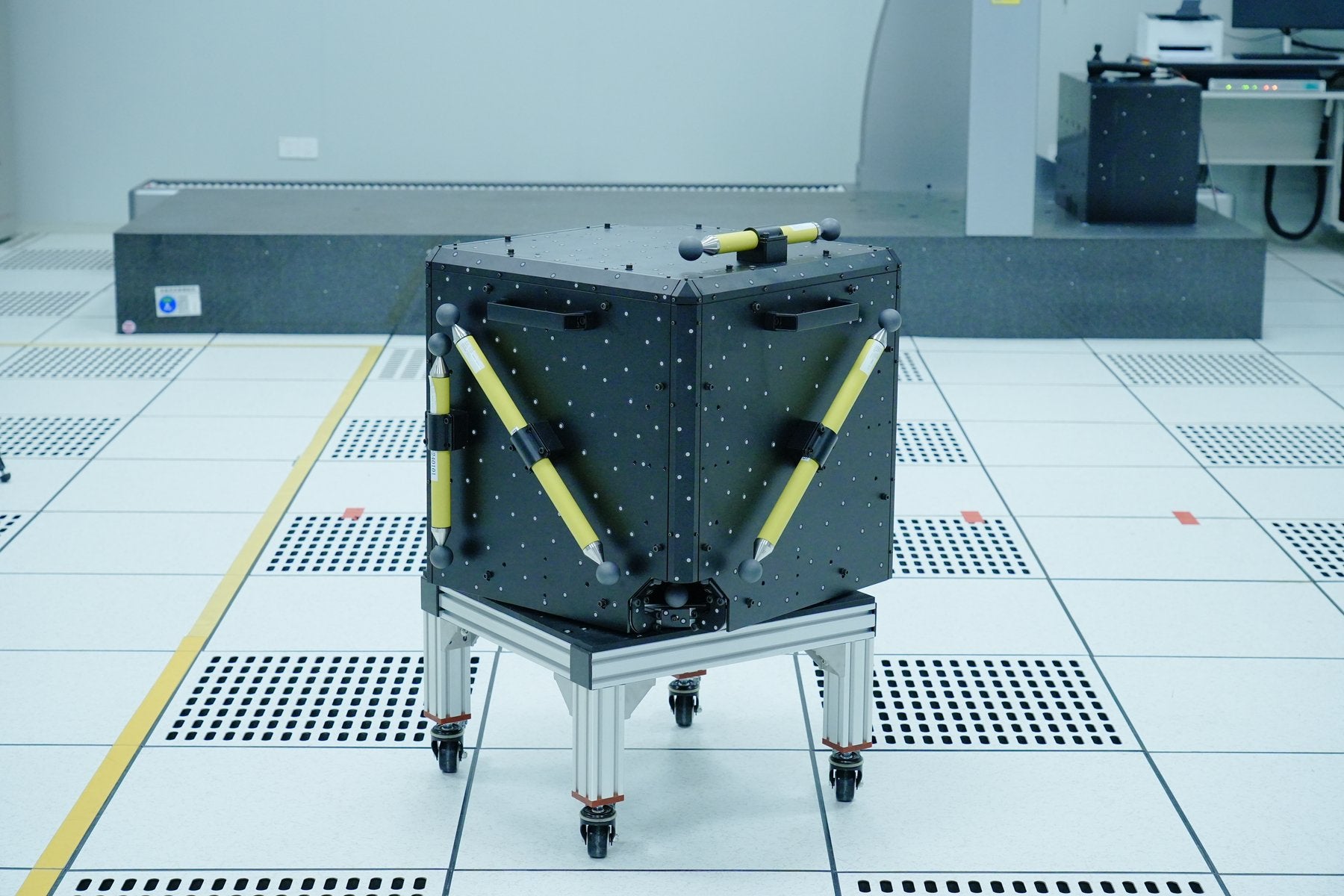

SHINING 3D designed a calibration cube carrying seven standard artefacts, each strictly calibrated by a third-party organisation. The design follows VDI/VDE 2634 requirements for spatial positioning and also accounts for automated robot scanning, so the same reference works for handheld and automated systems.

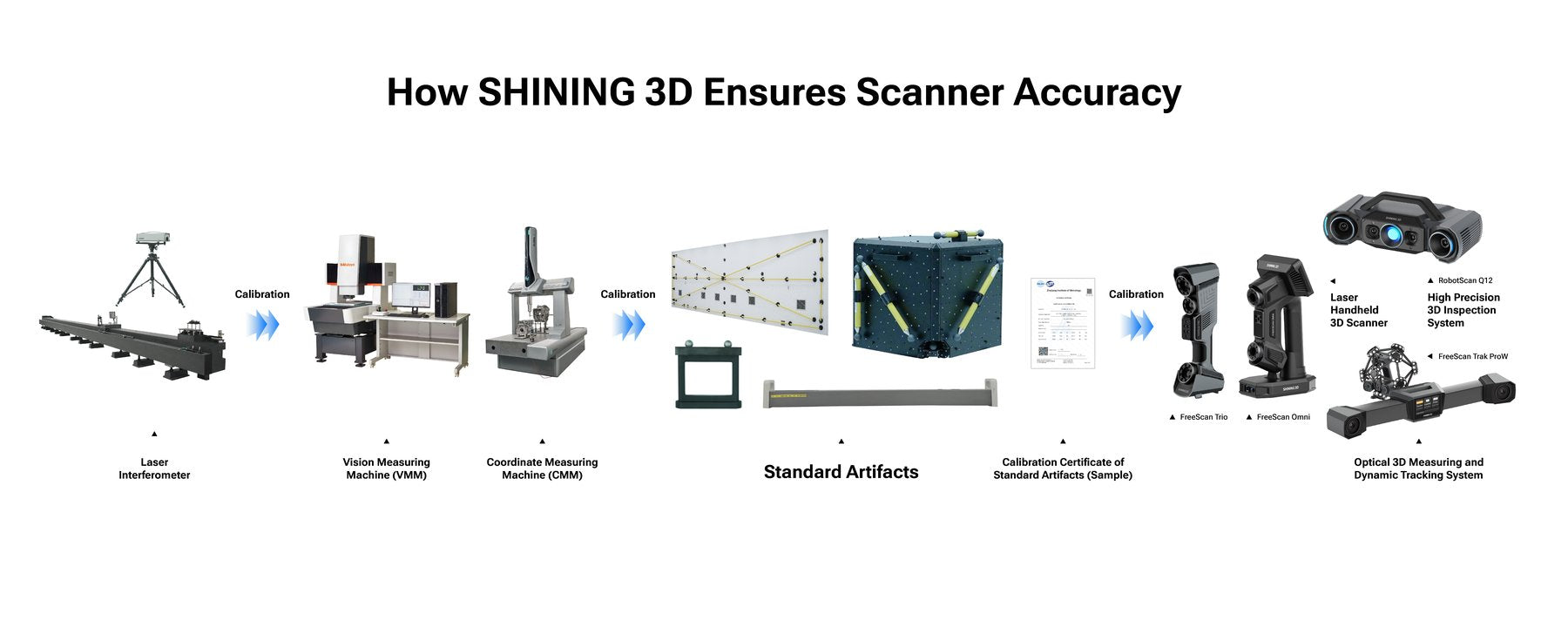

The instruments behind the instruments

• Coordinate measuring machine (CMM) — measures physical geometrical characteristics by sensing discrete points on a surface, and is used to verify the artefacts.
• Laser interferometer — uses the interference of laser beams to measure tiny distances, displacements or changes in refractive index with very high accuracy. It verifies the CMM itself through high-precision displacement and positioning error measurement.

That chain matters: the scanner is checked against artefacts, the artefacts are checked on a CMM, and the CMM is checked with an interferometer. Every link is what makes the final figure traceable rather than merely asserted.

What comes out of it

• Every handheld metrology 3D scanner complies with VDI/VDE 2634 Part 3.
• CNAS accreditation gains international recognition through the International Laboratory Accreditation Cooperation (ILAC) mutual recognition agreements.
• Calibration procedures align with those used by professional third-party metrology institutions.

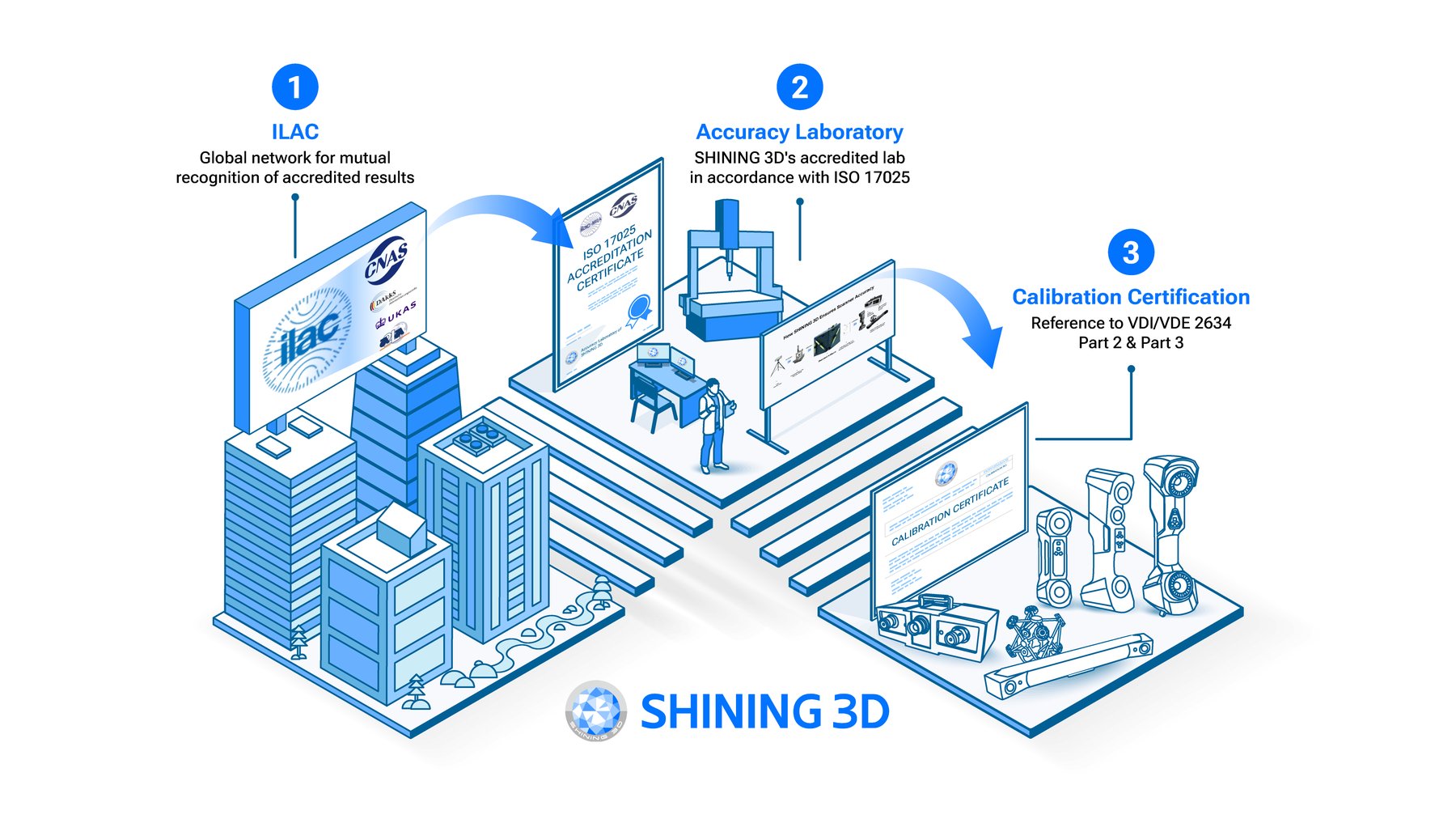

Any system claiming to be metrology-grade should come with a third-party calibration certificate against an international standard. Three separate things have to line up for that certificate to mean anything, and they are easy to confuse.

1. CNAS accreditation — who audits the laboratory

CNAS, the China National Accreditation Service for Conformity Assessment, is a member of the International Laboratory Accreditation Cooperation (ILAC), which comprises over 100 member organisations globally — including Germany's DAkkS, the USA's A2LA, the UK's UKAS and Japan's JAB.

CNAS ensures quality compliance by accrediting conformity assessment bodies — laboratories, inspection bodies and certification bodies — through comprehensive assessment and audit. Because of ILAC's mutual recognition agreements, CNAS-accredited certifications are recognised and accepted across member nations. That reciprocity is the entire point: it is what lets a certificate issued in one country satisfy a customer's auditor in another.

2. ISO/IEC 17025 — what the laboratory is held to

ISO/IEC 17025 sets the general requirements for the competence of testing and calibration laboratories, ensuring they operate consistently and generate reliable results. It is the benchmark CNAS assesses against. Note that it applies to the laboratory, not to the scanner.

SHINING 3D's Accuracy Laboratory obtained its ISO/IEC 17025 accreditation certificate from CNAS by implementing calibration procedures that strictly follow the VDI/VDE 2634 guidelines — calibration conditions, calibration items and methods, and the handling of calibration results. The accreditation demonstrates technical capability to conduct testing to international criteria, recognised technical competence, and a quality management system aligned to the standard.

3. VDI/VDE 2634 — what the scanner is measured against

VDI/VDE 2634 is a set of international standards issued by the Association of German Engineers (VDI) and the Association for Electrical, Electronic & Information Technologies (VDE), written specifically for optical 3D measurement systems.

• Part 2 — single-view systems
• Part 3 — multi-view systems

CNAS qualified the laboratory to provide calibration certificates based on VDI/VDE 2634 Part 2 and Part 3 for its metrology scanners, which is what gives the calibration reports international credibility.

The related family is ISO 10360, the broader coordinate metrology standard: Part 12 (2016) covers articulated arm CMMs and Part 13 (2021) covers optical 3D CMMs. ISO 10360-13 is the globally recognised standard for optical fringe projection 3D scanners.

Acceptance testing in practice

Acceptance testing includes measuring the distance between reference spheres — ball centre distance testing — to evaluate volumetric accuracy. On the OptimScan Q12 this involves capturing data at near, middle and far distances, and with the scanning head tilted to the extreme left and right, demonstrating that measurement deviation remains at the microscopic level across the working volume rather than only at the sweet spot.

Why it matters commercially

1. Compliance. Certificates are frequently required to meet company regulations and to make procurement processes defensible.
2. Quality. Industries with high safety requirements benefit from improved product quality and production safety.
3. Cost. Accurate measurement improves operational efficiency and reduces material waste, which produces real cost savings.

SHINING 3D's video photogrammetry is a patented advance on conventional industrial measurement. Unlike approaches that rely on static imagery, it extracts measurement information from continuous video rather than from a series of individual photographs.

How it works

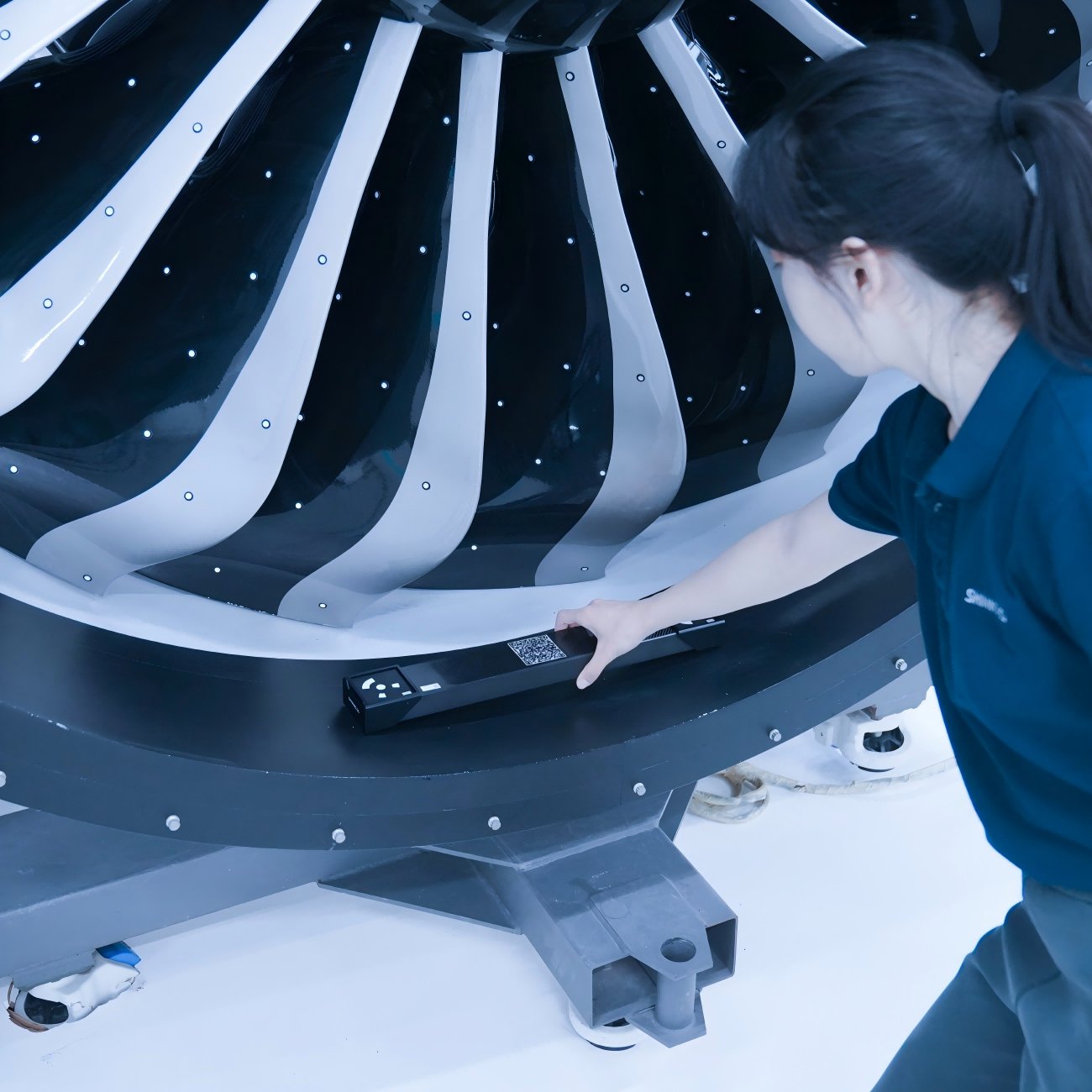

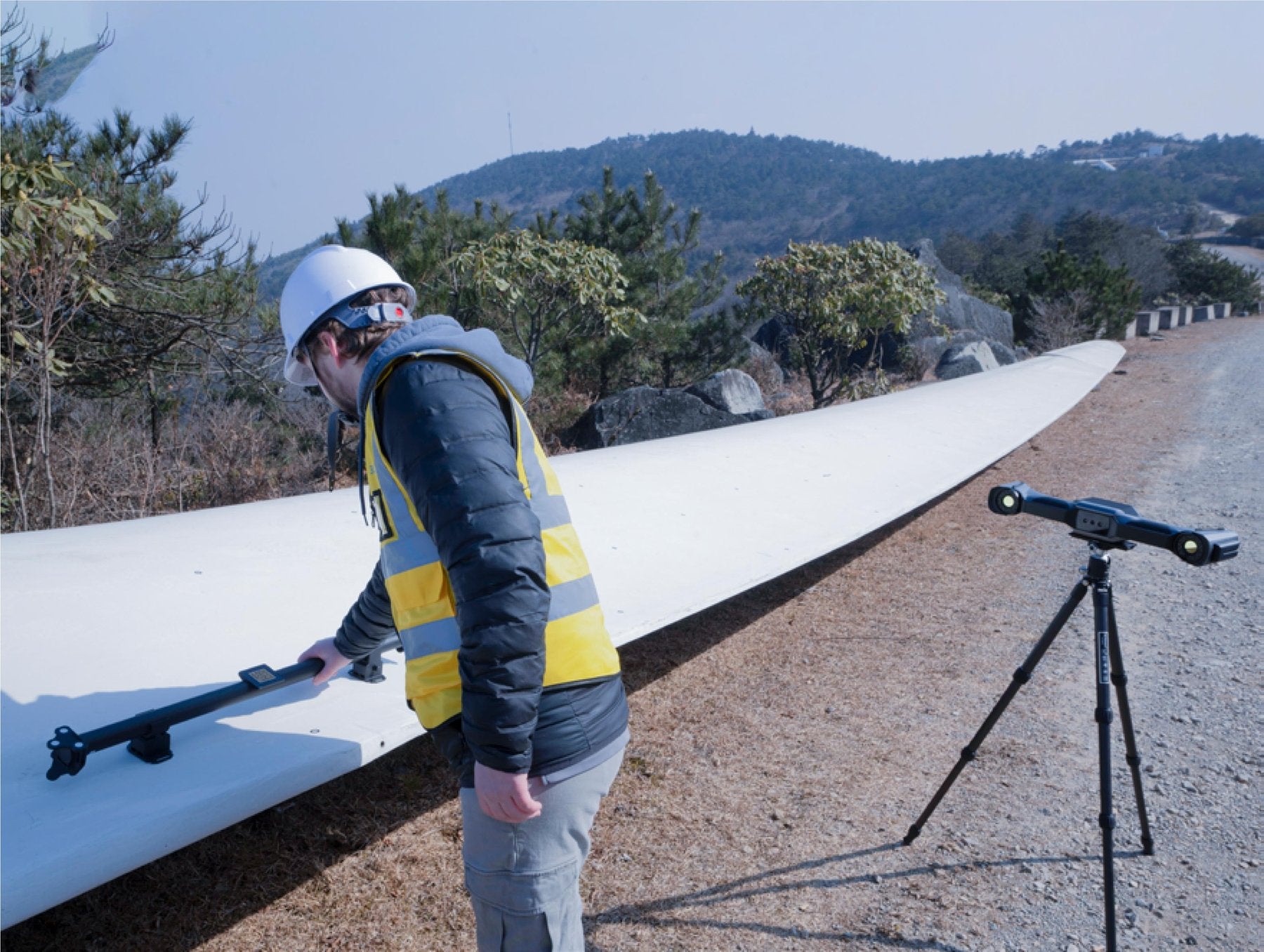

The operator captures multi-angle video footage of calibrated scale bars positioned around the object. The scanning software automatically detects the markers on those scale bars to establish spatial relationships, which enables precise volumetric accuracy across large components without requiring coded targets.

The workflow differs fundamentally from traditional methods. Rather than requiring an operator to shoot repeatedly from fixed angles, technicians perform continuous full-angle capture and the system automatically extracts the frames it needs from the video stream.

Compared with traditional photogrammetry

Published performance

• FreeScan UE Pro2 — volumetric accuracy of 0.02 + 0.015 mm/m
• 40 m wind turbine blade, measured with FreeScan Trak Nova — 0.046 + 0.012 mm/m
• Turbofan engine, measured with FreeScan Omni — 0.02 + 0.015 mm/m
• Preparation time — at least 50% faster setup than traditional photogrammetry

Which systems have it

VPG is integrated in the FreeScan Trak ProW, FreeScan Trak Nova, FreeScan Omni, FreeScan Trio and FreeScan UE Pro2.

3D scanners can be classified along three dimensions: light source, operating mode and accuracy. These layers of system design work together to define how a scanner performs in real-world applications, and between them they describe almost any product you will be shown.

Classification by light source

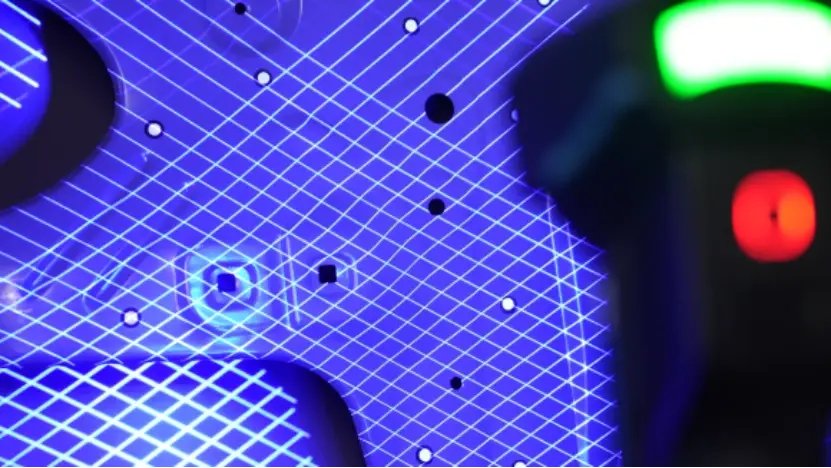

Laser. One of the oldest professional 3D scanning light sources. The concentrated beam maintains intensity over extended distances, which makes laser-based systems suitable for large objects and wide areas: excellent performance over long working distances, reliable outdoor operation, and stable measurement across large scanning volumes. Laser scanners excel when coverage, distance and measurement stability take priority over capturing microscopic surface detail.

LED projection. LED systems project illumination across an object's entire surface rather than concentrating it into a narrow beam, capturing substantial geometric data in a single frame. Typical benefits are high surface detail and point density, fast data capture on small and medium objects, and excellent accuracy at short working distances. LED projection performs best when high-resolution surface capture is the primary objective.

VCSEL infrared. Vertical-cavity surface-emitting laser modules are newer and increasingly found in consumer electronics. Compared with traditional industrial systems they are considerably smaller, consume minimal power and cost less to manufacture, with fast real-time depth sensing at short range. VCSEL suits AR/VR, spatial awareness and consumer-level scanning, where convenience and real-time performance matter more than engineering-grade precision.

Classification by operating mode

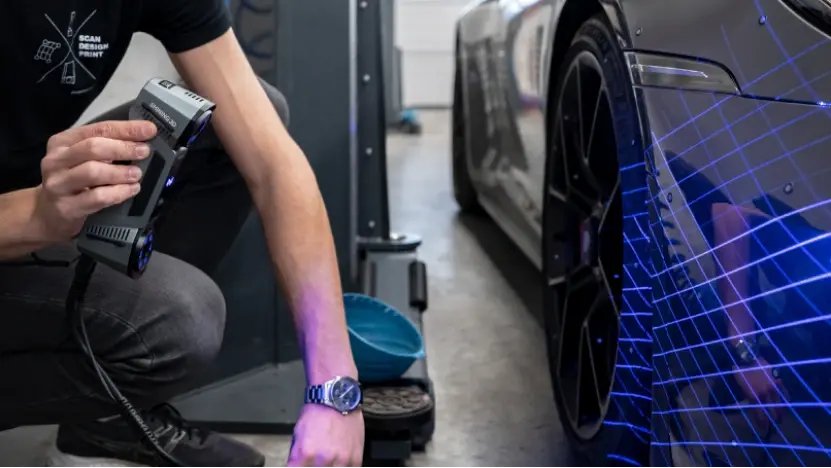

Handheld. The operator holds the device and moves around the object, capturing from different angles until coverage is complete. Handheld systems are versatile for objects too large, heavy or awkward to place on a scanning table. The trade-off is that scan quality depends more on the operator: inconsistent motion creates incomplete data and forces rescans. Typical use is medium to large objects scanned on site where portability is essential.

Stationary or fixed. Scanner and object both stay still. Desktop systems typically use an automatically rotating turntable, allowing multi-angle capture without moving the device. The advantages are excellent repeatability between scans, stable conditions that reduce user error, and high-quality models with fine surface detail. The limitation is that objects must fit inside the working volume, which rules out large, installed or immovable equipment. Common uses are small and medium objects — mechanical parts, models, jewellery, electronic products.

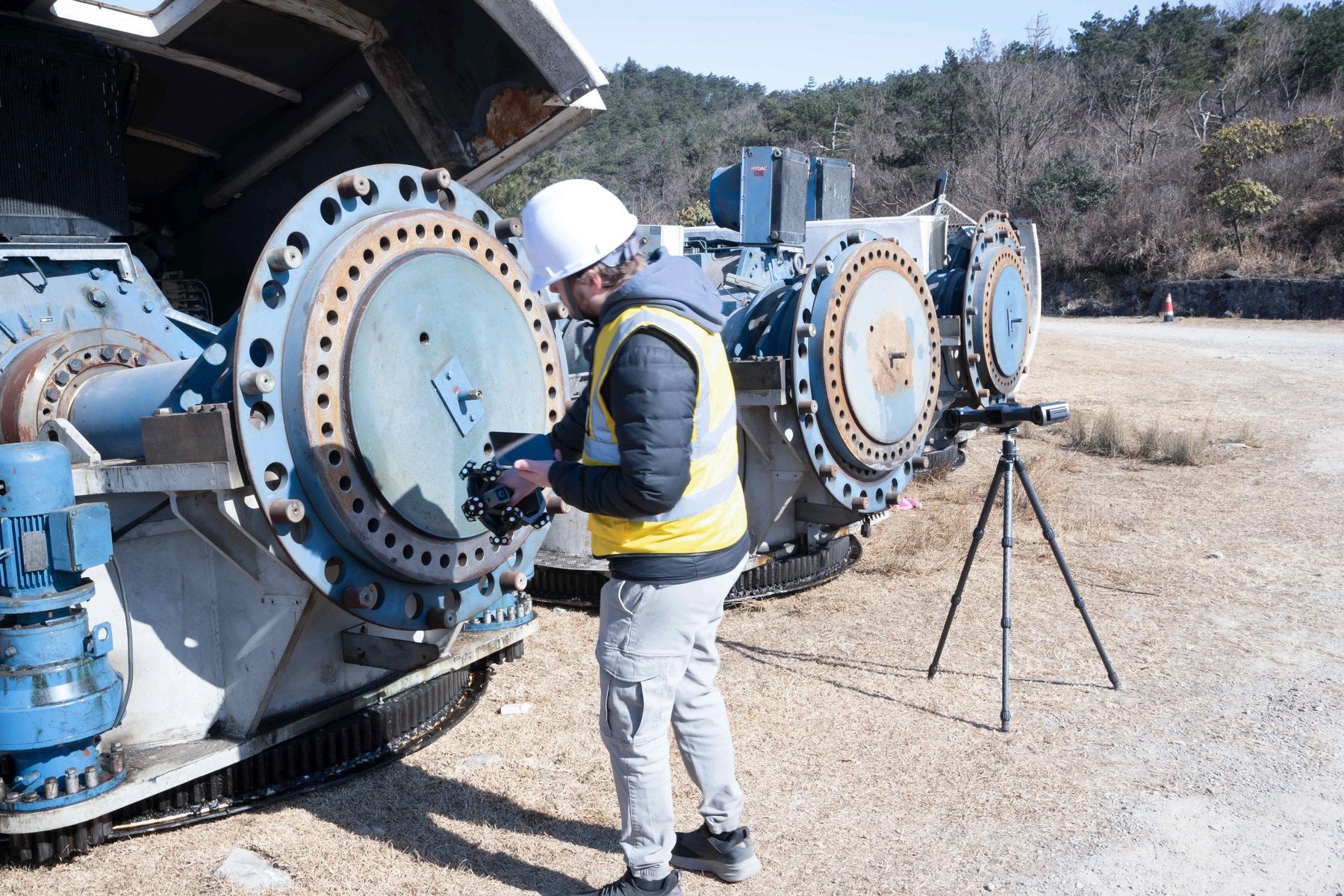

Tracking-based. These combine handheld scanning with external tracking that continuously monitors the scanner's position during operation. That reduces accumulated positioning error during extended scans, improves accuracy over large scanning volumes, and can eliminate or reduce physical markers on the object. Tracking systems are the usual answer for industrial inspection and large-scale measurement.

Classification by accuracy

Accuracy is one of the first specifications people look at when comparing scanners. But the precision you need depends on the application — "as accurate as possible" is the wrong question, and it is an expensive one.

The three axes combine

These classifications are not alternatives, they are layers. A handheld scanner might use LED projection for high-detail capture, while a tracking-based system might combine laser technology with metrology-grade accuracy for industrial inspection. Three questions describe any 3D scanner:

1. What light source does the scanner use?
2. How is the scanner operated?
3. What level of accuracy does the application require?

Answer those and the shortlist mostly writes itself — whether you are exploring the field for the first time or comparing the newest products on the market.

Structured light and LiDAR are both ways of capturing 3D data, and they are regularly discussed as if they competed. They mostly do not: structured light is optimised for capturing detailed object geometry, while LiDAR is optimised for measuring distance and understanding larger spatial environments.

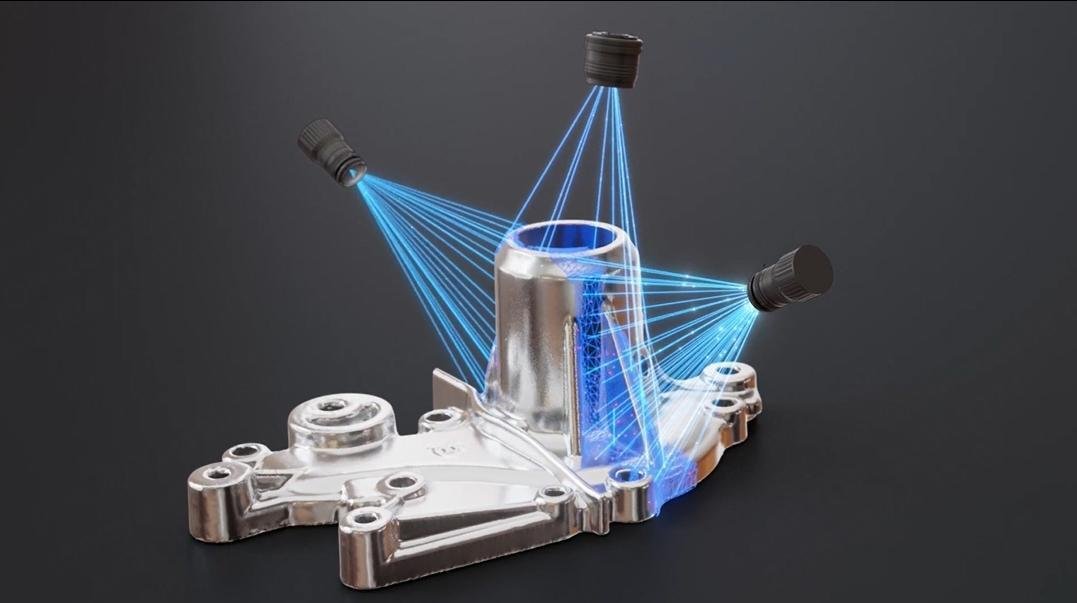

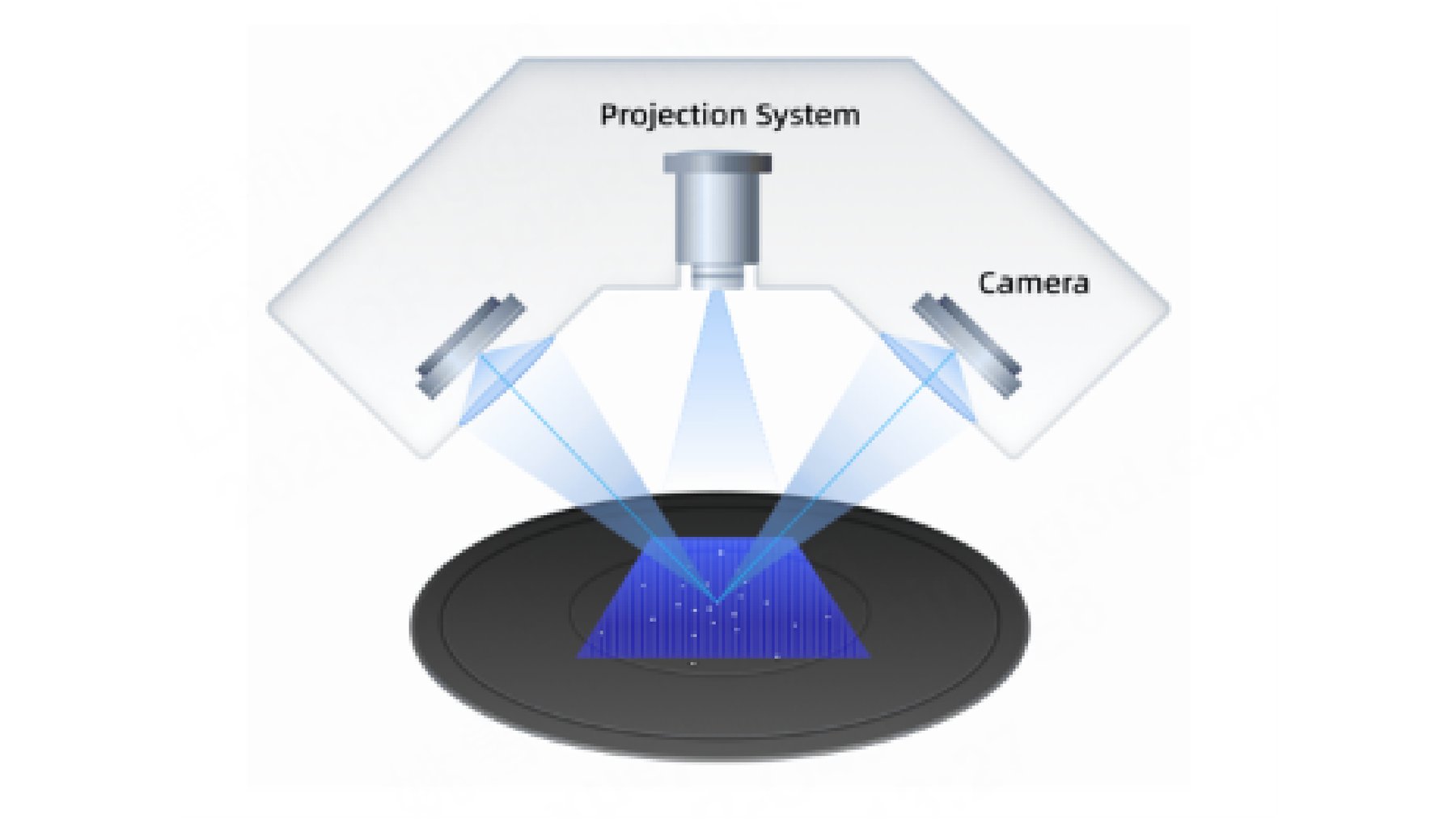

How structured light works

The process runs in four steps. A projector casts a known light pattern onto the object. A camera captures how that pattern deforms across the surface. Software compares the projected pattern with the captured one. From that comparison it calculates 3D surface positions.

Typical applications include facial recognition in smartphones using infrared patterns, professional scanning for reverse engineering, dimensional inspection and quality control, and digital archiving and cultural heritage preservation.

How LiDAR works

LiDAR — light detection and ranging — emits laser pulses and measures the time the reflection takes to return. Distance values are calculated from that return time and converted into 3D spatial data.

Primary applications span autonomous vehicle navigation, robotics and obstacle detection, mobile mapping and surveying, and architecture and infrastructure documentation.

Using both together

Combining LiDAR's broad environmental context with detailed 3D scan data creates a more complete dataset than either produces alone. The EinScan Libre supports exporting data in LAS format, which allows integration with LiDAR point cloud software.

Two worked examples from the source material:

• Historic architecture preservation — LiDAR captured a 745 m² courtyard layout while the EinScan Libre documented the intricate wooden carvings within it. One dataset for the space, one for the detail.
• Surveying and mapping — the combined approach captures expansive environments alongside the intricate features that sit inside them.

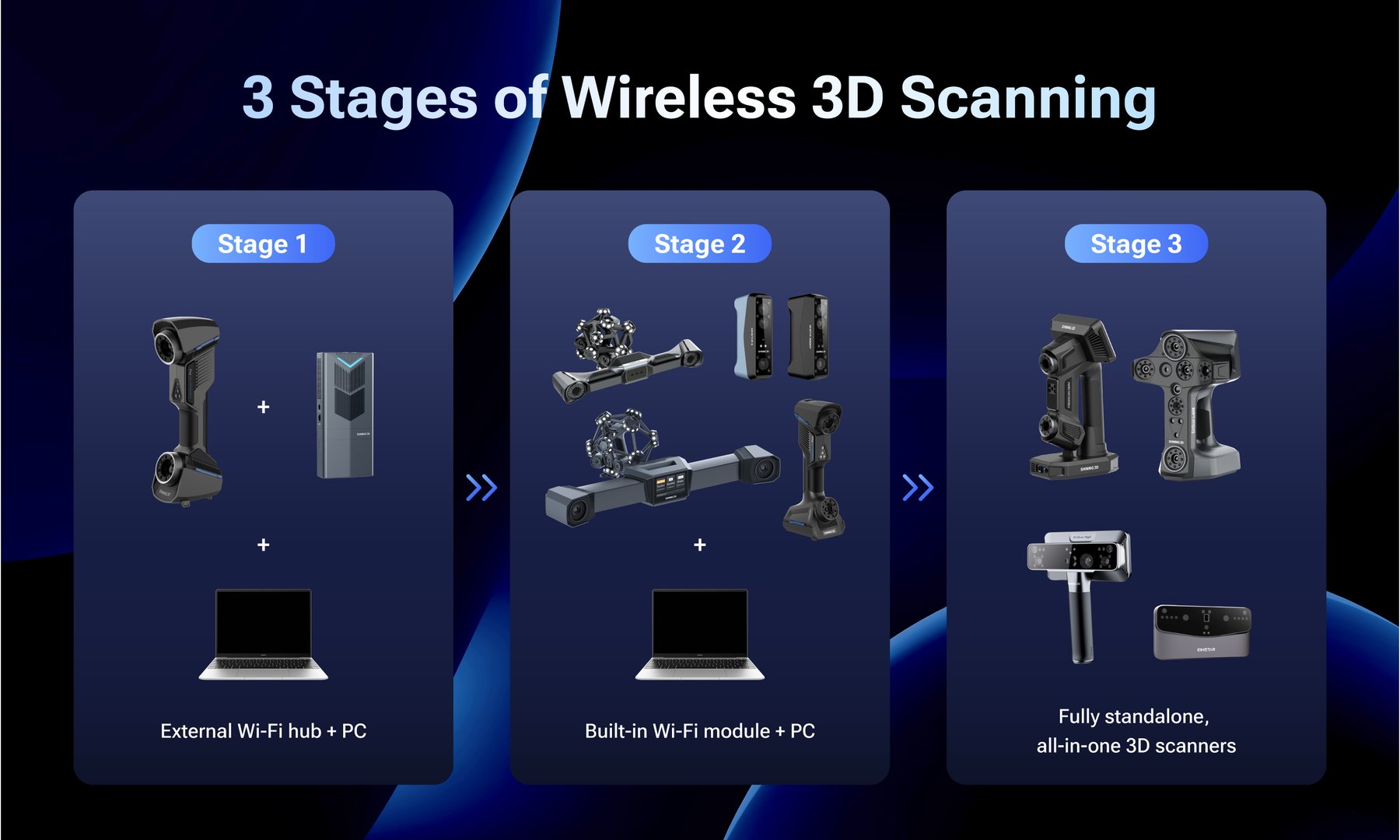

Wireless scanning has developed in three distinct stages, and products from all three are still on the market. The word on the datasheet is the same in each case; what you actually have to carry to the part is not.

Stage 1 — external Wi-Fi hub plus PC

The initial approach relied on external Wi-Fi modules to transmit data from the scanner to a connected computer. This reduced cable constraints compared with fully wired systems, but devices still needed external power and computer processing, and data transmission could be less stable in electromagnetically complex environments — which is a reasonable description of most factories.

Stage 2 — built-in Wi-Fi module plus PC

Manufacturers improved connectivity by embedding wireless capability directly into the scanner rather than hanging an adapter off it. SHINING 3D adopted this integrated design, which improved connection stability, simplified setup and increased operational flexibility — particularly for scanning large components. An external computer was still required for data processing.

Stage 3 — fully standalone all-in-one scanners

The current frontier combines Wi-Fi, computing and a built-in display on a single device. This maximises mobility and simplifies workflows without relying on external computers or power sources, delivering the lightweight, complete solutions users have been asking for.

SHINING 3D systems at this stage include the FreeScan Omni, EinScan Libre, EinScan Rigil and EINSTAR Vega. The FreeScan Omni also introduces on-scanner inspection capability, the first of its kind in the industry.

Why it matters on a real floor

The reason this is more than a convenience feature is safety and access. On elevated platforms and around large assemblies, cables are a trip hazard and a hard limit on how far you can walk around a part. Removing them changes which jobs are practical, not just which are pleasant.

What to check when a scanner is described as wireless

• Does it still need a PC to process, or is the compute on board?
• Does it still need mains power, or is it battery operated?
• Is there a display on the device, or are you carrying a laptop anyway?
• How does the link behave near stamping presses and heavy machinery?
• Can it run an inspection on-device, or only capture?
• What happens to the scan if the link drops mid-capture?

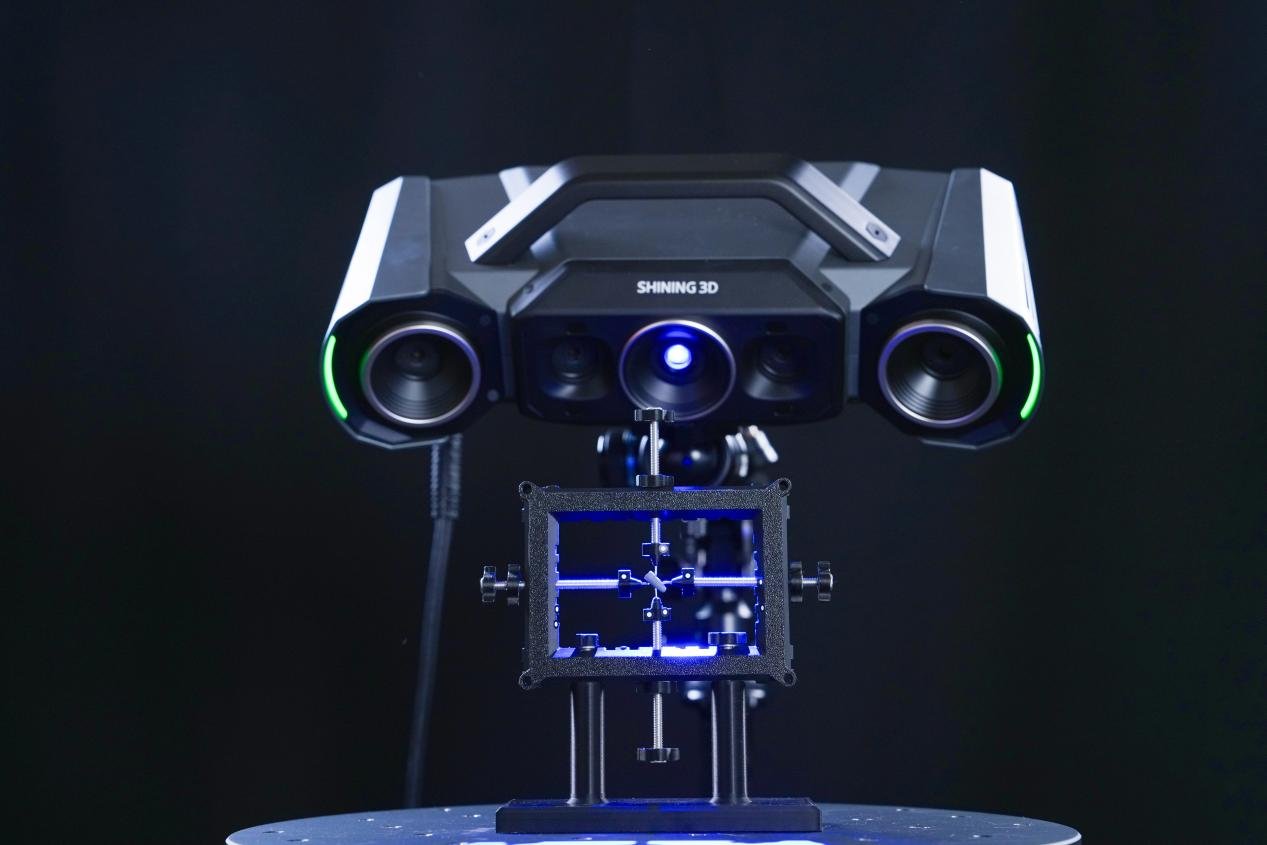

The OptimScan Q series is four fixed fringe projection 3D scanners designed for precision industrial measurement. They project structured blue light patterns onto a surface and capture the deformation with high-resolution industrial cameras to reconstruct geometry. Because scanner and part both stay still, this class holds the tightest published accuracy figures — useful as a reference point even if your own parts do not need it.

Published specifications

Key features

• Metrology-grade accuracy. The Q12 HD reaches 0.004 mm in small-range measurement, aimed at micro and small precision parts.
• Dual scan range. Two sets of high-definition cameras — four in total — allow single-click switching between scanning modes with seamless data merging.
• Monocular-stereo fusion (MSF). Proprietary technology that improves data capture in deep holes, sharp edges, narrow slots and complex recessed structures, reducing the need to rescan from another angle.
• High-speed acquisition. Individual scans complete in under one second, which is what makes batch inspection of small parts practical.

Applications by industry

Civil aviation — turbine blades and blisks, precision machined structural components, compressor and impeller blades.

Electronics manufacturing — electrical connectors, electronic housings, injection-moulded structural parts, camera brackets and frame components, earbud cases and micro-holes.

Medical device manufacturing — orthopaedic implants, dental implant components and surgical instruments, where non-contact inspection prevents surface damage.

Mould, tooling and precision manufacturing — injection moulds, precision inserts, mould wear analysis and machining verification.

Cultural heritage — stone sculptures and carvings, coins and medals, seals and inscriptions, and oracle bone documentation.

Quality inspection has become more complex as products have. No single measurement technology is suitable for every inspection task, so the useful question is not "which is best" but which solution fits the requirement in front of you.

Four approaches, and where each stops

What the metrology-grade category adds

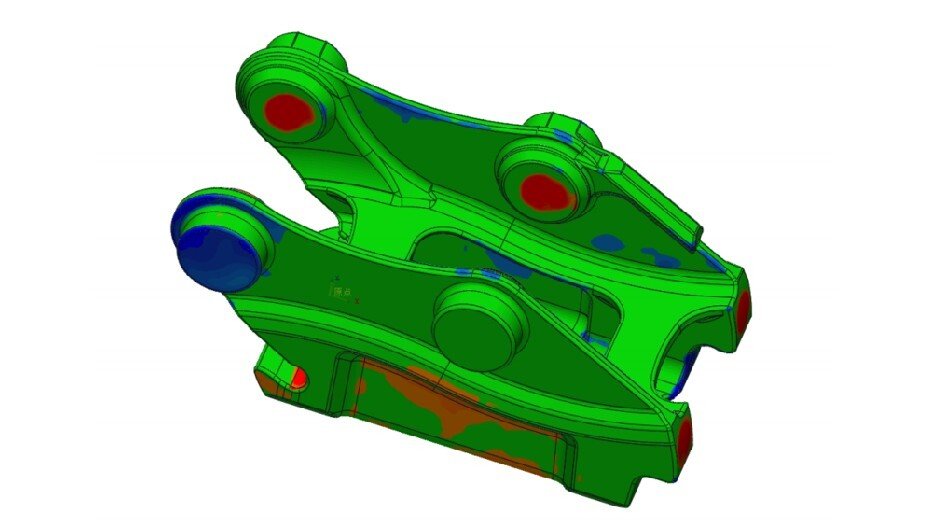

A metrology 3D scanner captures millions of data points in seconds. Overlaid with the CAD model, that data produces an instant, highly intuitive colour map that shows deviation across the whole surface rather than at the handful of points somebody nominated from a drawing.

How can you trust the data?

Global certification and ISO traceability. ISO 10360-13 is the globally recognised standard for optical fringe projection 3D scanners, replacing Germany's VDI/VDE 2634 in that role. Systems calibrated within ISO/IEC 17025-accredited environments carry globally recognised metrological traceability.

Proven volumetric precision. Acceptance testing includes measuring the distance between reference spheres — ball centre testing — to evaluate volumetric accuracy. On the OptimScan Q12 this means capturing data from near, middle and far distances, and with the scanning head tilted to the extreme left and right, demonstrating that deviation stays at the microscopic level across the working volume.

Where metrology 3D scanners deliver value

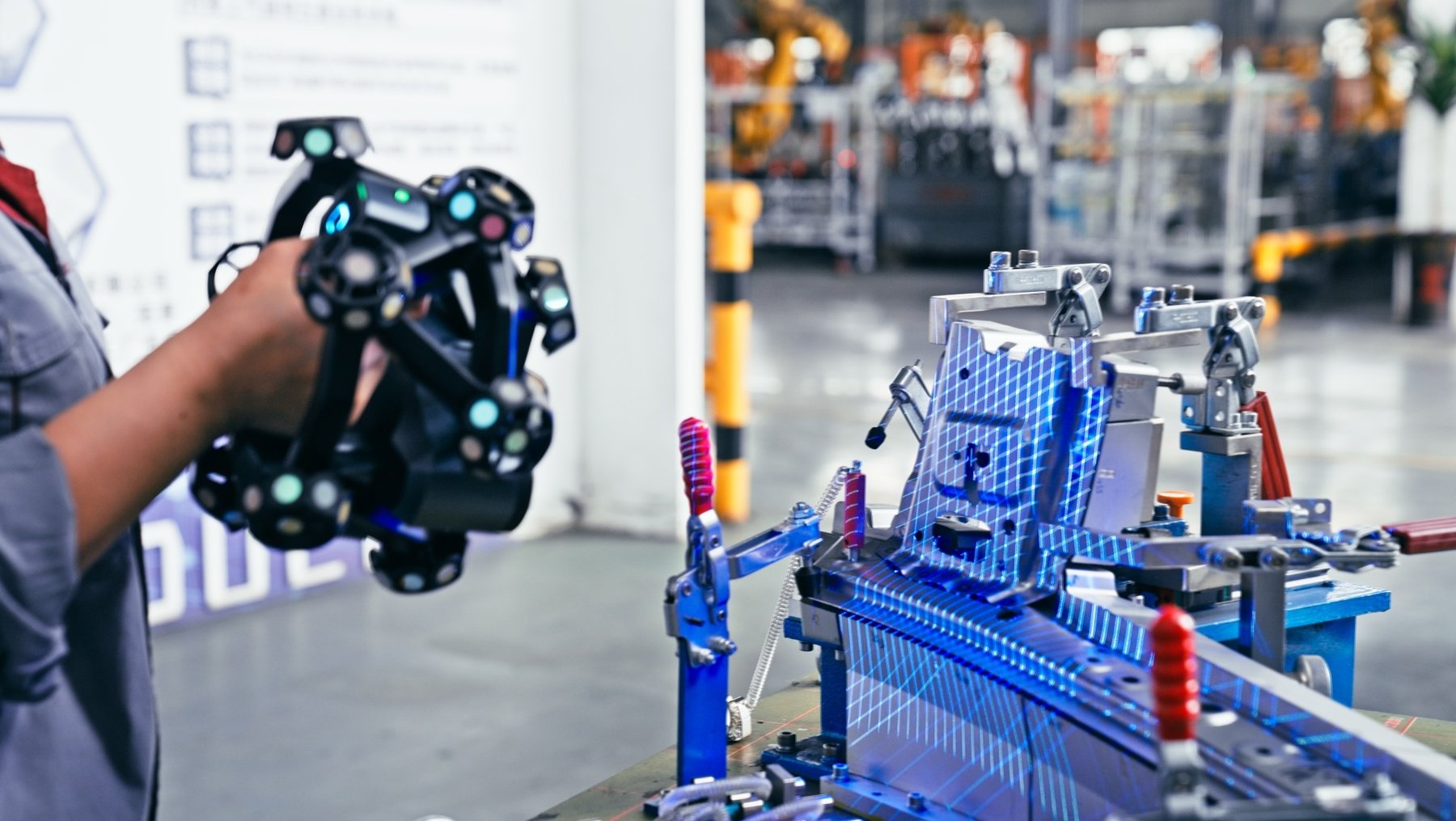

• Automotive — inspect body panels, castings, battery housings, stamping parts and powertrain components throughout development and production.
• Tooling & mould — evaluate mould wear, verify machining quality, compare manufactured tools against CAD data, and support preventive maintenance.

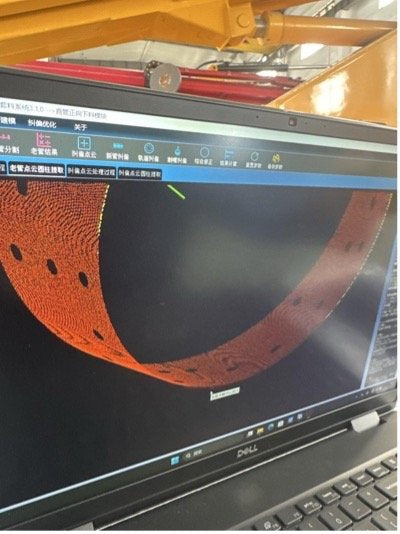

• Power and energy — support inspection of valves, pipelines, turbine components and other critical infrastructure through manufacturing and maintenance.
• Civil aviation — capture complex turbine blades, composite structures, precision castings and engine components, supporting maintenance and dimensional verification.
• Engineering machinery — inspect large welded structures, castings and machined assemblies directly within the manufacturing environment.
• Consumer electronics — verify precision housings, connectors, injection-moulded parts and miniature assemblies where dimensional consistency directly affects product quality.

The practical difference in one line: a 3D scanner captures the full shape quickly; a CMM measures selected points very precisely.

Definitions

3D scanner. A measurement tool that captures an object's shape and converts it into a digital 3D model or point cloud. Depending on the type it uses laser lines or LED structured light to collect surface data. It "sees" the outside of a part and records thousands or millions of surface points rapidly.

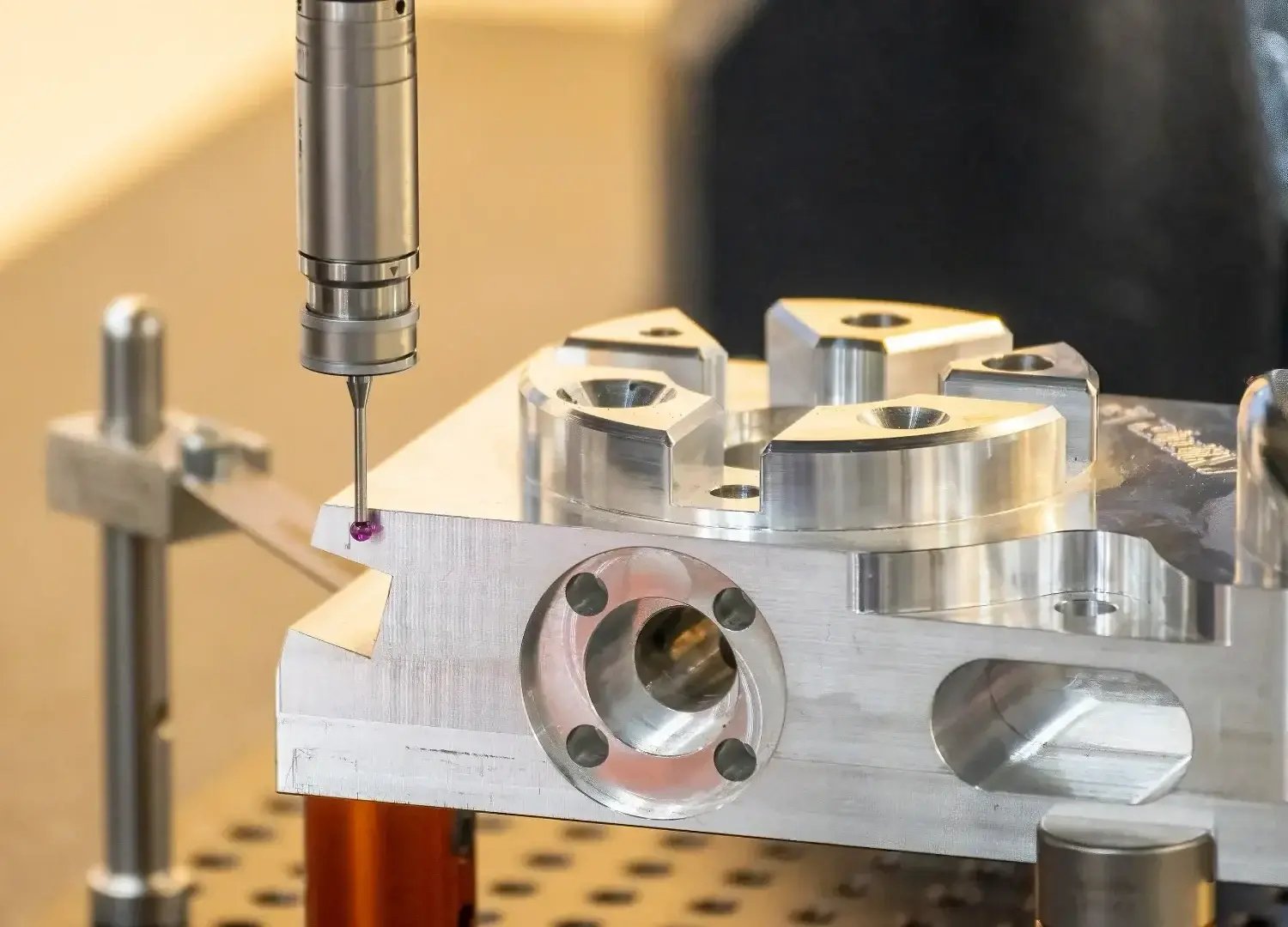

CMM (coordinate measuring machine). A precision inspection system that measures points in 3D space. Traditional CMMs use a probe that physically touches the part to collect exact coordinate data, though some modern systems use optical or scanning probes. They are typically found in quality laboratories or inspection rooms for high-accuracy, repeatable measurement.

Why 3D scanners get called "portable CMMs"

A 3D scanner is sometimes called a portable CMM because it performs coordinate-based measurement outside the traditional inspection laboratory. Like a CMM it measures objects in 3D space and compares results to CAD data. The "portable" part reflects being able to take the scanner to the part rather than bringing the part to a stationary machine.

That said, a 3D scanner is not always a direct replacement for a traditional CMM. The systems can differ in measurement uncertainty, traceability, probing capability, software workflow and suitability for tight tolerances.

When to use a 3D scanner

Use a scanner when speed, coverage and flexibility are the priorities:

• Capturing an entire part surface, not just specific points
• Parts with complex curves, freeform surfaces, cast geometry or organic shapes

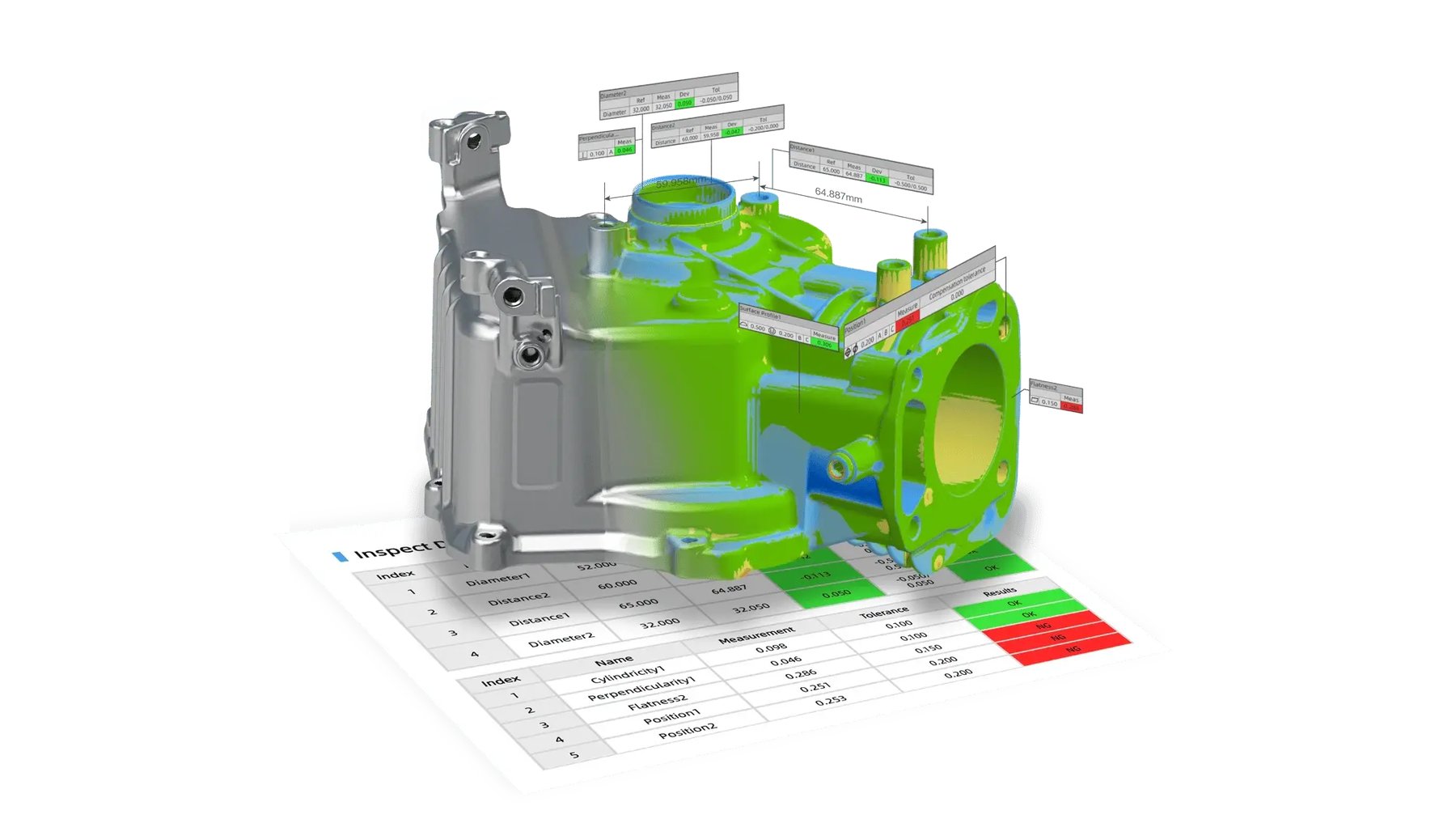

• Fast visual inspection against CAD models
• Parts too large or difficult to move to a CMM
• Measuring deformation, wear, dents or surface variation
• Creating digital records for future comparison

Example: checking moulded plastic housings, turbine blade shapes, castings or large fabricated assemblies, where a scanner provides faster and more complete inspection than point-by-point probing.

When to use a CMM

Use a CMM when controlled, high-confidence feature measurement is the priority:

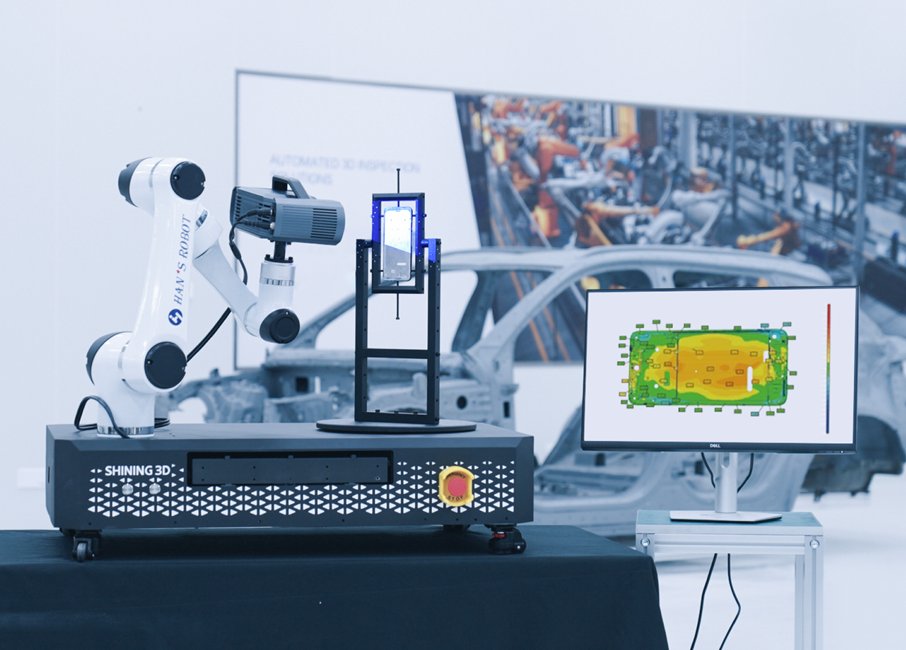

• Highly repeatable, automated inspection across large production volumes
• Measurements with low uncertainty under controlled environmental conditions
• Inspection workflows built on validated CMM programs and reporting standards

Example: certifying the true position of precision-machined holes on an aerospace component, or verifying critical dimensions for customer acceptance.

The integrated answer

For many manufacturers the best answer is not 3D scanner versus CMM. It is 3D scanner plus CMM. A scanner quickly identifies overall shape issues and highlights areas of concern; a CMM then verifies critical dimensions with a highly controlled measurement process. The combined workflow reduces inspection time, improves visibility and supports better decisions.

Common questions

Is a 3D scanner a CMM? Not exactly. It can perform coordinate-based measurement, earning the "portable CMM" description, but it uses different measurement methods and may not replace a traditional CMM for every inspection task.

Is a CMM more accurate? Often yes, for tight-tolerance feature inspection. But accuracy depends on the equipment, environment, part geometry, measurement plan and required tolerance.

What are the best scanner uses in manufacturing? Reverse engineering, part-to-CAD comparison, surface deviation analysis, tooling inspection, prototype validation, and documenting large or complex parts.

Which should we buy first? If you mainly inspect complex surfaces, large parts, or need reverse engineering, start with a 3D scanner. If you mainly inspect precision-machined features with tight tolerances, start with a CMM. If both matter, plan a workflow that uses the two together.

Choosing a metrology 3D scanner is less about selecting the most advanced system and more about finding the right fit for a specific task. Rather than asking "which scanner is best?", ask what problem you are solving and what constraints define the application.

Step 1 — determine object size

Small parts, under 500 mm. These need systems that can capture intricate internal cavities and fine geometry.

• Casting housing — 100–300 mm
• Lamp components — 50–200 mm
• Small mechanical parts — 20–120 mm
• Plastic clips and connectors — 10–100 mm

Medium to large components, 500–2500 mm. Assemblies with complex surfaces, multiple textures and large curved areas.

• Medium sand casting parts — 500–1000 mm
• Car gearbox — 500–800 mm
• Car seat — 600–1500 mm
• Bumper — 1200–2500 mm

Extra large structures, over 2500 mm. Massive components that require an expansive tracking volume.

• Car fixture — 2500–5000 mm
• Battery tray — 2000–3000 mm
• Aero-engine casing — 2500–4500 mm
• Wind turbine hub — 3000–5000 mm

Step 2 — define the accuracy requirement

Three tiers, aligned to VDI/VDE 2634 and ISO 10360:

Step 3 — the special factors

Wireless and standalone capability. On complex shop floors or elevated platforms, cables create hazards. Scanners with wireless capability and standalone processing optimise workflow efficiency and remove a real safety problem.

Marker-free operation. Where applying markers is impractical or would damage the surface, dynamic tracking systems use optical trackers to determine spatial position without them, drastically reducing preparation time.

Material adaptability.

• Dark or highly reflective surfaces — handheld scanners with blue laser and infrared light sources work without spray.
• Exceptionally small parts with micro-details — blue structured light scanners are required, even with surface preparation.
• Deep holes and narrow gaps — pair a tracking system with a portable probe to reach what optics cannot see.
• Time-sensitive large components — handheld or tracking scanners enable marker-free, fast scanning.

Worked example 1 — mobile phone shell inspection

Characteristics: extremely small and thin, with complex snap-fits and micro installation holes; highly reflective metals or black composite materials.

Requirements: high accuracy, high resolution for microscopic features, and a non-destructive workflow.

Recommendation: the OptimScan Q series, with the FreeScan handheld series as a spray-free alternative. High accuracy (0.005 mm) with blue structured light; the MSF function enables capture at tight angles and in narrow gaps; 12.3 MP cameras suit tiny edges and holes.

Worked example 2 — pipeline integrity assessment

Characteristics: medium-to-large structures in complex, narrow, outdoor or industrial field environments, with corrosion, rust or coating on the surface.

Requirements: efficient large-area scanning, flexible marker-free and wireless operation, and enough fidelity to capture surface degradation detail.

Recommendation: the FreeScan Omni series. Fully wireless operation eliminates tripping hazards; damage depth and shape are captured with repeatable accuracy; integrated inspection software supports decisions on site rather than back at a desk.

Worked example 3 — clay model reverse engineering

Characteristics: large-scale, exceeding 2500 mm; smooth organic surfaces with subtle curvature transitions; extremely fragile clay.

Requirements: full-field scanning, non-contact measurement, marker-free operation and smooth continuous surface data.

Recommendation: the FreeScan Trak series. Marker-free scanning protects the clay; wireless operation and dynamic tracking keep accuracy uniform and eliminate frequent repositioning; well suited to full-surface scanning.

Three factors drive the decision: industry requirements, accuracy needs and budget. Applications span manufacturing, automotive, aerospace, medical, cultural heritage and education.

Four core scanning technologies

1. Laser lines. Triangulation using laser beams projected as lines. Ideal for industrial inspection, handling dark or reflective surfaces with ease, and offering metrology-grade accuracy for quality control.
2. Fringe pattern. Projects pre-designed stripe patterns onto surfaces. Best for small-to-medium objects with complex features, though strong ambient light can disrupt results.
3. Speckle pattern. Random dot projection analysed by multiple cameras. Strong adaptability to ambient light, requires no target markers, and can operate without visible light.
4. Photogrammetry. Reconstructs 3D models from multiple 2D images taken at different angles. Best for large-scale object modelling.

Industrial quality control

Sectors: heavy industry, civil aviation, automotive, oil and gas.

What the application demands:

• Metrology-grade accuracy, with VDI/VDE 2634 certification as the reference standard
• Large scanning range for structures
• Strong environmental adaptability for harsh conditions
• High resolution for detecting minute defects
• Integrated video photogrammetry for volumetric accuracy

Heavy industry and civil aviation use it for large structure inspection; automotive for dimensional accuracy and assembly precision; oil and gas for pipeline and pressure vessel inspection. Example systems: the FreeScan Combo laser scanner; FreeScan Trio for automotive; FreeScan UE for pipeline corrosion analysis.

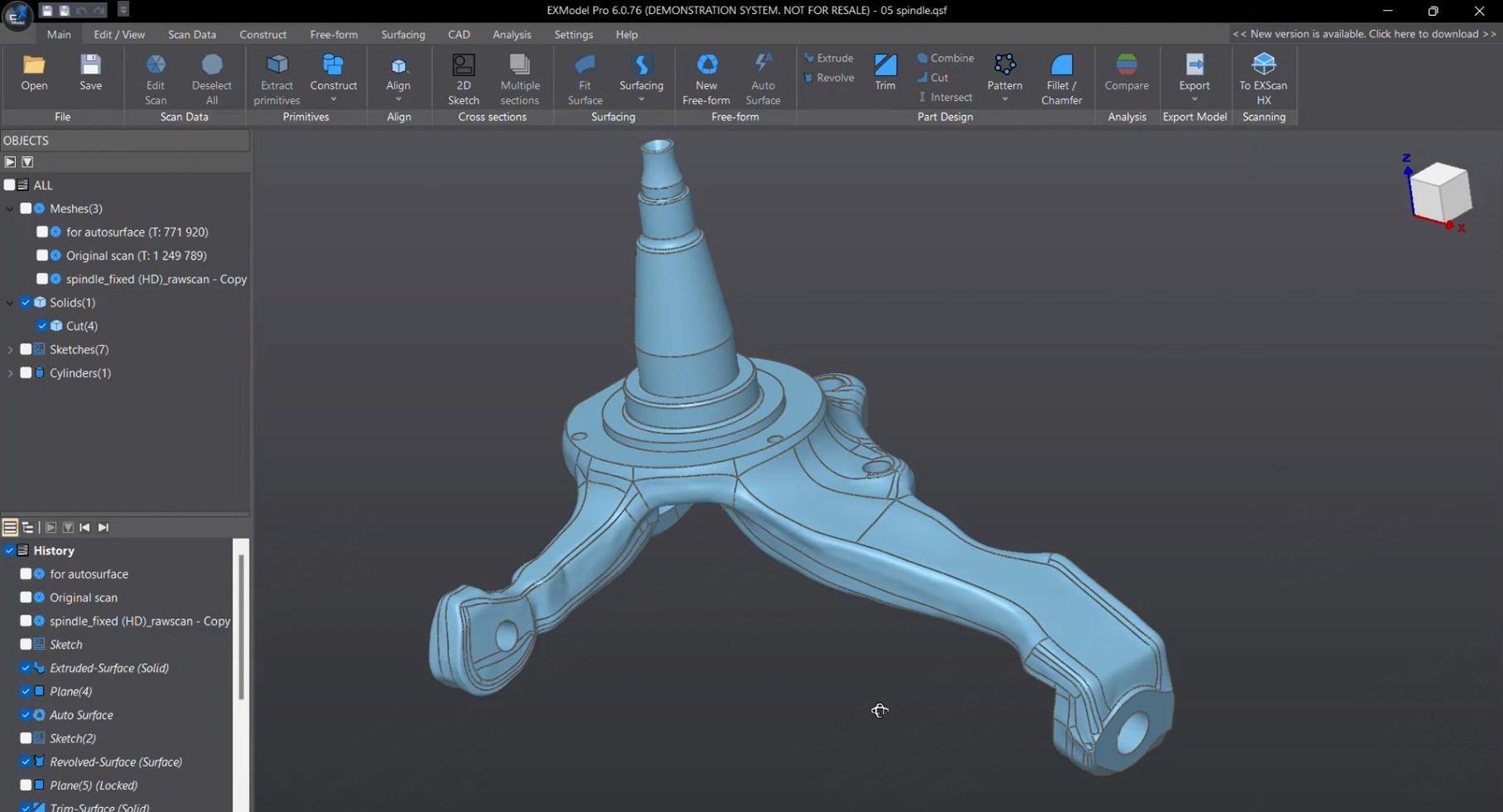

Reverse engineering and product design

Sectors: healthcare, art, design, cultural heritage.

• High accuracy — typically better than 0.1 mm
• Multi-functional scanning modes for varied materials
• Portability for on-site heritage preservation
• High resolution and colour texture capture for authentic replication

In healthcare, 3D scanning captures human body shapes for prosthetics, orthotics and surgical planning. In art and design it digitises sculptures and installations. In cultural heritage it preserves artefacts with intricate detail — the source material cites an EinScan H used for patient arm scanning, and projects documenting sculptures and Etruscan sarcophagi.

Digital twins and virtual duplication

Sectors: education, AR/VR, 3D printing.

• Colourful texture capture for realism
• User-friendly operation for non-technical users
• Detailed surface resolution

Education digitises real-world objects for teaching demonstrations, research and interactive learning. AR/VR creates immersive environments with high-fidelity models. 3D printing uses detailed digital models to ensure printed objects resemble the originals.

Budget guidance

Call us for Australian pricing on a specific configuration — these are the manufacturer's indicative international bands, not a quote.

Software compatibility

• Industrial quality control — PolyWorks, GOM Inspect, Geomagic Control X
• Reverse engineering and design — Geomagic Design X, SolidWorks, Autodesk Fusion 360
• Virtual duplication — Unreal Engine, ZBrush

Industrial 3D scanners have become closer to critical infrastructure than to simple measurement tools. The things that separate a flagship from an entry-level metrology scanner are mostly not the numbers on the front of the brochure.

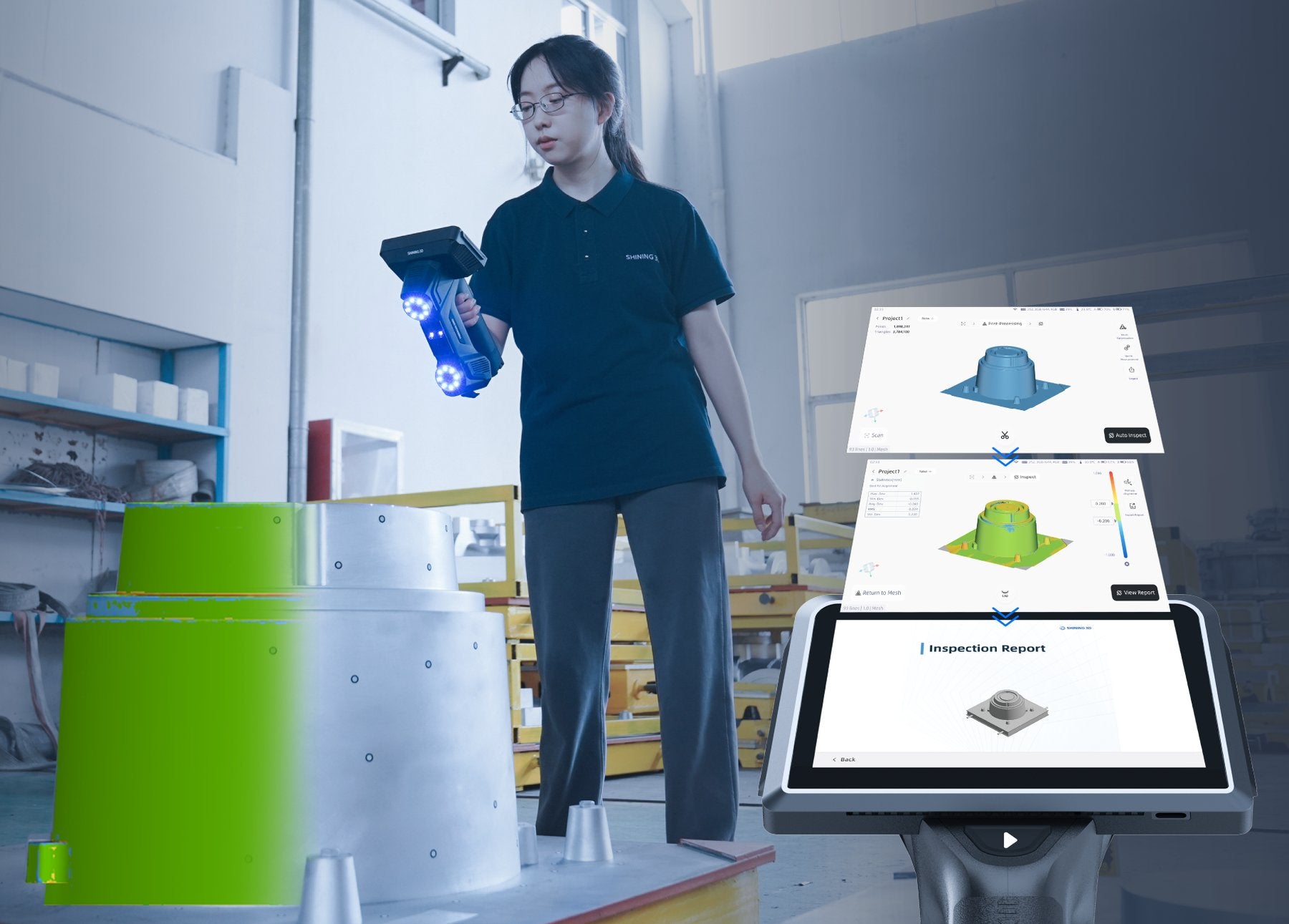

On-device inspection

The primary distinction is on-device inspection capability. Top-tier industrial scanners are no longer just data collectors; they are intelligent terminals with edge computing power, able to process point clouds and run quality assessments in real time directly on the device. That reduces dependence on an external workstation, and it changes where the decision gets made.

Wireless architecture for large, immobile objects

For aerospace components, heavy castings and large moulds, wireless capability is essential rather than convenient. True wireless scanning should be a hard requirement for these applications, because it is what allows safe navigation around the part without compromising inspection coverage.

Scan accuracy and metrology

Single-shot versus volumetric accuracy. Manufacturers often highlight single-shot accuracy metrics. For large parts, volumetric accuracy is the better determinant of overall assembly quality.

VDI/VDE 2634 certification. Any system claiming to be metrology-grade must provide a third-party calibration certificate based on international standards. This is not a formality — it is what makes the number defensible.

Two procurement traps

Closed systems and fragmented hardware lines. Historically, organisations purchased separate hardware systems for different applications — metrology, high-volume scanning, reverse engineering — and maintained multiple portals to run them. The better strategy favours modular software with product tiering: a unified hardware architecture paired with modular software options, so equipment scales with the business rather than multiplying.

The time cost of data cleaning. Inferior scanners produce substantial noise, which requires extensive manual point cloud cleaning. If engineers have to spend hours every day manually cleaning redundant point clouds, the hidden labour cost quickly exceeds the price difference between systems. Intelligent environmental adaptation and advanced material-handling algorithms are a long-term investment, not a luxury.

Controlling quality issues in factory environments

Three strategies address the deviations that come from human and environmental variables:

• Dynamic referencing. High-end systems correct the coordinate system in real time using positioning targets, accommodating workpiece shifts and floor vibration.
• Powderless scanning. Modern multi-line blue laser technology captures high-quality data from machined metal and pure black injection-moulded parts without scanning spray, keeping the shop floor clean.
• Standardised inspection workflows. Software-guided workflows from calibration through to First Article Inspection report generation minimise operator dependency.

The comparison checklist

3D scanning efficiency covers the complete project timeline: total project time = setup + data capture + processing. Rather than focusing on scanner speed alone, evaluate how each factor contributes to reducing overall time.

1. Setup time and tracking performance

Traditional scanning often requires dozens or even hundreds of markers on the part to establish tracking references. For large objects such as vehicle bodies, marker placement can take longer than the actual scanning.

Dynamic tracking systems eliminate or dramatically reduce that requirement, so operators can begin collecting data sooner. Stable tracking also prevents scan interruptions, position loss, incomplete data capture and the rescans that follow — and it lets the operator move freely around a complex object while acquisition continues.

2. Resolution and point distance

Resolution determines the level of detail captured. Point distance refers to the spacing between 3D data points. Higher resolution generates larger datasets, which increases processing and storage demand. Choose a resolution that matches the inspection tolerance and application requirement rather than the maximum the hardware allows.

3. Scanning speed

For handheld and tracking scanners, speed is measured in points captured per second — the FreeScan Omni is quoted at 7,619,000 points/s. For fixed fringe projection scanners it is measured as single scan time — the OptimScan Q12 HD completes a scan in less than one second. Faster acquisition directly reduces digitisation time for large parts and complex geometry.

4. Field of view

Field of view is the viewable area from a given distance. A larger field means faster coverage of large objects, fewer scanning passes, less alignment effort and better operator efficiency. The FreeScan Trak Nova offers a maximum FOV of 2.6 × 2.2 m with flexible options for different conditions.

There is a trade-off: larger fields of view may sacrifice fine-detail capture. Systems that switch between large-area and high-detail modes avoid having to choose once and live with it.

5. Software processing efficiency

Data acquisition is only part of the workflow. Engineers frequently spend more time processing than collecting. Advanced software streamlines both stages through intelligent automation:

• Real-time mesh generation
• Data quality visualisation
• Noise removal
• Hole filling
• Flexible data export

6. Choosing the right scanner in the first place

Selecting the appropriate technology for the object size and application has a large effect on efficiency. An unsuitable scanner increases scanning time, forces rescans and complicates data processing.

In electronics, small precision components need scanners with a small field of view, small point distance and high accuracy to capture intricate details and tiny features. At the other end, aircraft wings, mining equipment and ship propellers require a large scanning area and reliable metrology-grade accuracy.

Selection considerations: object dimensions, required accuracy, feature complexity, industry-specific demands, and whether the goal is inspection or reverse engineering.

These are written for construction machinery manufacturers, but the pattern holds anywhere parts got complicated faster than the measuring equipment did.

1. Part complexity exceeds traditional measurement capability

Complex geometries — compound curves, deep cavities, tight tolerances in large castings and welded frames — cannot be reliably captured with handheld calipers or fixed gauges. When quality teams spend extensive hours on manual measurement and still miss deviations, the geometry has outgrown point-based tooling. Metrology-grade 3D scanners capture millions of data points across entire surfaces quickly, identifying deviations that traditional methods overlook.

2. Inspection creates production bottlenecks

Traditional inspection requires extensive setup, measurement and analysis time per part. As inspection queues grow, downstream production stalls behind them. 3D scanners streamline the whole workflow from scanning to inspection, letting operators complete inspections in minutes rather than hours, which shortens queues and increases throughput.

3. Heavy component handling introduces risk

Components weighing hundreds or thousands of kilograms face damage risk when transported to a CMM inspection station. Handheld metrology scanners enable on-site inspection without relocating large parts, which reduces crane lifts, minimises surface contact damage and protects the investment already in the part.

4. Customer returns and assembly failures increase

Misaligned mounting points and component interference at customer sites often trace back to undetected dimensional drift during manufacture. Full-field 3D inspection captures the complete geometry of each part rather than sample points, detecting deviation before shipment and reducing warranty claims.

5. Supplier component verification is inadequate

Incoming castings and machined blanks from external suppliers arrive with dimensional variation that is invisible during receiving inspection. A portable 3D metrology system enables rapid first-article inspection, flagging non-conforming parts immediately rather than discovering the problem downstream during assembly.

6. Documentation cannot support traceability requirements

OEM customers and regulators increasingly demand dimensional records traceable to calibrated standards. 3D inspection software generates digital deviation reports with colour maps, GD&T analysis and archived scan data, providing audit-ready documentation rather than approximate spot-check records.

Published expectations

• Industrial metrology scanners achieve single-point accuracy of 0.02–0.025 mm under controlled conditions
• A typical large casting or frame inspection requires one to three hours for complete coverage
• Reported ROI: a 40–60% reduction in inspection time, with significant rework cost decreases

3D inspection is a non-contact, high-precision measurement method that captures the full geometry of a physical object using 3D scanning and compares it against the original CAD model, identifying dimensional deviation, assembly defects, warpage and deformation.

Why manufacturers are adopting it

• Heightened precision manufacturing demands
• Stricter quality and compliance mandates
• Widespread CAD/CAM and digital twin adoption
• Smart factory initiatives
• Accelerated inspection cycle requirements
• Demand for complete digital traceability

Advantages over traditional methods

Full-field measurement. Traditional contact instruments measure a limited number of surface points. 3D inspection systems analyse millions of captured data points simultaneously, which particularly benefits parts with freeform surfaces or intricate internal geometry.

Speed. CMM inspection demands extensive programming and manual operator intervention. 3D scanning digitises components within minutes — even large or intricately detailed ones — with automated scan-to-CAD comparison.

Non-contact and non-destructive. Optical scanning with laser or structured light eliminates physical contact, preserving material integrity on delicate substances: rubber, silicone, thin plastics, foam, textiles and medical devices.

Digital documentation and traceability. Automated report generation and traceable 3D measurement data replace manual recording, supporting long-term quality tracking.

Direct CAD comparison and GD&T analysis. Automated deviation analysis and tolerance verification remove the manual measurement of dimensions listed on 2D drawings — a process prone to human error.

The inspection workflow

Automotive

Tool and mould lifecycle assessment monitors wear and deformation, extending tool life and keeping quality consistent. Stamping and plastic part quality control uses full-field surface analysis to detect warpage, shrinkage and dimensional deviation rapidly. Assembly positioning uses high-accuracy measurement to ensure correct fit and alignment of panels, doors and structural components. In new energy vehicles this extends to battery system safety and wear defect evaluation, and electric motor and control electronics inspection. In the aftermarket, damage assessment supports repair verification.

Civil aviation

Engine blade quality control uses high-precision scanning to verify blade geometry, edge thickness and surface integrity. In MRO, non-contact rapid inspection detects dimensional deformation of casings, combustors and turbines, dents, and alignment issues.

Consumer electronics

Quality assurance spans surface geometric tolerance inspection of structural components through to internal part assembly verification, covering all manufacturing stages. Integration with robotic systems enables full inspection rather than sampling, which improves quality traceability and production efficiency. Examples include laptop case structural verification and smartphone curved glass panel inspection.

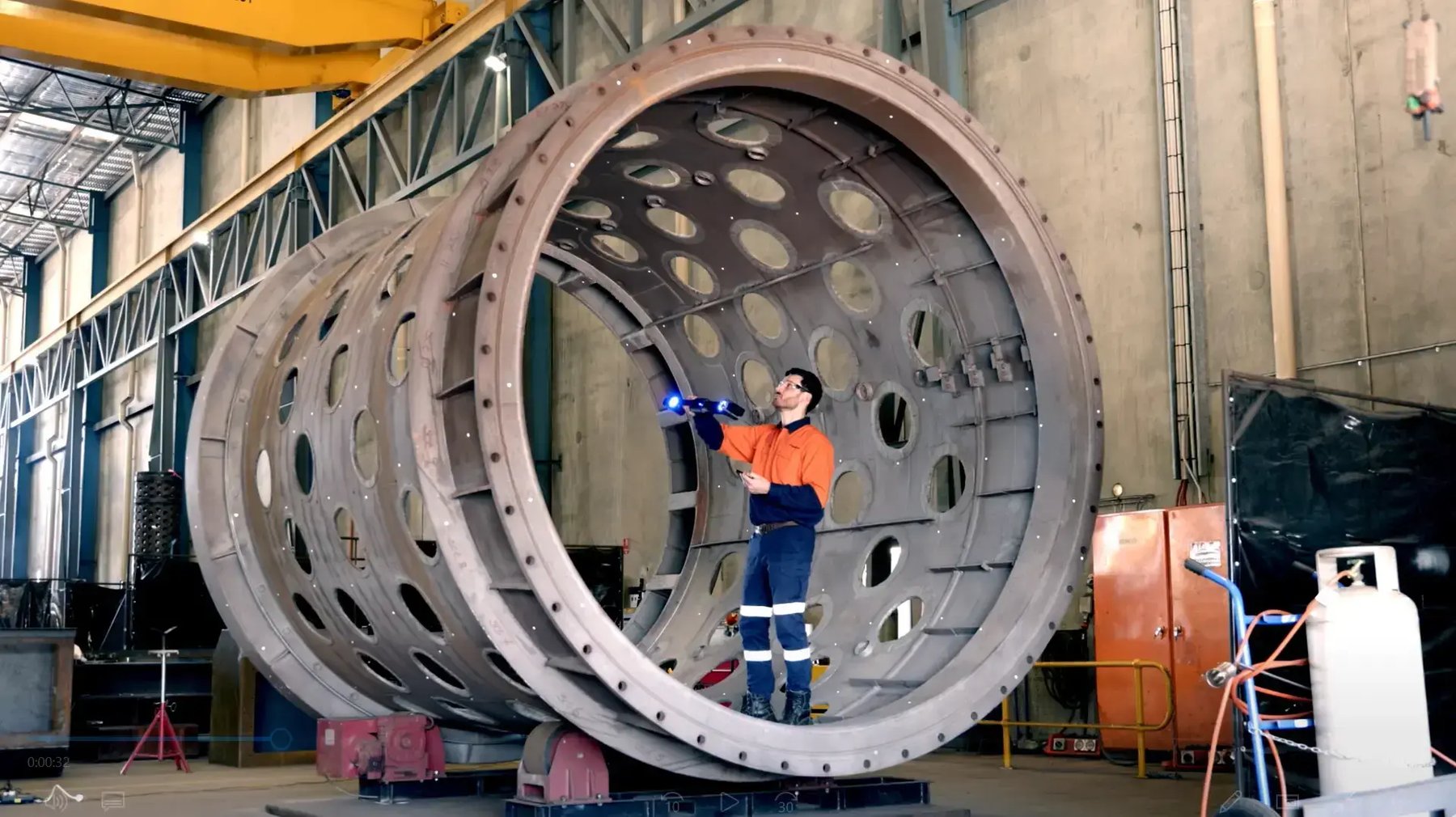

Engineering machinery

Manufacturers of ultra-large equipment build a 3D quality control system spanning raw material supply, vehicle manufacturing and operational maintenance. In manufacturing that covers dimensional quality control of cast and forged parts, geometric and dimensional accuracy verification of metal sheets, and inspection of high-strength fasteners and connectors. In assembly it covers supplier quality assurance, machining deviation control of large components, and welding and assembly accuracy. In maintenance it quantifies seal ageing and structural deformation for rapid issue identification.

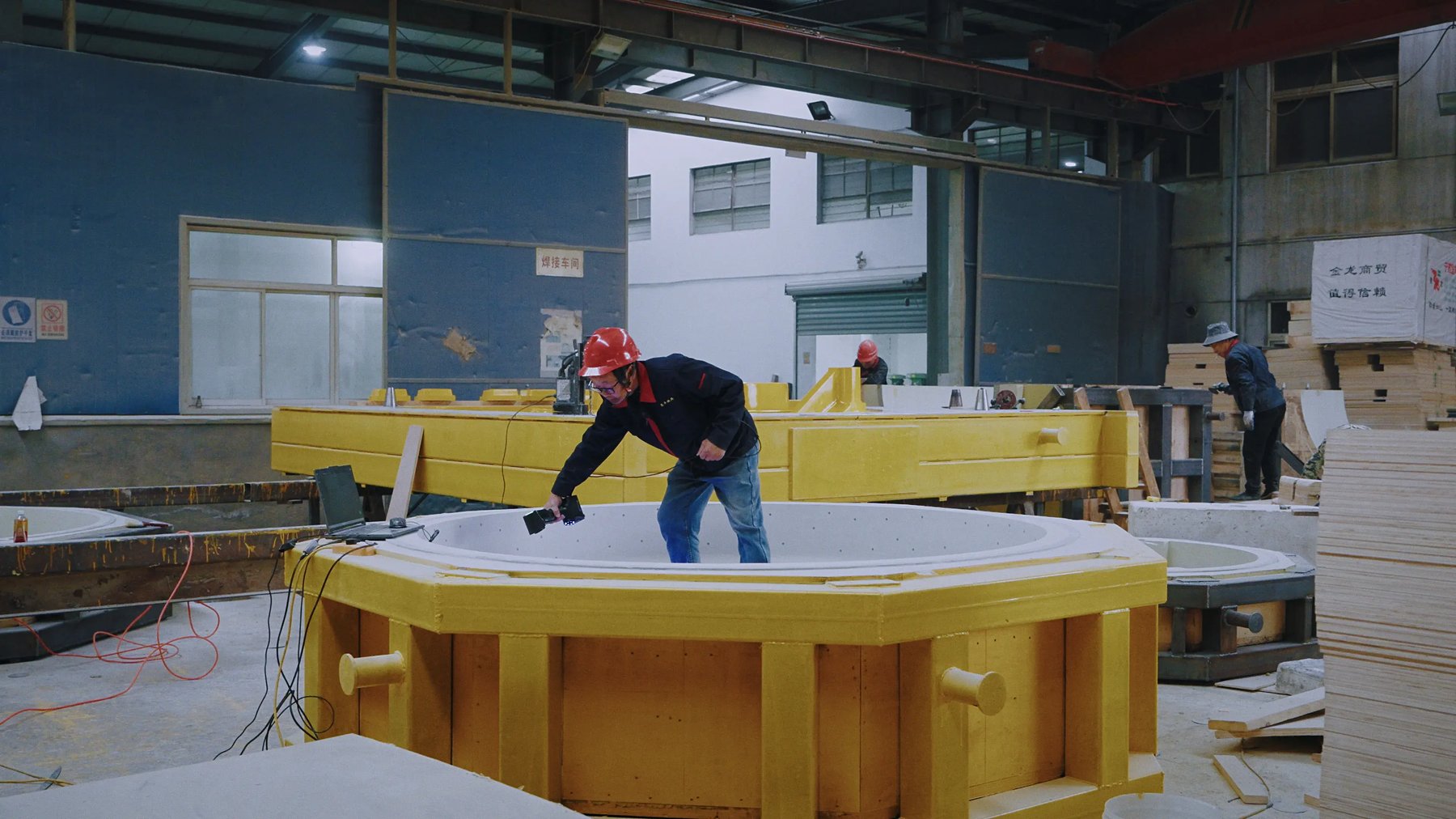

Tool and mould manufacturing

3D scanning enables high-accuracy full-field mould databases supporting design validation, process optimisation, quality control and maintenance decisions. In CNC machining this covers machining allowance analysis, datum alignment verification and milling tool path validation. In inspection it covers full geometry verification, material thickness analysis, automated inspection, and flush and gap evaluation.

Power and energy

In wind energy: blade moulding quality control, drivetrain assembly verification and tower construction accuracy, with on-site scanning enabling real-time assessment. In gas turbine energy it provides a fully digitalised quality control loop across the lifecycle of compressors, turbines and combustion chambers, supporting aerodynamic optimisation and structural innovation.

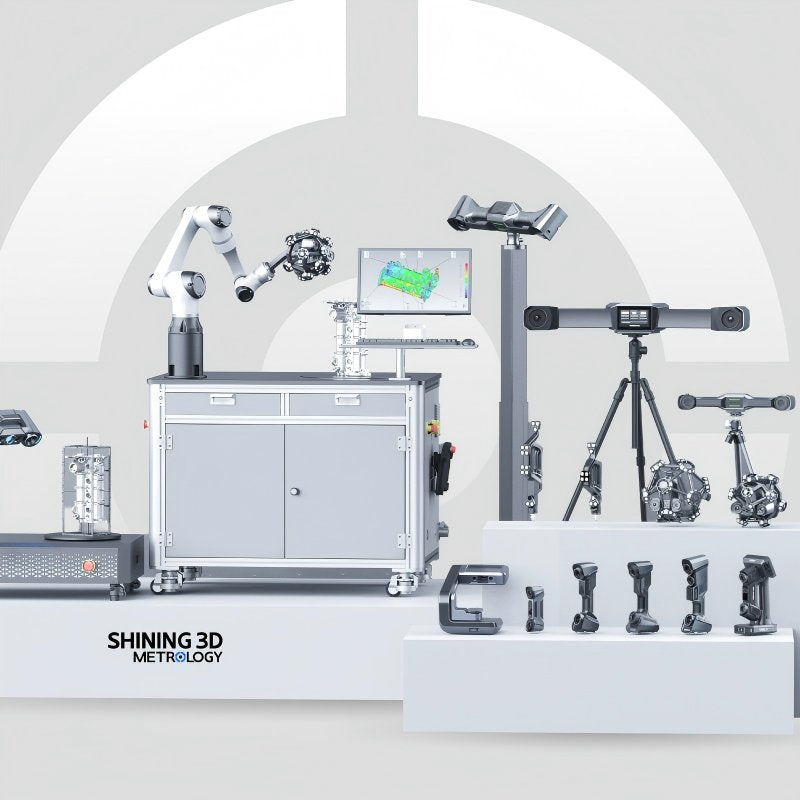

Hardware and software

Handheld 3D scanners — portable, high-accuracy, with laser and hybrid light sources, delivering reliable results on reflective, dark or irregular surfaces. Optical measuring and dynamic tracking systems — for real-time, marker-free measurement and tracking of large objects, suited to assembly verification and structural deformation analysis. High-precision inspection systems — for applications demanding extreme accuracy and consistent, high-resolution data.

SHINING 3D scanners integrate with SHINING3D Inspect and PolyWorks Inspector, so data processing, measurement and report generation can be built into an existing inspection workflow rather than run alongside it.

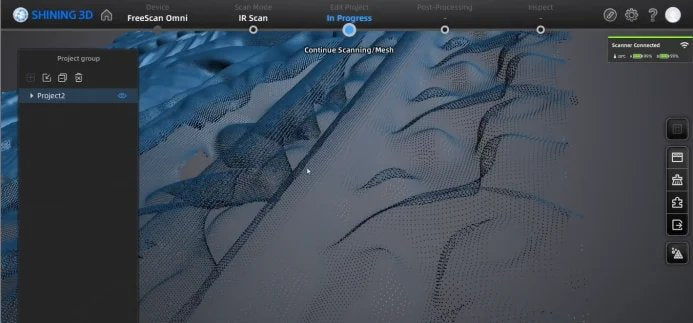

Metrology 3D scanners capture millions of data points per second to build a comprehensive digital representation of a physical object, letting manufacturers detect dimensional deviation across an entire part surface rather than at isolated measurement points.

What they are

High-precision measurement devices that capture the complete surface geometry of physical objects through full-field measurement. Modern systems use blue laser light and are certified against international standards including VDI/VDE 2634 Part 3 and ISO 10360. SHINING 3D maintains an ISO/IEC 17025-accredited laboratory where scanners undergo calibration verification.

Beyond point-based measurement

Traditional quality control — particularly with CMMs — focuses on predetermined measurement points. Modern manufacturing increasingly demands evaluation of freeform surfaces, complex geometries, large components and assemblies, and tight dimensional tolerances.

The comprehensive workflow is: scan → digitise → compare → analyse → report → improve. That enables earlier problem detection and standardised inspection procedures across production environments.

Dimensional inspection capabilities

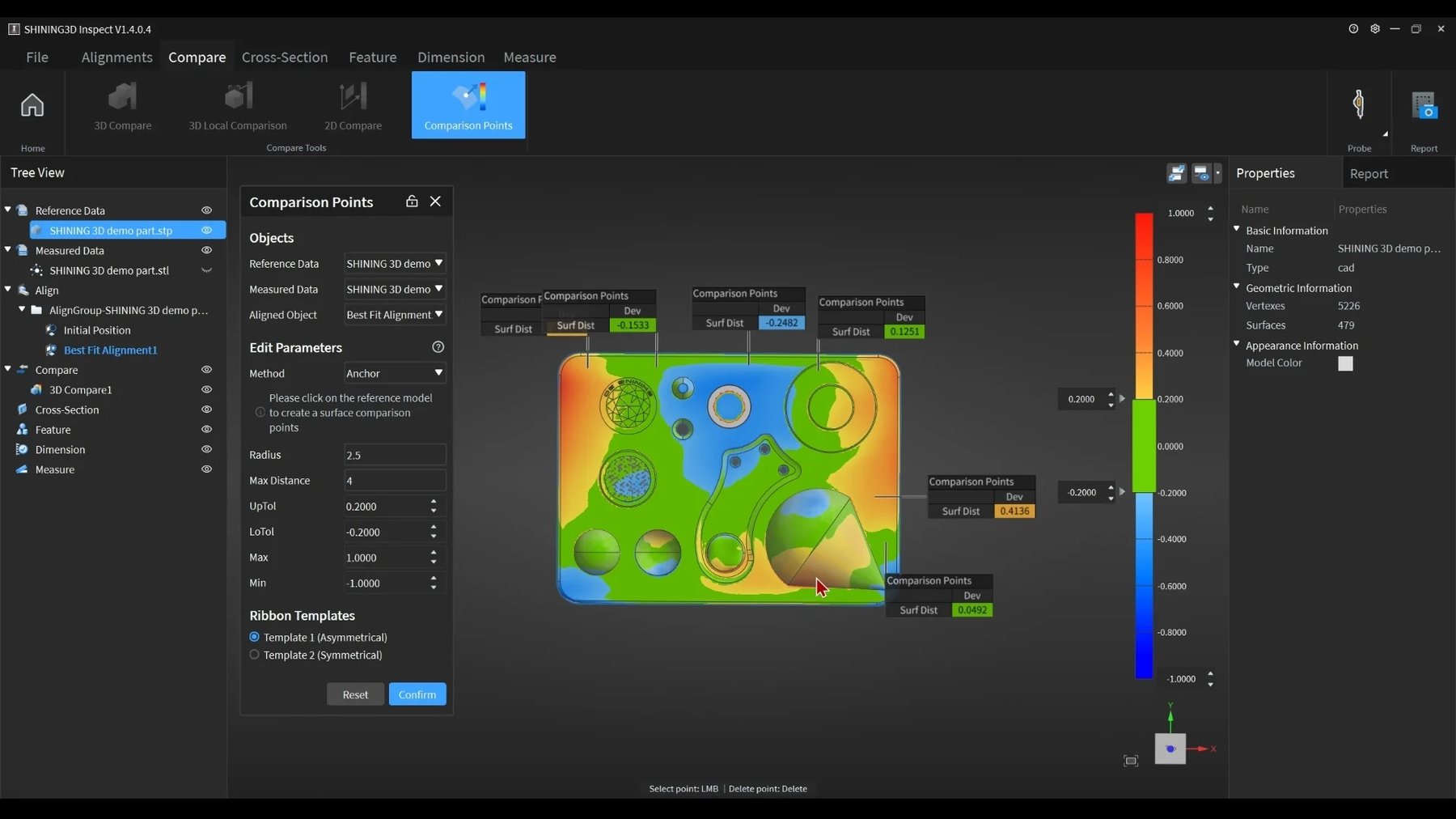

• CAD comparison and colour deviation maps
• Dimensional measurement
• Profile and surface deviation analysis
• GD&T evaluation
• Cross-section analysis
• Deformation analysis
• Automated inspection reports

This is particularly valuable for components with complex curves, freeform surfaces, numerous features or difficult-to-reach areas.

Complementary to CMM, not a replacement

3D scanning gives rapid full-surface inspection and broad geometric analysis. A CMM gives probe-based verification of specific critical features in a controlled environment. Many manufacturers use both as part of one inspection strategy.

Early deviation detection

In-process scanning lets manufacturers detect dimensional drift before large batches are completed, identify process changes while production continues, and reduce defective material, rework and production time. The loop is: in-process scan → detect deviation → adjust process → verify correction → continue production.

Standardised workflows for consistency

Measurement accuracy depends on operational procedure as well as scanner performance. Standardisation features include preset inspection templates, guided scanning workflows, repeatable alignment procedures, automated deviation analysis, standardised tolerance evaluation and automated reporting. Systems such as the FreeScan Omni series perform scanning and inspection directly on-device, supporting an integrated scan-to-inspect-to-report workflow.

Industry applications

Automotive — used throughout the production lifecycle for body panels, powertrain components and interior trim verification. Aerospace — the highest precision demands: turbine blades, structural components and aerodynamic surfaces. According to a 2025 metrology industry report cited by SHINING 3D, aerospace and automotive now represent the largest growth areas for industrial 3D scanning adoption. General manufacturing — tooling, energy and heavy machinery benefit wherever complex geometry verification, deformation detection or dimensional control is required.

Common questions

What accuracy is achievable? High-end metrology 3D scanners achieve 0.004 mm or better; the OptimScan Q12 HD delivers this.

Do they work on dark or shiny surfaces? Yes — blue laser technology handles dark, reflective and shiny surfaces without powder spray, and material adaptability modes address challenging finishes common on machined metal parts.

Do they integrate with a quality system? Inspection software exports data in standard formats compatible with quality management platforms; SHINING3D Inspect generates reports compatible with statistical process control systems.

How long does scanning take? Small-to-medium components typically complete full capture in 2–5 minutes, with automated inspection analysis adding seconds — significantly faster than manual CMM programming.

How much training is needed? Basic operations can be learned within one day; intuitive interfaces and guided workflows reduce the expertise barrier. Advanced applications benefit from additional training.

Standardisation means documented, repeatable procedures for measuring parts. The objective goes beyond uniform equipment: it is to ensure inspection results stay comparable and traceable across operators, shifts and facilities.

1. Define measurement requirements

Begin with the manufacturing need rather than with equipment selection. Document the critical features that affect product function, the applicable tolerances, industry or customer compliance requirements, the required GD&T characteristics, and the datum reference selections. This establishes the foundation before any procurement or procedure development.

2. Select appropriate equipment

Match technology to the application: component size, required accuracy, surface characteristics, geometry complexity, measurement range and portability needs. High-precision systems such as the OptimScan Q12 or Q9 HD suit small components; portable solutions such as the FreeScan Trak Nova suit larger parts; inspection-ready systems such as the FreeScan Omni suit shop-floor deployment.

3. Establish scanning procedures

Document the operational standards:

• Scanner settings
• Scan overlap specifications
• Surface preparation requirements
• Environmental conditions
• Part positioning methods
• Alignment procedures
• Datum selection protocols
• Registration requirements

Include specific procedures for dark, reflective or transparent surfaces, because that is where two operators most often diverge.

4. Create reusable inspection templates

Develop standardised templates within the inspection software defining which measurements to perform, the applicable tolerances, and how results are presented. SHINING3D Inspect supports GD&T evaluation with the ability to switch between ISO and ASME standards, which matters when different customers require different conventions.

5. Implement calibration schedules

Establish procedures based on equipment usage and operating conditions, recording calibration results and maintaining historical data so trends become visible before they become deviations. SHINING 3D systems undergo factory calibration in ISO/IEC 17025-accredited laboratories.

6. Train and qualify operators

Comprehensive training covers scanner operation, scanning methodology, part-specific measurement procedures, inspection software, GD&T fundamentals, workflow requirements and results interpretation. Documentation and competency tracking maintain consistency across shifts and locations.

Software and automation

Platforms such as SHINING3D Inspect, PolyWorks Inspector and Geomagic Control X provide CAD comparison, full-field deviation analysis, colour-mapped visualisation, cross-sectional analysis, GD&T evaluation, automated reporting and trend analysis.

Automation solutions integrate 3D scanning with robotic handling for high-volume environments, maintaining consistency across thousands of parts and enabling 100% inspection where sampling previously applied — which substantially reduces defect escape rates.

Where the cost savings come from

Scrap reduction through early detection. First article inspection identifies tooling and programming problems before production scales; in-process measurement enables earlier correction; statistical process control reveals gradual drift before specifications are violated.

Rework optimisation. Full-field scanning provides complete deviation patterns rather than limited measurement points, and post-rework verification confirms the correction worked, reducing repeated rework cycles. Scanning also supports reverse engineering for legacy components lacking usable CAD references.

Across multiple facilities

• Unified measurement system requirements, so capabilities are genuinely comparable
• Common calibration procedures with consistent reference standards
• Master procedures that prevent facility-specific workflow variation
• Inter-facility correlation using identical reference parts
• Centralised, cloud-based inspection data management

Reverse engineering — sometimes called back engineering — means analysing and reproducing a part by extracting design information from an existing object, then reconstructing it digitally.

Why people do it

• Optimising designs through competitor product analysis
• Recreating obsolete parts for industrial machinery or classic vehicles
• Repairing or replacing worn-out components
• Customising parts and accessories that must fit something already made

Manual methods versus 3D scanning

Traditional manual measurement with calipers or a CMM has three consistent limitations: low efficiency, because hand-measuring a complex part is time-consuming and labour-intensive; inaccuracy, because manual error and limited sampling points compromise dimensional fidelity; and poor adaptability, because freeform surfaces, organic shapes and hard-to-reach features are difficult to capture at all.

Modern scanners capture complete surface geometry quickly, accurately and without physical contact, which enables an efficient scan-to-CAD workflow suitable for worn components, curved surfaces and intricate assemblies.

The step-by-step process

Using the EinScan Libre as the example:

1. Scan the object. Surface geometry is captured within minutes with a wireless 3D scanner.
2. Generate a high-quality mesh. The point cloud is converted into a watertight mesh (STL). An on-board processor and touchscreen allow cleaning and refinement directly on the device.
3. Convert mesh to CAD. Integration with EXModel transforms mesh data into an editable parametric CAD model through a single-click operation, creating a streamlined scan-to-CAD workflow.
4. Analyse, optimise and manufacture. The CAD model lets engineers adjust dimensions for improved performance, perform stress analysis in CAE software, and export CAD-ready files for CNC machining, injection moulding or 3D printing.

The scan-to-CAD step is the one people underestimate. A mesh describes a surface; a CAD model carries dimensions, features and assembly relationships — which is what you need before you can change anything.

Software

EXModel functions as the bridge between 3D scanning and CAD modelling. As a dedicated scan-to-CAD solution it converts mesh data into editable CAD models, offers tools for generating professional-grade parametric models, is compatible with mainstream CAD platforms, and takes a one-click data transfer from the scanning software. EXModel is the basic bridge; EXModel Pro is the all-in-one reverse engineering package.

Common applications include bumper customisation, yacht design, mould optimisation where original CAD files are missing, heritage preservation and restoration, medical prosthetics design, and consumer electronics product development.

Across industries

Automotive. Rapid redesign, optimisation and reproduction of complex components — design improvement, aftermarket customisation, legacy part replacement and competitive benchmarking. Case examples include Blue Sky Rescue reverse engineering vehicle interiors with FreeScan Trak Pro2 and FreeScan Combo scanners to optimise layout and integrate custom equipment, and Spanish restoration specialist Juliá Automobile using a FreeScan Trak ProW on a 1995 Porsche 993.

Engineering machinery and transport. Supports MRO by enabling digital reconstruction of large, worn or undocumented components, reproducing obsolete parts without original drawings, optimising structural performance, reducing downtime and modernising legacy systems. Custom Marine Solutions adopted the wireless EinScan Libre for yacht accessory creation, scanning outdoors to produce better-fitting carpets and upholstery with less labour.

Energy, heavy industry and public utilities. Essential for asset lifecycle management — turbines, pipelines, valves and power-generation components can be digitised to assess wear, deformation and failure risk, supporting retrofit projects, performance optimisation and compliance verification while minimising costly shutdowns. GL Equipamentos, which specialises in reverse engineering mining equipment parts, moved from manual measurement and improved both accuracy and data collection time.

Electronic and electrical. Precise reconstruction of housings, connectors and internal structures supporting product redesign, miniaturisation and functional optimisation — product iteration, enclosure fitting, thermal management and compatibility testing.

Civil aviation. Supports inspection, repair and certification of high-value, safety-critical components. Scanning detects deformation, wear or manufacturing deviation, with reconstruction into precise CAD models for analysis and remanufacture. One MRO provider uses a FreeScan UE laser scanner to capture complex, non-standard engine parts and create digital blueprints for rapid, high-accuracy repair.

Medical and research. Enables highly accurate anatomical models and customised devices — patient-specific implants, prosthetics and surgical guides from scanned anatomical data. Lammert Scherer GmbH uses EinScan H2 and AccuFab L4K to streamline prosthetic design and improve patient comfort.

Cultural creation and art. Preservation, reproduction and transformation of physical artworks and artefacts. High-resolution scanning allows artists to modify, scale or replicate sculptures and handcrafted objects while preserving original detail. One project used high-precision scanning to preserve ancient oracle bones, capturing inscriptions and enabling digital rubbings.

Research and education. A teaching tool for design principles, manufacturing processes and engineering analysis — students convert real-world objects into digital models for simulation, redesign and performance evaluation. Dr Fernando Novas and Prof. Marcelo Pablo Isasi used 3D scanning and printing to reconstruct Taurovenator, a Cretaceous predator from Argentina.

Production facilities are vulnerable when a single component fails. Organisations experience extended stoppages waiting months for a replacement part caught in a global supply chain. That is more than a financial loss; it is a threat to operational continuity.

The three-stage response

1. Capture. An industrial-grade 3D scanner generates a high-density point cloud capturing the exact part geometry.
2. Reconstruction. Specialised software processes the scan data to extract design features and create an editable CAD model, restoring the original design intent while correcting wear or damage.
3. Local manufacturing. The finished digital model enables production via additive manufacturing or CNC machining within a local facility.

When it becomes essential

• Original equipment manufacturers discontinue support for legacy machinery
• Technical documentation or 3D files are unavailable or lost
• Global logistics create unacceptable delays
• Components need local optimisation for specific operating environments

Strategic advantages

Lead time. Months of international logistics become days of local response, preventing production line stoppages.

Cost control. Eliminates OEM logistics premiums, customs uncertainty and emergency freight expense.

Digital warehousing. Transitions from physical inventory storage to a maintained library of 3D assets ready for immediate production.

Legacy equipment extension. Extends useful life by recreating components for machinery no longer supported by its original manufacturer.

Technical autonomy. Local engineering teams can replicate and improve original designs rather than waiting on them.

Environmental responsibility. Localised manufacturing reduces the carbon emissions of long-distance international shipping, supporting ESG objectives.

Where it comes up

• Aerospace and aviation — replicating non-critical interior components and specialised tooling
• Machinery and manufacturing — high-wear gears, bushings and customised actuators
• Construction and heavy equipment — hydraulic fittings and structural pins recreated locally
• Infrastructure and energy — maintaining pumps, valves and turbines in remote locations
• Maritime and shipbuilding — scanning large-scale mechanical assemblies for rapid local casting and repair

What makes it reliable

Metrology-grade systems compliant with ISO 10360 and VDI/VDE 2634 provide micron-level repeatability. Internal calibration infrastructure maintains continuous quality control verification through the product lifecycle. The technology handles dark, reflective automotive surfaces and intricate aerospace geometry without extensive preparation. EXModel streamlines the progression from physical scan to production-ready CAD, and robotic integration enables high-volume quality control with consistent precision on localised production lines.

The legal framework

Reverse engineering typically remains permissible when the individual or organisation owns the physical component, when reproduction serves internal maintenance of legally owned machinery, and when locally produced parts undergo rigorous metrological validation matching the original specification.

Three families of format, and the difference between them is what they know about the object.

A point cloud is measured reality — a dense collection of individual points. A mesh connects those points into polygons to define a continuous surface, ready for manufacturing and visualisation. CAD stores parametric and engineering information: dimensions, features and assembly relationships. You can move point cloud → mesh → CAD, and each step adds interpretation on top of measurement.

Quick reference by purpose

Point cloud formats

PLY (.ply) — colour-rich, versatile and widely supported. Used for object digitisation, cultural heritage scanning and inspection workflows.

LAS (.las) — efficient for millions of points, with support for georeferencing, intensity and GPS data. Used for terrain mapping, infrastructure inspection and BIM integration. Best suited to large environments rather than small parts.

ASCII formats (ASC / XYZ / TXT) — simple, universal and easy to exchange, used for intermediate storage, archival and small-scale scanning. Large file sizes mean they are typically converted into something more optimised.

Mesh formats

STL (.stl) — lightweight, simple and universally supported; the manufacturing and inspection standard, used for 3D printing, dimensional inspection and CAD comparison. Stores no colour or material information.

OBJ (.obj) — supports colour and textures and is widely compatible; used for rendering, animation, e-commerce 3D previews and cross-platform exchange.

3MF — modern 3D printing with full colour and material data. Less common in industrial inspection.

GLB / glTF — lightweight and fast-loading for web, mobile and AR/VR. Less common in industrial measurement workflows.

CAD formats

STEP (.step, .stp) — the universal CAD standard: an open format that maintains design intelligence. Used for multi-software collaboration, manufacturing and engineering analysis.

IGES (.igs, .iges) — legacy CAD exchange supporting curves, surfaces and assemblies; used for data exchange with older systems and archival. Less reliable for highly complex models.

Parasolid (.x_t, .x_b) — accurate solid geometry with robust support for complex solids. Used in SolidWorks, NX, Fusion 360 and CAM workflows.

Proprietary CAD formats — SLDPRT (SolidWorks), F3D (Fusion 360), CATPart (CATIA). Optimised within their native ecosystems, with limited cross-platform compatibility without export.
