- CAT IV 600V and CAT III 1000V
- 6000 count 2.8” TFT Colour LCD display
- Built-in Thermal imager with MIN/MAX
- Temperature Range -20°C to 260°C
- 50Hz fast Thermal image frame rate
- DC voltage
- AC, AC+DC TRMS Voltage
- DC current
- AC, AC+DC TRMS current
- Resistance and Continuity test
- Diode test
- Capacity
- Frequency
- Duty Cycle
- Temperature with K-type probe
- Flexible coil current

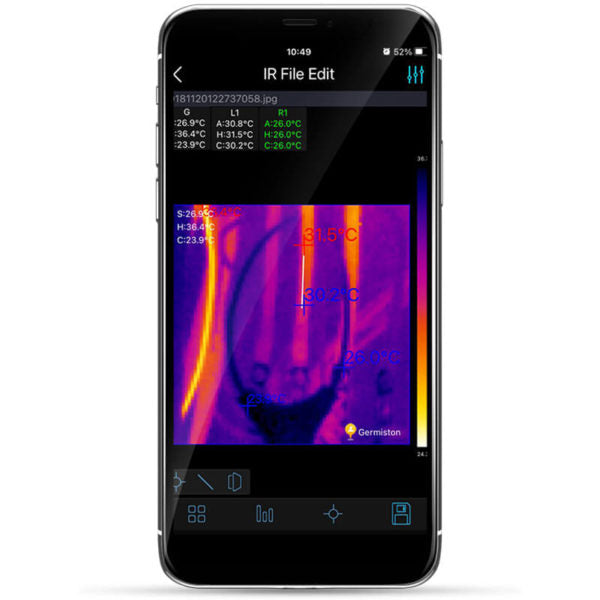

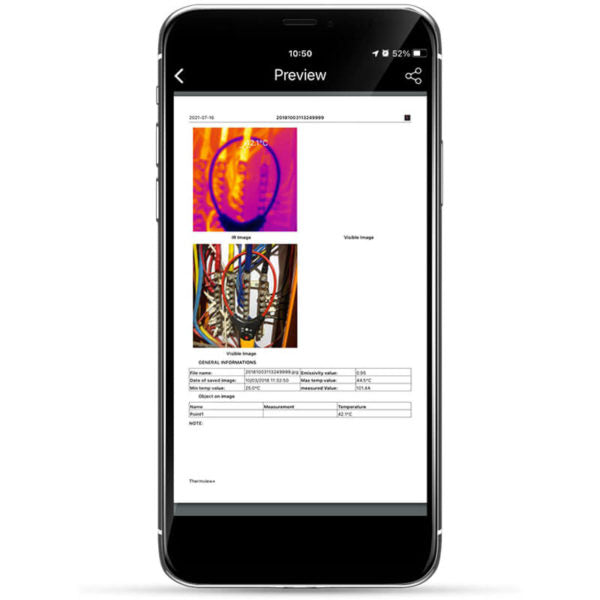

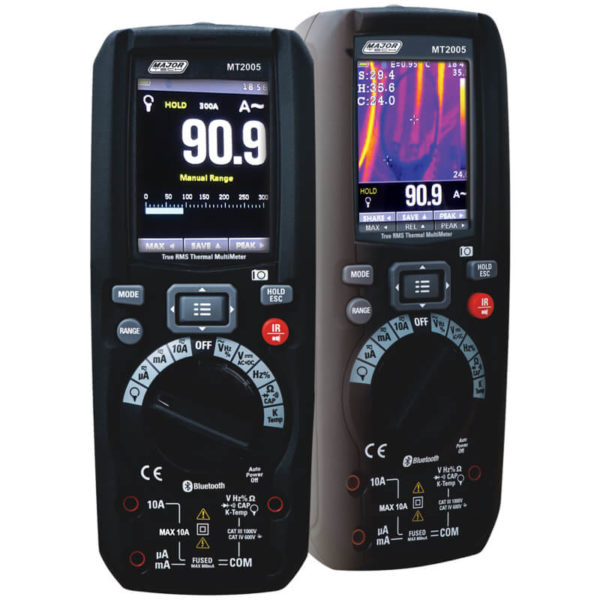

The MT2005 Professional True RMS Industrial Digital Multimeter with built-in 80 x 80 Thermal Imager, and TFT colour LCD display, provides fast A/D converting sampling time, high accuracy. It is a fast and easy solution to find and solve problems with production equipment, providing Bluetooth technology BLE. It is a safe instrument with double molded plastic housing and has a IP65 waterproof rating.
Specifications
| Function | Range | Resolution | Accuracy |
| Multimeter | |||
| DC Voltage | 600.0mV – 1000V | 0.1mV | ±(0.09% + 5 Digits) |
| AC Voltage | 600.0mV – 1000V | 0.1mV | ±(0.8% + 5 Digits) |
| AC + DC TRMS Voltage | 6.000V – 1000V | 0.001V | ±(2.4% + 20 Digits) |
| DC Current | 600.0μA – 10A | 0.1μA | ±(0.9% + 5 Digits) |
| AC Current | 600.0μA – 10A | 0.1μA | ±(01.2% + 5 Digits) |
| Flexi Coil AC Current | 30.00A – 3000A | 0.01A | ±(0.8% + 5 Digits) |
| Duty Cycle | 5.0% to 95.0% | 0,001 | ±(1.2% + 2 Digits) |
| Resistance | 600.0Ω – 60MΩ | 0.1Ω | ±(0.5% + 5 Digits) |
| Frequency | 40.00Hz -10MHz | 0.01Hz | ±(0.09% + 5 Digits) |
| Capacitance | 60.00nF – 6mF | 0.01nF | ±(1.2% + 8 Digits) |
| Temperature | -40 – 600°C | 0.1°C | ±(3.0% ± 3°C) |
| Imaging and Optical Data | |||
| Field of View | 21° x 21°/0.5m | ||
| Spatial Resolution (IFOV) | 4.53mrad | ||
| Thermal Sensitivity/NETD | <0.1°C @ +30°C/100mK | ||
| Image Range | 50Hz | ||
| Focus Mode | Focus free | ||
| Zoom | 1 x 32 x continuous, digital zoom | ||
| Focal Length | 7.5mm | ||
| Focal Plane Array (FPA) / Spectral Range | Uncooled microbolometer / 8-14μm | ||
| IR Resolution | 80 x 80 | ||
| Display | 2.8″ LCD, 240 x 320 pixels | ||
| Image Modes | IR Image, Visual image, | ||
| Colour Pallets | Iron, rainbow, rainbow HC, grey, grey inverted | ||
| Measurement | |||
| Temperature Range | -20°C – 260°C | ||
| Temperature Accuracy | ±(3°C or ± 3%) | ||
| Measurement Analysis | |||
| Spot | Centre spot | ||
| Automatic Hot/Cold detection | Hot or cold markers | ||
| Emissivity Correction | Variable 0.01 to 0.99 | ||
| Measurement Corrections | Emissivity, reflected temperature | ||
| Interfaces | Bluetooth BLE | ||
| True RMS Measurements | AC, AC+DC | ||
| AC Bandwidth | 50Hz to 100KHz | ||
| Digital Display | 6000 count 2.8″ TFT | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Barograph | Yes | ||
| Bluetooth | BLE 4.0 | ||
| Records Events and Trends | Yes | ||
| Data logging | Yes | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Input Impedance | >10MΩ VDC & >10MΩ VAC | ||
| Low Pass Filter | Yes | ||
| Min Max | Yes | ||
| Peak Hold | 500μs | ||
| Data Hold | Yes | ||
| Back Light | 240 x 320 TFT Display | ||
| Enclosure | Double moulded waterproof IP65 | ||
| Low Battery Indication | Yes | ||
| Power Source | 7.4V rechargeable li-ion, 2300mAh | ||
| Weight | 540g | ||
| Dimensions | 195 x 88 x 58mm | ||
| Safety Specs | IEC61010-1 CAT IV 600V | ||
