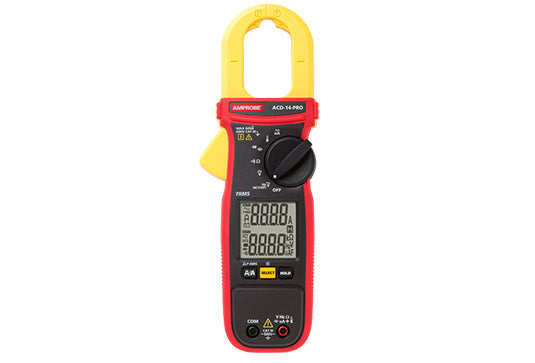

ACD-14-PRO Dual Display 600 A TRMS Clamp Meter designed for professional electrician and technician
item no. 4718977
This rugged and reliable clamp meter is designed for professional electrician and technician that need a fast responding, feature packed, go-to clamp meter. The ACD-14-PRO offers a complete range of measuring functions for both HVAC and electrical applications. This modern Clamp Meter features a large low-light backlit LCD dual display for dimly lit areas and is capable of simultaneously displaying voltage and amperage – to perform voltage drop tests. The ACD-14-PRO offers TRMS, low pass filter, in-rush current, frequency, resistance, capacitance, temperature, DC micro-Amps, Amp-tip and non-contact voltage detection.
The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, for reliable, accurate current measurement of both large and small diameter wires. The low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency). True-RMS ensures accurate voltage measurements in noisy environments. Designed with a rubber over modeled enclosure for extra durability and safety rated to CAT III 600 V.
- Large LCD with dual display and low-light backlight
- True-rms for accurate voltage measurements in noisy environments
- Low pass filter for current and voltage measurements on variable frequency drives
- Amp-Tip function for precise low current measurement of small diameter wires down to 0.1 Amp to help with electrical system troubleshooting
- HVAC applications with Temperature, DC Micro-amps and Capacitance
- In-rush current
- Non-contact voltage detection (NCV)
- Audible continuity and diode test
- Data hold
- Auto ranging
- Auto Power Offer
- Low Battery indicator
| Safety Rating |
CAT III 600 V |
|---|---|
| True-rms |
• |
| AC Voltage (V) |
600 V |
| DC Voltage (V) |
600 V |
| AC Current (A) |
600 A |
| Microamps |
• |
| Resistance |
• |
| Capacitance |
• |
| Frequency (Test Leads) |
• |
| Temperature |
• |
| Diode Test |
• |
| Continuity Beeper |
• |
| Non-Contact Voltage |
• |
| Autoranging |
• |
| Inrush Current |
• |
| Backlight |
• |
| Data Hold |
• |
| Auto Power-Off |
• |
| Low Pass Filter |
• |
Specifications
| Model | ACD-14-PRO |
| Safety rating | CAT III 600 V |
| True-RMS | • |
| AC/DC Voltage (V) | 600 |
| AC Current (A) | 600 |
| Jaw Opening | 1.18 in (30 mm) |
| Micro Amps (µA) | 2000 |
| Temperature | -40 °F to 752 °F / -40 °C to 400 °C |
| Low Pass Filter | • |
| Frequency (Hz) | 5.00 to 999.9 |
| Resistance (kΩ) | 6000 |
| Capacitance (µF) | 2500 |
| Diode Test | • |
| Continuity Beeper | < 10 Ω |
| Non-Contact Voltage | • |
| Electric Field Detection (test leads) | • |
| Autoranging | • |
| In-rush Current | • |
| Data Hold | • |
| Backlight | • |
| Auto Power Off | • |
Include:
- ACD-14-PRO
- Test leads
- Carrying case
- Batteries AAA (2)
- Banana plug K-type thermocouple
