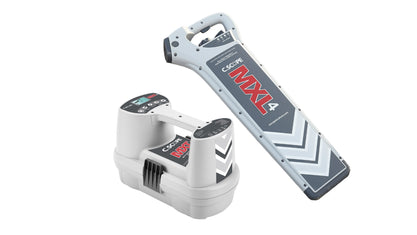

C-Scope Locator Kit w/-MXL4D Receiver & MXT4D Transmitter
The MXL4 is a high performance multi-frequency Precision Pipe & Cable Locator.
In-built Data Logging as standard. Bluetooth™ connectivity and GPS tracking options available. Designed for use with an MXT4 Multi Frequency Transmitter.
The MXL4 Precision Locator represents a significant advance in cable detecting and tracing capabilities.
Two versions of the MXL4 are available; the MXL4-D which has full data logging capability, and the MXL4-DBG which has full data logging capability, Bluetooth™ connectivity and GPS.
Innovative new features have been introduced enabling the MXL4 Locator and MXT4 Transmitter to provide high-end precision performance and a far more flexible approach to pipe and cable location.
IMPROVED PERFORMANCE
The MXL4 is able to quickly and accurately detect, pinpoint, trace and identify the widest range of pipes and cables.
OVERLOAD PROTECTION
Optimised Locator Sensitivity and Noise Rejection means that the MXL4 can deal with the highest levels of background interference found, allowing even the weakest of signals to be detected successfully.
MULTI-FREQUENCY
The MXT4 Transmitter now has a greater range of transmitting frequencies allowing improved long distance tracing and utility identification, even on the most congested of sites. A range of frequencies from 512/640Hz up to 131kHz and including the simultaneous dual-frequency 33kHz and 131kHz signal output is ideal for maximising the number of buried services that can be energised and then detected. The MXL4 can apply these frequency signals without direct connection to buried services, using either a Signal Clamp or the simple induction method from ground level, providing a significant improvement in the detection of the smaller diameter or poorly earthed cables.
DEPTH MEASUREMENT
The MXL4 when used alongside an MXT4 Transmitter will measure and indicate the depth of buried pipes, cables and sondes at the push of a button.
SIGNAL CURRENT MEASUREMENT
The MXL4 can monitor the true strength of the MXT4 Transmitter signal applied to a buried service irrespective of its depth. This is ideal for identifying the layout of a pipe or cable network.
INTELLIGENT NEW FEATURES:
ALARM ZONE
AlarmZone™ alerts operators to the presence of particularly shallow pipes or cables with the exact trigger depth adjustable by the user to best suit local requirements.
DYNAMIC SWING SENSOR
The Dynamic SwingSensor which gently alerts the operator if the locator is being swung excessively, potentially compromising the accuracy of any locates.
PEAKHOLD
PeakHold allows operators to quickly and confidently pinpoint the exact position of buried services

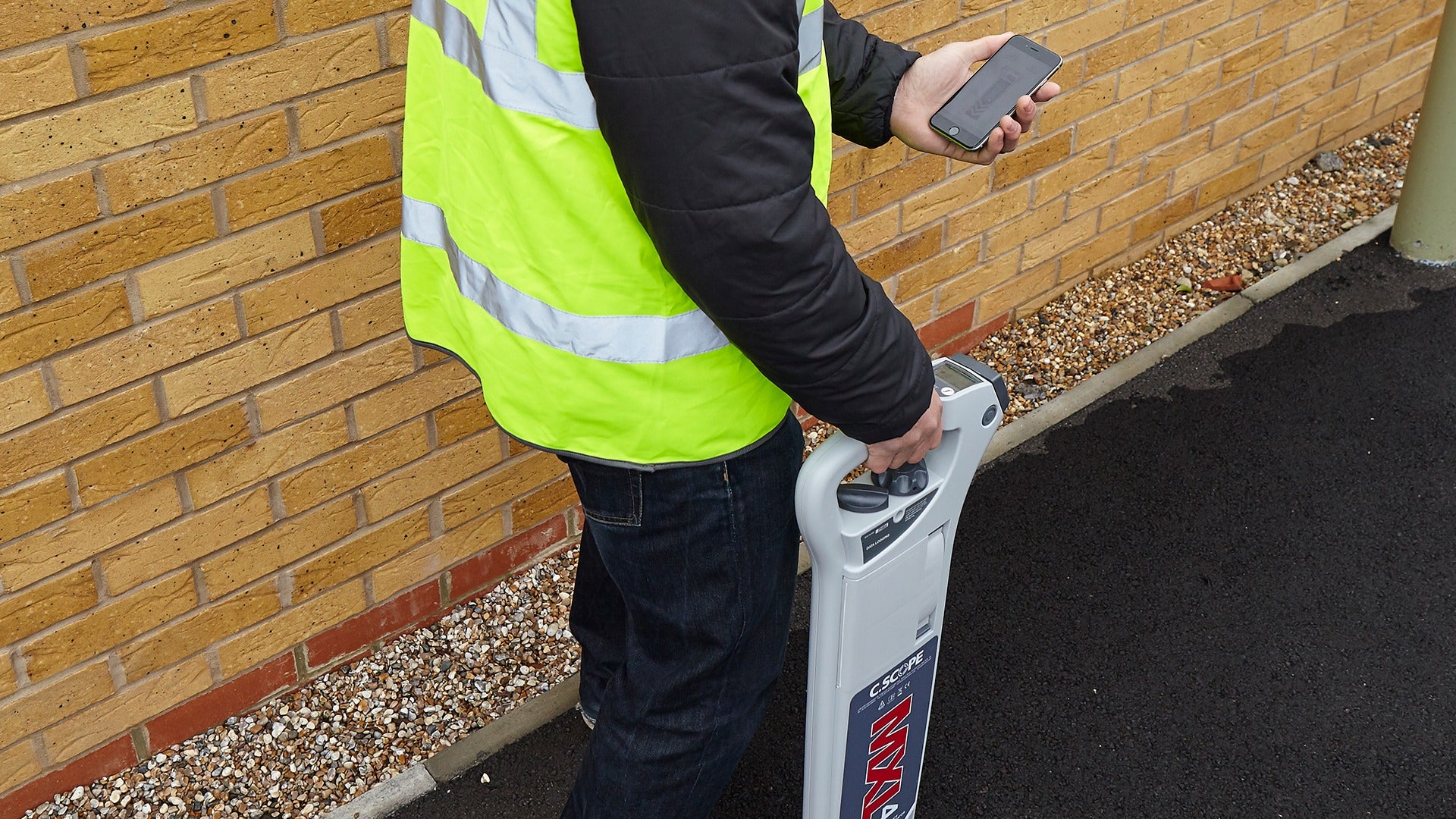

DATA LOGGING
The MXL4-D and MXL4-DBG Locators have full data logging capability. A years worth of data can be stored, in normal usage, on both the Locator and the MXT4 Transmitter.
DATA LOG TRANSFER via USB
This can be conveniently transferred at any time to supervisors for analysis via a USB cable to a PC (or wirelessly via Bluetooth™ from the DBG model only to a PC, tablet or smartphone).
DATA ANALYSIS
C.SCOPE PC ‘TOOLKIT’ and ‘RELAY’ Smartphone App
The free-to-download C.Scope PC Toolkit and C.Scope Relay smartphone App analyses the stored data-logs into charts and graphs that illustrate all aspects of the use allowing training requirements to be quickly identified.
GPS
The MXL4-DBG with in-built GPS allows a record to be kept of exactly where the Locators have been used that can then be viewed in partnership with Google Earth™ or Google Maps™.
Twelve months of GPS data is stored, in normal usage. This can be conveniently transferred at any time via a USB cable to a PC or wirelessly via Bluetooth™ to a PC, tablet or smartphone to supervisors for analysis. The free-to-download C.Scope PC Toolkit and Relay smartphone App analyses the stored data.
Additionally, the Locators can be paired to third party GPS Survey equipment, via the Locators in-built Bluetooth™ facilitating ‘one pass’ underground utility surveys to be undertaken.
CALIBRATION
The MXL4 Cable Avoidance Tools do not require periodic recalibration. A fully Automatic Daily Self Test (ADST) tests and confirms that they are functioning at their optimum level each day.
AUTOMATIC DAILY SELF TEST (ADST)
The MXL4 Locators perform an Automatic Daily Self Test (ADST). The ADST checks the functionality of the locator including the receiving aerials each day when it is first switched on. The MXT4 Transmitter also performs a comprehensive Automatic Daily Self Test (ADST)
At the start of each day of use, a positive Automatic Daily Self Test result gives confirmation to the operator that the kit is working at the optimum level.
The result of this test is recorded and stored on memory within the products in-built data files and can be downloaded onto a PC at any time within the following 12 months*.
PRODUCT VALIDATION CERTIFICATION
These test results can be used to produce a Product Validation Certificate using the C.Scope PC Toolkit. In addition, any results of the Self Test that have been carried out in the last twelve months* are available. The PC Toolkit can also be used to view and print a copy of the original factory Calibration Certificate.
C.Scope authorised Service Centres are also able to provide third-party Test and Calibration Certification should you require it to comply with client or internal requirements.
HIGH RESOLUTION BACKLIT DIGITAL DISPLAY
The MXL4 has a large, clear and easy to read backlit LCD mounted behind a protective polycarbonate lens. The display indicates detection mode, signal peak level, depth, signal strength and battery condition. It also displays the Automatic Daily Self Test results.
DETACHABLE SPEAKER
The speaker can be easily detached for use in noisy work environments.
ROBUST AND DURABLE CONSTRUCTION
The MXL4s twin wall construction is robust and durable. It also provides IP65 standard protection against dust and water ingress.
SERVICE
A complete covers off service & maintenance package is available for those customers who require it from C.Scope Authorised Service Centres.
THREE YEAR WARRANTY
The MXL4 comes with a three year Warranty (conditions apply).
OVERVIEW
- Power Mode
- Radio Mode
- Transmitter Mode:
Simultaneous 33+131kHz signal detection for utility avoidance
33kHz signal detection for all purpose tracing and utility avoidance
131kHz for optimum detection of short length, small diameter or unearthed cables
8kHz signal detection for tracing over longer distances
Ultra low 512Hz signal detection for specialist tracing
Ultra low 640Hz signal detection for specialist tracing - All Scan Mode
- Accurate Depth Indication
- Signal Current Measurement
- Overload Protection
- Alarm ZoneTM
- Peak Hold
- Dynamic Swing Sensor
- Automatic Daily Self Test
- Data Logging of all Locator activity
- Data Transfer by USB (BluetoothTM option)
- In-Build GPS position logging (optional)
- Connectivity to Survey level GPS products (option)
- High resolution Liquid Crystal Display
- No periodic Calibration required
- Product Validation Certificate available
- Network Rail Approved
SPECIFICATION
The MXL4 Multi Frequency Locator is available in two model types:
- MXL4-D Precision Locator
The C.Scope MXL4-D is a high performance digital multi-frequency Precision Pipe & Cable Locator with in-built Data Logging. - MXL4-DBG Precision Locator
The C.Scope MXL4-DBG is a high performance digital multi-frequency Precision Pipe & Cable Locator with in-built Data Logging, Bluetooth™ connectivity and GPS tracking.
Both these products are designed for use with an MXT4 Multi Frequency Transmitter.
Product name
MXL4 Precision Locator
Part Nos.
- MXL4-D
- MXL4-DBG
Controls
- On/Off Switch: Spring loaded trigger switch under handle
- Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; T. Transmitter Mode; A. AllScan Mode
- Sensitivity Control
- Depth Measurement Button. Push button for live display of depth
- Current Measurement Button. Pushbutton for live display of Transmitter current
- Frequency Select Button. Pushbutton for Transmitter Mode frequency selection
Audio Indication
Removable and user replaceable loudspeaker module
Visual Indication
Multi-segment Liquid Crystal Display indicating:
- Signal Strength
- Mode selected
- AlarmZone™
- Battery Condition
- Self Test Indicator
- In Transmitter Mode, Frequency selected; Depth Measurement; Signal Current Measurement
- GPS signal detected (MXL4-DBG only)
- Bluetooth™ activated (MXL4-DBG only)
Data Logging
Internal capacity for storing over 12months of data (in normal use) logged once per second. Data logged includes:
- Time/Date
- Mode Sensitivity Level
- Received Signal Level
- Frequency Depth
- Signal Current Measurement
- Self Test Result
- Swing Indicator
- GPS position (MXL4-DBG only)
Bluetooth™
Bluetooth v2.1 (for Android) and v4.0 (for Apple iOS)
GPS
GPS/QZSS/GLONASS/SBAS
Data Connector
Standard USB Mini B connector in battery compartment. USB 2.0 Compatible
Self Test
Automatic Daily Self Test
Swing Indicator
Audio beep to indicate incorrect use of the Locator
Transmitter Mode Frequencies
Simultaneous 131,072Hz and 32,768Hz; 131,072Hz, 32,768Hz; 8,192Hz; 640 and 512Hz
Construction
Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
Weight (including batteries)
2.65kg (5lb 13oz)
Dimensions
720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
Performance
- Locate Accuracy: better than 10% of depth
- Depth Accuracy: ±5% @ 1m (3’3”)
- Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’)
- Line Depth Resolution: 0.1m (0.4”)
- Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type
- Sonde Depth Resolution: 0.1m (0.4”)
- Current Measurement: 0.01mA to 100mA
Battery Type
Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
Battery Life
40 hours intermittent use at 20ºC (68ºF) using alkaline cells
| Features | MXL4-D | MXL-4DBG |
| Power Mode | • | • |
| Radio Mode | • | • |
| Generator / Transmitter Mode | • | • |
| – 33+131kHz | • | • |
| – 131kHz | • | • |
| – 33kHz | • | • |
| – 8kHz | • | • |
| – 512Hz | • | • |
| – 640Hz | • | • |
| AllScan Mode | • | • |
| Accurate Depth Indication | • | • |
| Signal Current Measurement | • | • |
| Overload Protection | • | • |
| AlarmZone™ | • | • |
| Peak Hold | • | • |
| Dynamic Swing Sensor | • | • |
| Automatic Daily Self Test | • | • |
| Product Validation Certificate | • | • |
| Data Logging | • | • |
| Data Logging Rate – once per second | • | • |
| 2GB Memory | • | • |
| Data Transfer via USB | • | • |
| Data Transfer via Bluetooth™ | – | • |
| In-Built GPS position logging | – | • |
| High Resolution Backlit Liquid Crystal Display | • | • |
| No Periodic Calibration* | • | • |
| Three Year Warranty** | • | • |
| Batteries*** 8 x AA (LR6 Alkaline or NiMH Rechargeable) | • | • |
| IP65 | • | • |
| Performance | Frequency | Sensitivity @ 1m depth |
Detection Depth (max) |
| Power | 50-400Hz | 5mA | 3m |
| Radio | 10kHz-30kHz | 25µA | 2m |
| Transmitter | |||
| – 33+131kHz | 33+131kHz | 5µA | 5m |
| – 131kHz | 131kHz | 5µA | 5m |
| – 33kHz | 33kHz | 5µA | 5m |
| – 8kHz | 8kHz | 100µA | 5m |
| – 512Hz | 512Hz | 100µA | 5m |
| – 640Hz | 640Hz | 100µA | 5m |
| AllScan | 50Hz-33kHz | 100µA | 3m |
| Sonde | |||
| – 33Hz | 33Hz | – | 7m |
| – 8Hz | 8Hz | – | 7m |
| – 512Hz | 512Hz | – | 5m |
| – 640Hz | 640Hz | – | 5m |
| Rodding Oscillator | 33kHz | – | 4.5m |
| Traceable Rodder – Line | 33kHz | – | 3m |
| Traceable Rodder – Tip / Sonde | 33kHz | – | 4m |
| Depth Measurement Range | |
| Line | 0.2m – 3.0m |
| Sonde | 0.25m – 9.9m |
| Depth Accuracy | +/- 5% of depth |
| GPS | |
| Acquisition Time – Cold Start | 30s |
| Acquisition Time – Hot Start | 1s |
| No. of Channels | 56 |
| Accuracy | 2m |
| Supported Systems | GPS, SBAS, QZSS, Galileo, GLONASS |
| Bluetooth™ | |
| Version | v2.1 (for Android) and v4.0 (for Apple iOS) |
| Supported Systems | PC, Android and Apple iOS |
| Range | 30m |
| Transfer Rate | 350kbps |
* No Periodic Calibration. The MXL4 Locators do not require periodic recalibration. A Product Validation Certificate can be printed using the PC Toolkit. C.Scope authorised Service Centres are also able to provide third-party Test and Calibration Certification should you require it to comply with client or internal regulations.
** Three Year warranty. Conditions apply.
*** Batteries. The MXL4 Locators use 8 x AA LR6 Alkaline or NiMH Rechargeable batteries sealed in a secure, fitted battery compartment. The battery pack will typically provide approximately 40 hours of service depending on use. The battery compartment also houses a spare battery holder.
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
C-Scope Locator Kit w/-MXL4D Receiver & MXT4D Transmitter
The MXL4 is a high performance multi-frequency Precision Pipe & Cable Locator.
In-built Data Logging as standard. Bluetooth™ connectivity and GPS tracking options available. Designed for use with an MXT4 Multi Frequency Transmitter.
The MXL4 Precision Locator represents a significant advance in cable detecting and tracing capabilities.
Two versions of the MXL4 are available; the MXL4-D which has full data logging capability, and the MXL4-DBG which has full data logging capability, Bluetooth™ connectivity and GPS.
Innovative new features have been introduced enabling the MXL4 Locator and MXT4 Transmitter to provide high-end precision performance and a far more flexible approach to pipe and cable location.
IMPROVED PERFORMANCE
The MXL4 is able to quickly and accurately detect, pinpoint, trace and identify the widest range of pipes and cables.
OVERLOAD PROTECTION
Optimised Locator Sensitivity and Noise Rejection means that the MXL4 can deal with the highest levels of background interference found, allowing even the weakest of signals to be detected successfully.
MULTI-FREQUENCY
The MXT4 Transmitter now has a greater range of transmitting frequencies allowing improved long distance tracing and utility identification, even on the most congested of sites. A range of frequencies from 512/640Hz up to 131kHz and including the simultaneous dual-frequency 33kHz and 131kHz signal output is ideal for maximising the number of buried services that can be energised and then detected. The MXL4 can apply these frequency signals without direct connection to buried services, using either a Signal Clamp or the simple induction method from ground level, providing a significant improvement in the detection of the smaller diameter or poorly earthed cables.
DEPTH MEASUREMENT
The MXL4 when used alongside an MXT4 Transmitter will measure and indicate the depth of buried pipes, cables and sondes at the push of a button.
SIGNAL CURRENT MEASUREMENT
The MXL4 can monitor the true strength of the MXT4 Transmitter signal applied to a buried service irrespective of its depth. This is ideal for identifying the layout of a pipe or cable network.
INTELLIGENT NEW FEATURES:
ALARM ZONE
AlarmZone™ alerts operators to the presence of particularly shallow pipes or cables with the exact trigger depth adjustable by the user to best suit local requirements.
DYNAMIC SWING SENSOR
The Dynamic SwingSensor which gently alerts the operator if the locator is being swung excessively, potentially compromising the accuracy of any locates.
PEAKHOLD
PeakHold allows operators to quickly and confidently pinpoint the exact position of buried services
DATA LOGGING
The MXL4-D and MXL4-DBG Locators have full data logging capability. A years worth of data can be stored, in normal usage, on both the Locator and the MXT4 Transmitter.
DATA LOG TRANSFER via USB
This can be conveniently transferred at any time to supervisors for analysis via a USB cable to a PC (or wirelessly via Bluetooth™ from the DBG model only to a PC, tablet or smartphone).
DATA ANALYSIS
C.SCOPE PC ‘TOOLKIT’ and ‘RELAY’ Smartphone App
The free-to-download C.Scope PC Toolkit and C.Scope Relay smartphone App analyses the stored data-logs into charts and graphs that illustrate all aspects of the use allowing training requirements to be quickly identified.
GPS
The MXL4-DBG with in-built GPS allows a record to be kept of exactly where the Locators have been used that can then be viewed in partnership with Google Earth™ or Google Maps™.
Twelve months of GPS data is stored, in normal usage. This can be conveniently transferred at any time via a USB cable to a PC or wirelessly via Bluetooth™ to a PC, tablet or smartphone to supervisors for analysis. The free-to-download C.Scope PC Toolkit and Relay smartphone App analyses the stored data.
Additionally, the Locators can be paired to third party GPS Survey equipment, via the Locators in-built Bluetooth™ facilitating ‘one pass’ underground utility surveys to be undertaken.
CALIBRATION
The MXL4 Cable Avoidance Tools do not require periodic recalibration. A fully Automatic Daily Self Test (ADST) tests and confirms that they are functioning at their optimum level each day.
AUTOMATIC DAILY SELF TEST (ADST)
The MXL4 Locators perform an Automatic Daily Self Test (ADST). The ADST checks the functionality of the locator including the receiving aerials each day when it is first switched on. The MXT4 Transmitter also performs a comprehensive Automatic Daily Self Test (ADST)
At the start of each day of use, a positive Automatic Daily Self Test result gives confirmation to the operator that the kit is working at the optimum level.
The result of this test is recorded and stored on memory within the products in-built data files and can be downloaded onto a PC at any time within the following 12 months*.
PRODUCT VALIDATION CERTIFICATION
These test results can be used to produce a Product Validation Certificate using the C.Scope PC Toolkit. In addition, any results of the Self Test that have been carried out in the last twelve months* are available. The PC Toolkit can also be used to view and print a copy of the original factory Calibration Certificate.
C.Scope authorised Service Centres are also able to provide third-party Test and Calibration Certification should you require it to comply with client or internal requirements.
HIGH RESOLUTION BACKLIT DIGITAL DISPLAY
The MXL4 has a large, clear and easy to read backlit LCD mounted behind a protective polycarbonate lens. The display indicates detection mode, signal peak level, depth, signal strength and battery condition. It also displays the Automatic Daily Self Test results.
DETACHABLE SPEAKER
The speaker can be easily detached for use in noisy work environments.
ROBUST AND DURABLE CONSTRUCTION
The MXL4s twin wall construction is robust and durable. It also provides IP65 standard protection against dust and water ingress.
SERVICE
A complete covers off service & maintenance package is available for those customers who require it from C.Scope Authorised Service Centres.
THREE YEAR WARRANTY
The MXL4 comes with a three year Warranty (conditions apply).
OVERVIEW
- Power Mode
- Radio Mode
- Transmitter Mode:
Simultaneous 33+131kHz signal detection for utility avoidance
33kHz signal detection for all purpose tracing and utility avoidance
131kHz for optimum detection of short length, small diameter or unearthed cables
8kHz signal detection for tracing over longer distances
Ultra low 512Hz signal detection for specialist tracing
Ultra low 640Hz signal detection for specialist tracing - All Scan Mode
- Accurate Depth Indication
- Signal Current Measurement
- Overload Protection
- Alarm ZoneTM
- Peak Hold
- Dynamic Swing Sensor
- Automatic Daily Self Test
- Data Logging of all Locator activity
- Data Transfer by USB (BluetoothTM option)
- In-Build GPS position logging (optional)
- Connectivity to Survey level GPS products (option)
- High resolution Liquid Crystal Display
- No periodic Calibration required
- Product Validation Certificate available
- Network Rail Approved
SPECIFICATION

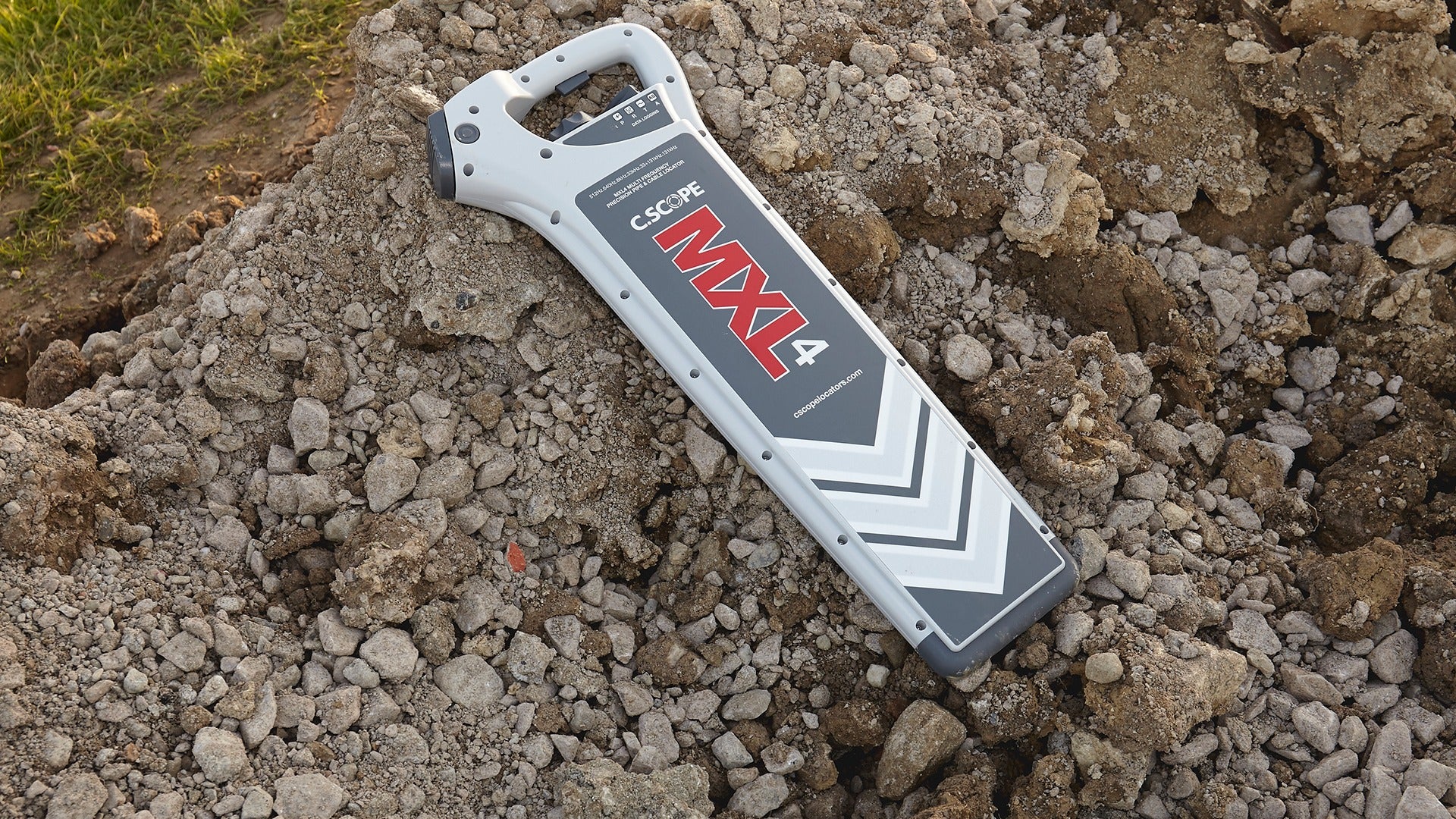

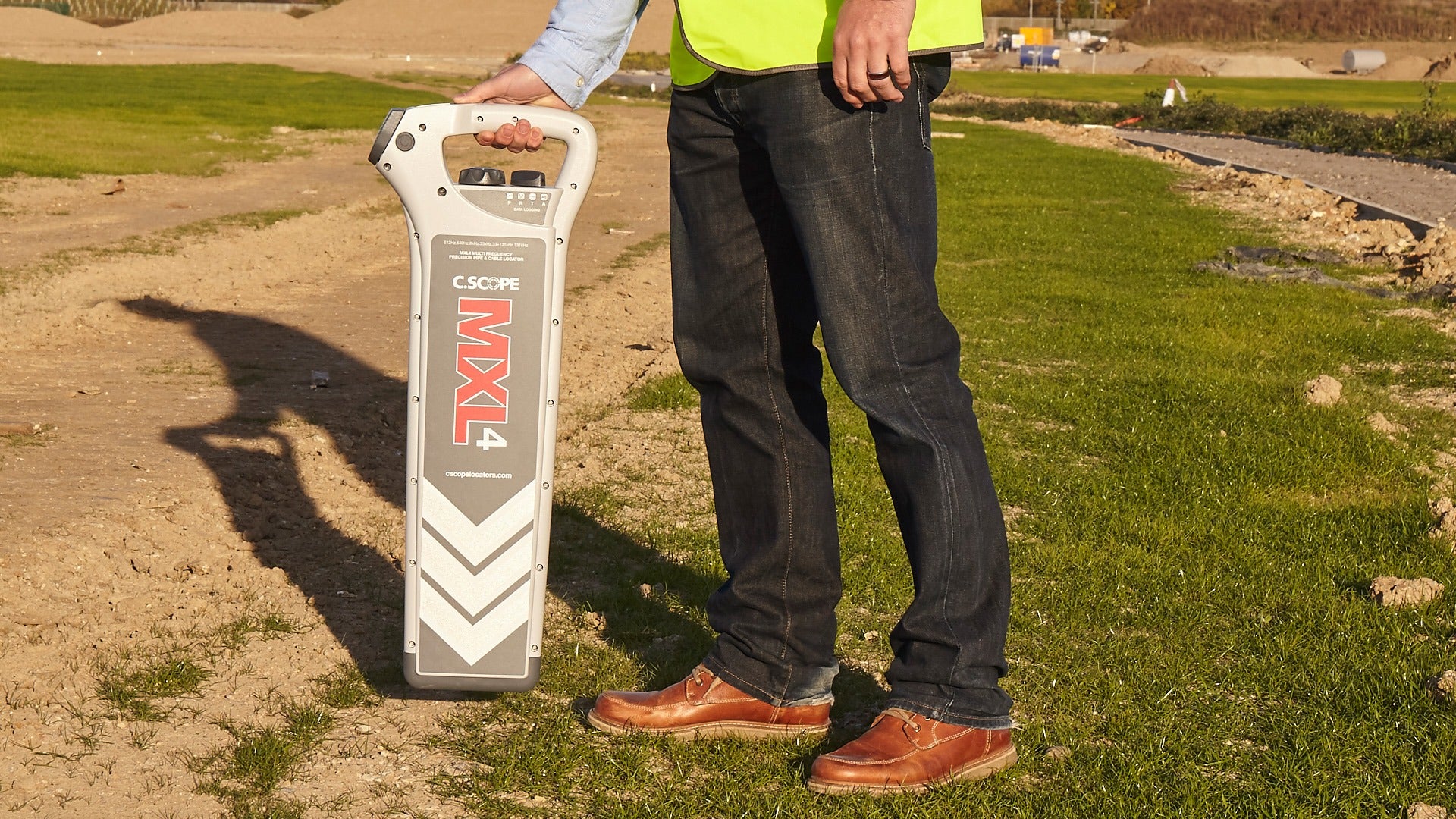

The MXL4 Multi Frequency Locator is available in two model types:
- MXL4-D Precision Locator
The C.Scope MXL4-D is a high performance digital multi-frequency Precision Pipe & Cable Locator with in-built Data Logging. - MXL4-DBG Precision Locator
The C.Scope MXL4-DBG is a high performance digital multi-frequency Precision Pipe & Cable Locator with in-built Data Logging, Bluetooth™ connectivity and GPS tracking.

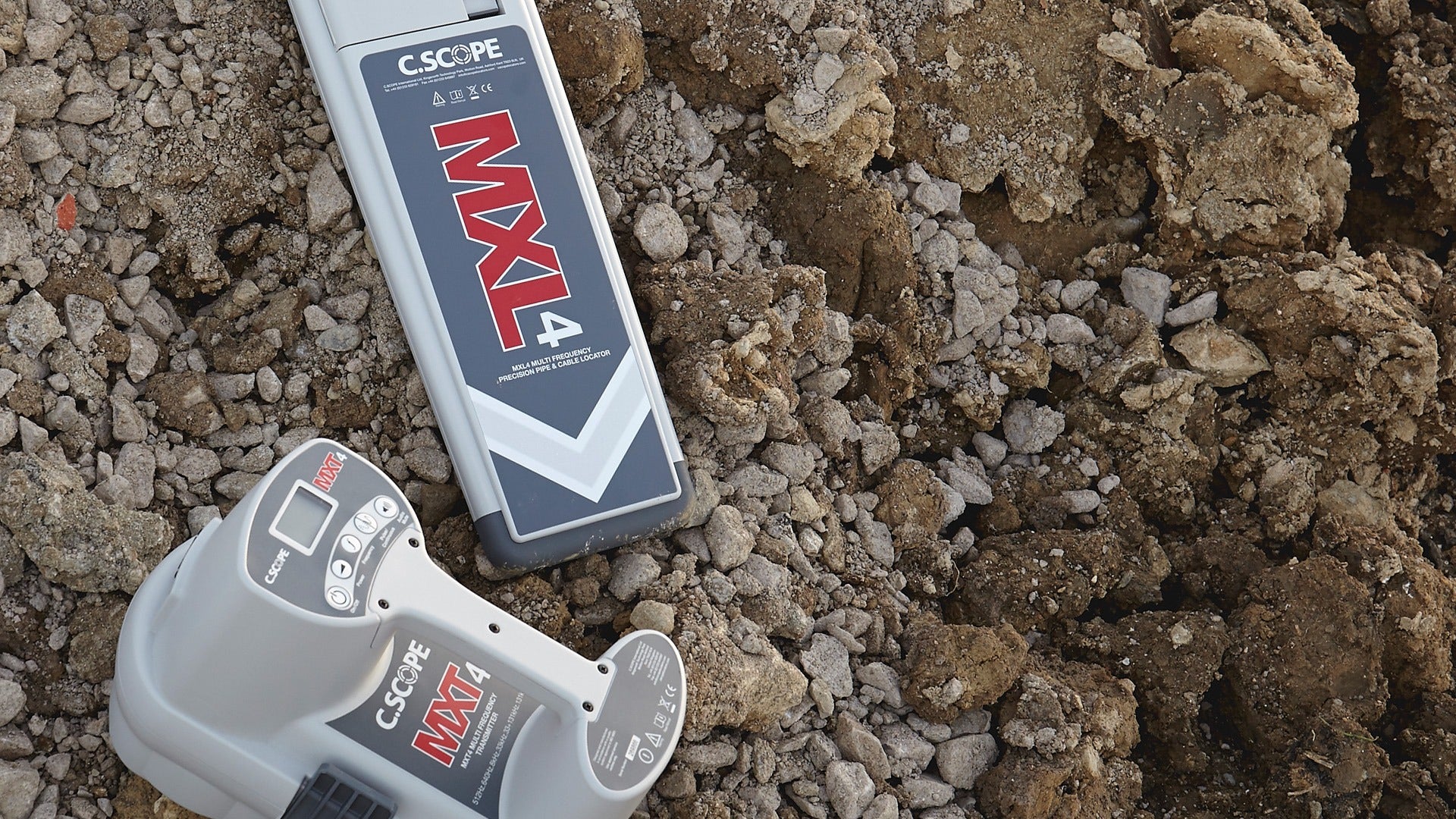

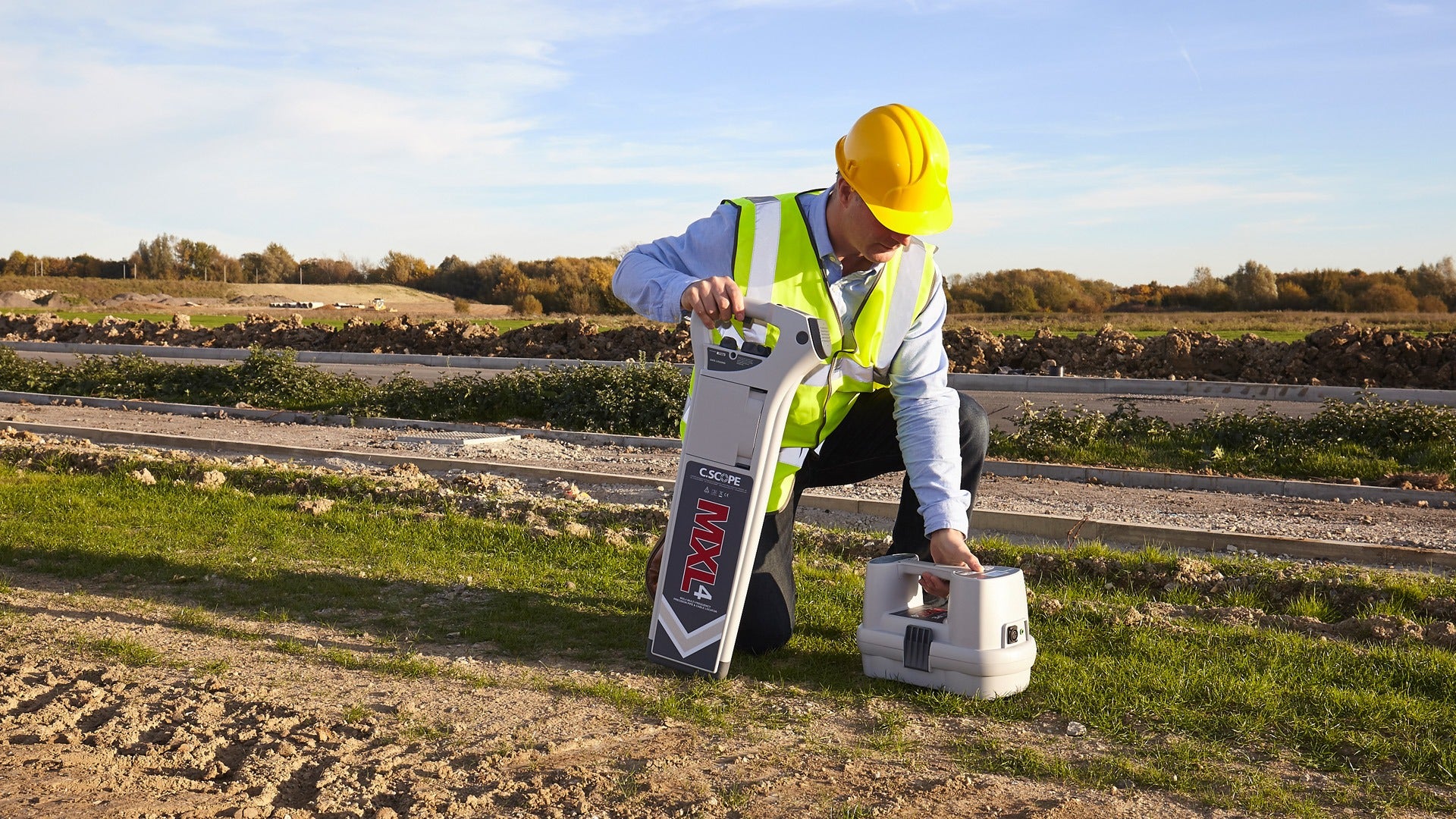

Both these products are designed for use with an MXT4 Multi Frequency Transmitter.
Product name
MXL4 Precision Locator
Part Nos.
- MXL4-D
- MXL4-DBG
Controls
- On/Off Switch: Spring loaded trigger switch under handle
- Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; T. Transmitter Mode; A. AllScan Mode
- Sensitivity Control
- Depth Measurement Button. Push button for live display of depth
- Current Measurement Button. Pushbutton for live display of Transmitter current
- Frequency Select Button. Pushbutton for Transmitter Mode frequency selection
Audio Indication
Removable and user replaceable loudspeaker module
Visual Indication
Multi-segment Liquid Crystal Display indicating:
- Signal Strength
- Mode selected
- AlarmZone™
- Battery Condition
- Self Test Indicator
- In Transmitter Mode, Frequency selected; Depth Measurement; Signal Current Measurement
- GPS signal detected (MXL4-DBG only)
- Bluetooth™ activated (MXL4-DBG only)
Data Logging
Internal capacity for storing over 12months of data (in normal use) logged once per second. Data logged includes:
- Time/Date
- Mode Sensitivity Level
- Received Signal Level
- Frequency Depth
- Signal Current Measurement
- Self Test Result
- Swing Indicator
- GPS position (MXL4-DBG only)
Bluetooth™
Bluetooth v2.1 (for Android) and v4.0 (for Apple iOS)
GPS
GPS/QZSS/GLONASS/SBAS
Data Connector
Standard USB Mini B connector in battery compartment. USB 2.0 Compatible
Self Test
Automatic Daily Self Test
Swing Indicator
Audio beep to indicate incorrect use of the Locator
Transmitter Mode Frequencies
Simultaneous 131,072Hz and 32,768Hz; 131,072Hz, 32,768Hz; 8,192Hz; 640 and 512Hz
Construction
Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
Weight (including batteries)
2.65kg (5lb 13oz)
Dimensions
720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
Performance
- Locate Accuracy: better than 10% of depth
- Depth Accuracy: ±5% @ 1m (3’3”)
- Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’)
- Line Depth Resolution: 0.1m (0.4”)
- Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type
- Sonde Depth Resolution: 0.1m (0.4”)
- Current Measurement: 0.01mA to 100mA
Battery Type
Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
Battery Life
40 hours intermittent use at 20ºC (68ºF) using alkaline cells
| Features | MXL4-D | MXL-4DBG |
| Power Mode | • | • |
| Radio Mode | • | • |
| Generator / Transmitter Mode | • | • |
| – 33+131kHz | • | • |
| – 131kHz | • | • |
| – 33kHz | • | • |
| – 8kHz | • | • |
| – 512Hz | • | • |
| – 640Hz | • | • |
| AllScan Mode | • | • |
| Accurate Depth Indication | • | • |
| Signal Current Measurement | • | • |
| Overload Protection | • | • |
| AlarmZone™ | • | • |
| Peak Hold | • | • |
| Dynamic Swing Sensor | • | • |
| Automatic Daily Self Test | • | • |
| Product Validation Certificate | • | • |
| Data Logging | • | • |
| Data Logging Rate – once per second | • | • |
| 2GB Memory | • | • |
| Data Transfer via USB | • | • |
| Data Transfer via Bluetooth™ | – | • |
| In-Built GPS position logging | – | • |
| High Resolution Backlit Liquid Crystal Display | • | • |
| No Periodic Calibration* | • | • |
| Three Year Warranty** | • | • |
| Batteries*** 8 x AA (LR6 Alkaline or NiMH Rechargeable) | • | • |
| IP65 | • | • |
| Performance | Frequency | Sensitivity @ 1m depth |
Detection Depth (max) |
| Power | 50-400Hz | 5mA | 3m |
| Radio | 10kHz-30kHz | 25µA | 2m |
| Transmitter | |||
| – 33+131kHz | 33+131kHz | 5µA | 5m |
| – 131kHz | 131kHz | 5µA | 5m |
| – 33kHz | 33kHz | 5µA | 5m |
| – 8kHz | 8kHz | 100µA | 5m |
| – 512Hz | 512Hz | 100µA | 5m |
| – 640Hz | 640Hz | 100µA | 5m |
| AllScan | 50Hz-33kHz | 100µA | 3m |
| Sonde | |||
| – 33Hz | 33Hz | – | 7m |
| – 8Hz | 8Hz | – | 7m |
| – 512Hz | 512Hz | – | 5m |
| – 640Hz | 640Hz | – | 5m |
| Rodding Oscillator | 33kHz | – | 4.5m |
| Traceable Rodder – Line | 33kHz | – | 3m |
| Traceable Rodder – Tip / Sonde | 33kHz | – | 4m |
| Depth Measurement Range | |
| Line | 0.2m – 3.0m |
| Sonde | 0.25m – 9.9m |
| Depth Accuracy | +/- 5% of depth |
| GPS | |
| Acquisition Time – Cold Start | 30s |
| Acquisition Time – Hot Start | 1s |
| No. of Channels | 56 |
| Accuracy | 2m |
| Supported Systems | GPS, SBAS, QZSS, Galileo, GLONASS |
| Bluetooth™ | |
| Version | v2.1 (for Android) and v4.0 (for Apple iOS) |
| Supported Systems | PC, Android and Apple iOS |
| Range | 30m |
| Transfer Rate | 350kbps |
* No Periodic Calibration. The MXL4 Locators do not require periodic recalibration. A Product Validation Certificate can be printed using the PC Toolkit. C.Scope authorised Service Centres are also able to provide third-party Test and Calibration Certification should you require it to comply with client or internal regulations.
** Three Year warranty. Conditions apply.
*** Batteries. The MXL4 Locators use 8 x AA LR6 Alkaline or NiMH Rechargeable batteries sealed in a secure, fitted battery compartment. The battery pack will typically provide approximately 40 hours of service depending on use. The battery compartment also houses a spare battery holder.
Shipping
| Shipping | This item ships to |
Delivery & Returns
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Reviews
6 Great reasons to buy from us:
-
30 Days Return
If your product is faulty or damaged under manufacture warranty, simply send it back to us and we'll cheerfully replace it or fix the problem for you. -
Returns are Easy
Simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap! -
Best Price Guarantee
In the unlikely event that you find your item cheaper at another online store, just let us know and we'll beat the competitor's pricing hands-down. -
We guarantee your satisfaction
We insist that you love everything you buy from us. If you're unhappy for any reason whatsoever, just let us know and we'll bend over backwards to make things right again. -
100% Safe & Secure
Ordering from Laserman Technologies is 100% safe and secure so you can rest easy. Your personal details are never shared, sold or rented to anyone either. -
Best Laser Warranties in the Business
Laserman the Best Laser Level, Pipe Laser and Laser Measuring Warranties in the Business - Now thats unbeatable value !!.
