(item no. 1916989, 1917004)

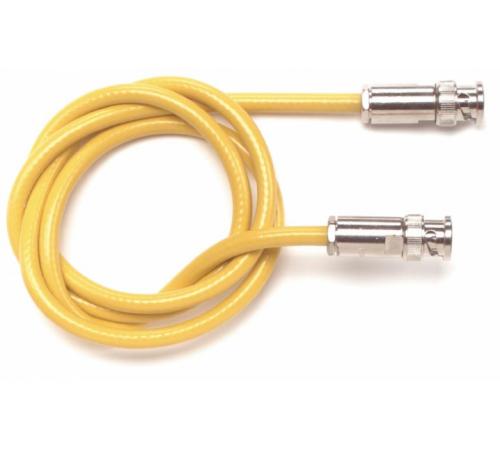

- Cable Assembly Coaxial BNC 2 Lug Triax to BNC 2 Lug Triax Male to Male RG-58A
Specifications
| Materials | |
| Connector – 1st End | Triaxial Cable Male (BNC 2 Lug Bayonet Style) |
| Body and Fittings | Brass, Tarnish Resistant |
| Intermediate and Center contacts | Gold Plated Brass per MIL-C-39012 |
| Cable | Belden 9222 Triaxial Cable, 20 AWG stranding 7x28, T.C. Polyethylene Insulation, 6.15 (.242) O.D. Color: Yellow |
| Marking | “POMONA ELECTRONICS 5054-XX” |
| Connector - 2nd End | Same as first. |
| Ratings | |
| Operating Voltage | 500 VRMS |
| Nominal Impedance | 50 Ohms |
| Model Number | Model Name | Length |
|---|---|---|
| 5054-36 | Triaxial (M), Belden 9222 | 36in (0.9m) |
| 5054-60 | Triaxial (M), Belden 9222 | 60in (1.5m) |
Download
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
(item no. 1916989, 1917004)
- Cable Assembly Coaxial BNC 2 Lug Triax to BNC 2 Lug Triax Male to Male RG-58A
Specifications
| Materials | |
| Connector – 1st End | Triaxial Cable Male (BNC 2 Lug Bayonet Style) |
| Body and Fittings | Brass, Tarnish Resistant |
| Intermediate and Center contacts | Gold Plated Brass per MIL-C-39012 |
| Cable | Belden 9222 Triaxial Cable, 20 AWG stranding 7x28, T.C. Polyethylene Insulation, 6.15 (.242) O.D. Color: Yellow |
| Marking | “POMONA ELECTRONICS 5054-XX” |
| Connector - 2nd End | Same as first. |
| Ratings | |
| Operating Voltage | 500 VRMS |
| Nominal Impedance | 50 Ohms |
| Model Number | Model Name | Length |
|---|---|---|
| 5054-36 | Triaxial (M), Belden 9222 | 36in (0.9m) |
| 5054-60 | Triaxial (M), Belden 9222 | 60in (1.5m) |
