Fluke 729 Pro Automatic Pressure Calibrator (item no. 5300476, 5300483)

SKU: 5300476
£10,936.00

(Fluke Registration required before purchase. Please contact Laserman for more information on +61 8 9335 1718 )

Checkout Secure
Need more info? Call us +61 8 9335 1718

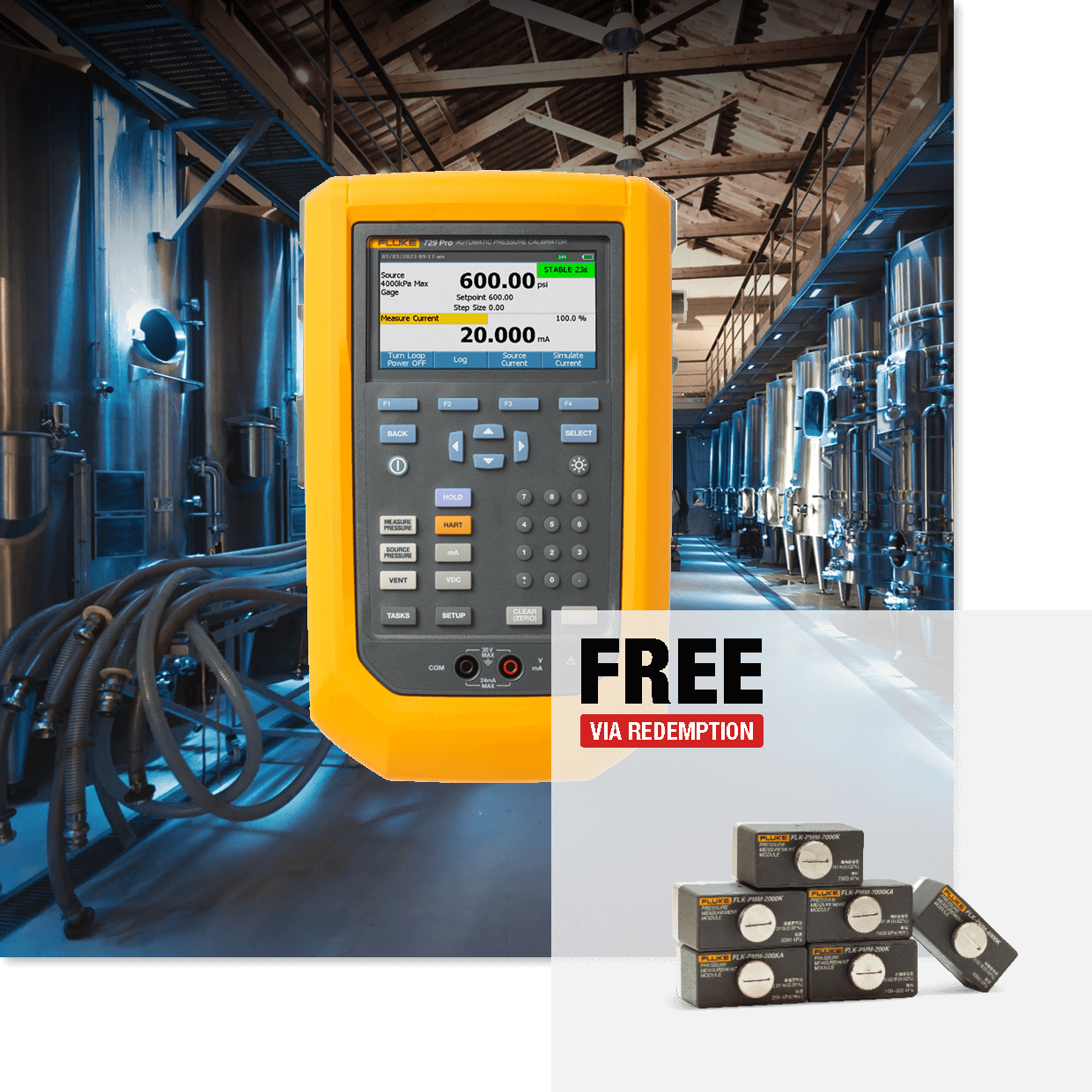

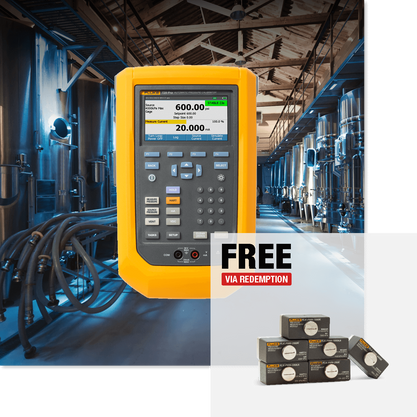

 Fluke 729 Pro Automatic Pressure Calibrators

(Fluke Registration required before purchase. Please contact Laserman for more information on +61 8 9335 1718 )

The new Fluke 729 Pro Automatic Pressure Calibrators are portable field pressure calibration tools for lab or field use. It is designed specifically for process technicians to simplify the pressure calibration process and provide faster, more accurate test results.

Automatic pressure generation and regulation to 7MPa

Fluke 729 Pro achieves 7MPa automatic pressure calibration with excellent portability of less than 5kg. Enter a pressure up to 7 MPa and the 729 Pro will automatically pump to the desired pressure. The 729 Pro can also output changing pressure in step values or a linear ramp.

Plug-in replaceable pressure control modules.

Freely switch the pressure output range to achieve range matching without having to buy a completely new calibrator. Engineers are no longer restricted by the environment and can perform efficient calibration at will.

Easy calibration documentation using well-defined templates for transmitters and switches.

Fluke 729 Pro Calibrators ensure optimum effectiveness, and high accuracy which promises dependable calibration results. The automatic calibration and documenting functions are performed by either the Calibrator’s internal procedures or from downloaded tasks from calibration-management software (CMS) like Fluke DPCTrack2. Fluke 729 Pro Calibrators also provides basic HART® communicator functions when used with HART-capable transmitters.

 Features and Benefits

• Automatic pressure generation, control and precision adjustment up to 7MPa (1,000 psi)
• Interchangeable internal Pressure Measurement Modules, up to 7MPa.
• Portable, weighs less than 5KG.
• Rugged ergonomic design with three years warranty
• Automatic calibrator of pressure transmitters, switches, and gauges.
• Source or measure pressure to test pressure devices with both pressure inputs and outputs
• Source and simulate mA signals while measuring pressure for testing current to pressure (I/P) converters.
• HART communication to configure and perform trim on HART smart-pressure transmitters
• Provides loop power and simultaneously measures mA output from a connected device.
• On board as-found/as-left calibration procedures document calibration results to satisfy quality
regulations or audits working with DPCTrack2 software.
• Advanced features like auto step and auto ramp allow testing of devices automatically.
• Onboard pressure switch test automatically ramps pressure up and down across expected switch trip
setting to calibrate pressure switches.
• Compatible with Fluke-750P series pressure modules



Downloads

Datasheet

Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

 Fluke 729 Pro Automatic Pressure Calibrators

(Fluke Registration required before purchase. Please contact Laserman for more information on +61 8 9335 1718 )

The new Fluke 729 Pro Automatic Pressure Calibrators are portable field pressure calibration tools for lab or field use. It is designed specifically for process technicians to simplify the pressure calibration process and provide faster, more accurate test results.

Automatic pressure generation and regulation to 7MPa

Fluke 729 Pro achieves 7MPa automatic pressure calibration with excellent portability of less than 5kg. Enter a pressure up to 7 MPa and the 729 Pro will automatically pump to the desired pressure. The 729 Pro can also output changing pressure in step values or a linear ramp.

Plug-in replaceable pressure control modules.

Freely switch the pressure output range to achieve range matching without having to buy a completely new calibrator. Engineers are no longer restricted by the environment and can perform efficient calibration at will.

Easy calibration documentation using well-defined templates for transmitters and switches.

Fluke 729 Pro Calibrators ensure optimum effectiveness, and high accuracy which promises dependable calibration results. The automatic calibration and documenting functions are performed by either the Calibrator’s internal procedures or from downloaded tasks from calibration-management software (CMS) like Fluke DPCTrack2. Fluke 729 Pro Calibrators also provides basic HART® communicator functions when used with HART-capable transmitters.

 Features and Benefits

• Automatic pressure generation, control and precision adjustment up to 7MPa (1,000 psi)
• Interchangeable internal Pressure Measurement Modules, up to 7MPa.
• Portable, weighs less than 5KG.
• Rugged ergonomic design with three years warranty
• Automatic calibrator of pressure transmitters, switches, and gauges.
• Source or measure pressure to test pressure devices with both pressure inputs and outputs
• Source and simulate mA signals while measuring pressure for testing current to pressure (I/P) converters.
• HART communication to configure and perform trim on HART smart-pressure transmitters
• Provides loop power and simultaneously measures mA output from a connected device.
• On board as-found/as-left calibration procedures document calibration results to satisfy quality
regulations or audits working with DPCTrack2 software.
• Advanced features like auto step and auto ramp allow testing of devices automatically.
• Onboard pressure switch test automatically ramps pressure up and down across expected switch trip
setting to calibrate pressure switches.
• Compatible with Fluke-750P series pressure modules
