(item no. 2727885)

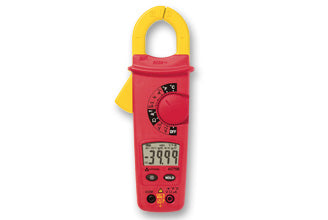

The Amprobe AC75B Clamp Meter, Multimeter and Thermometer prepares you for almost any challenge in HVAC, electrical or industrial maintenance applications.
Features
- 600A AC current
- Digital thermometer to 400 °C (1000 °F), K-type probe included
- AC/DC Volts 750 V/1000 V
- Capacitance to 4000 µA for motor run/start capacitor testing
- 4000-count large digit display
- Full overload protection
- Auto power off
- Low battery indicator
- Jaw size 1.3 in (35 mm)
Specifications
| FEATURE | AC75B |
| True-rms | – |
| AC Voltage | 4.000 V, 40.00 V, 400.0 V, 750 V |
| DC Voltage | 4.000 V, 40.00 V, 400.0 V, 1000 V |
| AC Current | 400.00 A, 600 A |
| DC Current | – |
| Micro Amps | 400.00 µA, 4000 µA |
| Resistance | 400 O, 4 kO, 40 kO, 400 kO, 4 MO, 40 MO |
| Continuity | • |
| Capacitance | 4 nF, 40 nF, 400 nF, 4µF, 40µF, 400 µF, 4mF |
| Frequency | – |
| Temperature | -40 °F → 1000 °F (-40 °C → 400 °C) |
| Accommodates conductors | up to 1.3 (35 mm) in diameter |
| Specifications | |
| AC Current (50/60 Hz): | 400 A, 600 A , Accuracy: 0 to 60 A ± (1.9 % + 2 A), 60 to 400 A ± (1.9 % + 1 A), 400 to 600 A ± (2.5 % + 7 A) |
| Resolution: | 0.1 A |
| 400, 4000 µA , accuracy: ±(1.0 %+2 d) | -0.6 V to -1000.0 V, Accuracy: ±(1% + 4 dgt) |
| Resolution: | 0.1µA |
| AC Voltage (50 to 500 Hz): | 4 V, 40 V, 400 V, 750 V, Accuracy: ±(1.5 %+5 dgts) |
| Resolution: | 1 mV |
| DC Voltage: | 4 V, 40 V, 400 V, 1000 V, Accuracy: ±(0.9 %+2 dgts) |
| Resolution: | 1 mV |
