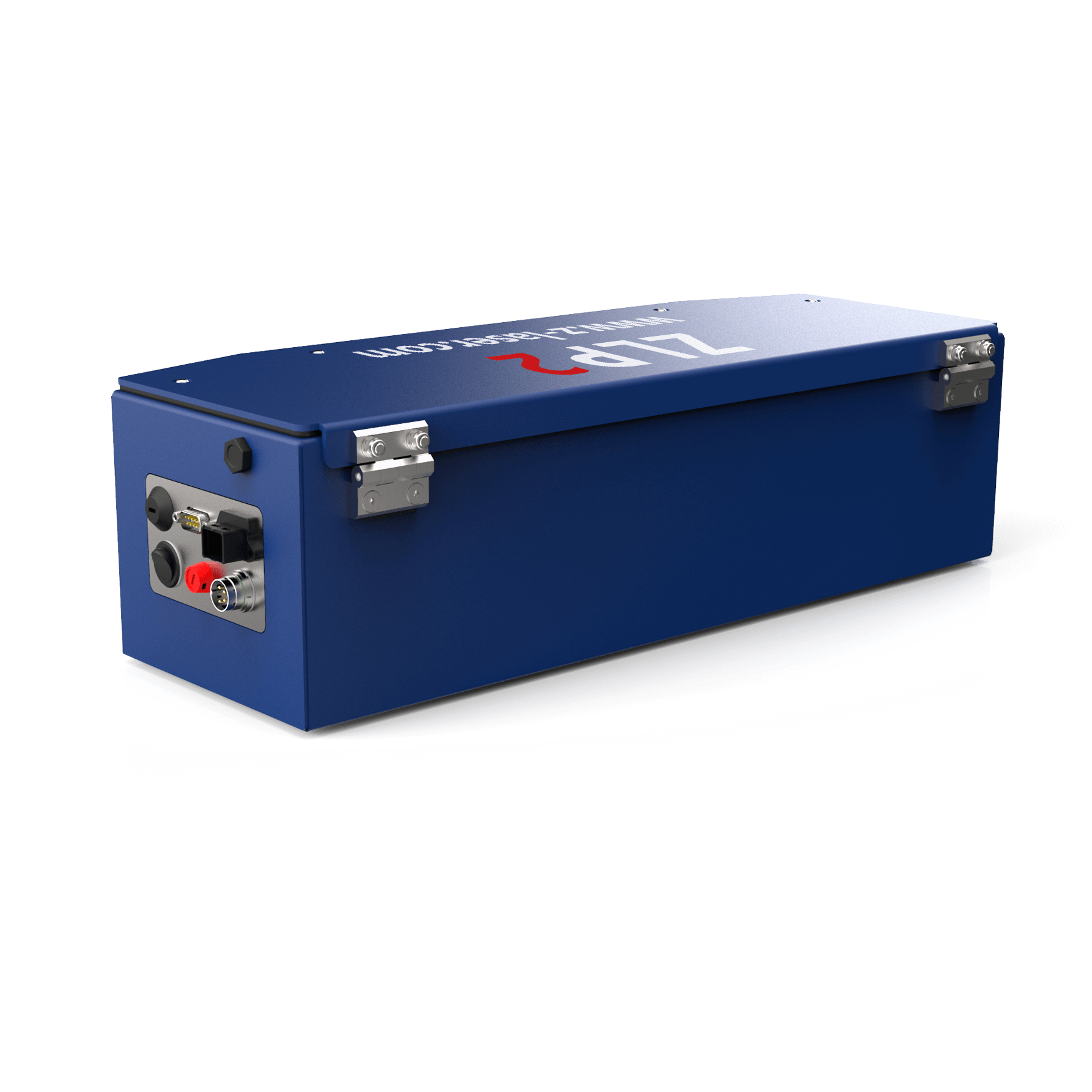

Z-Laser ZLP2 Compact Laser Projector with Z-FIBER Source

SKU: 101073900

£11,516.00

Model

Need more info? Call us +61 8 9335 1718

Price Match International Orders Tax Removed

Article-No.	Model	Details	Output Power	Wavelength	Source	Optic	Laser Class	Fan Angle	Accuracy
STANDARD MODEL
101073900	ZLP2-7-638F-S-80	Standard Projector red	7 mW	638 nm	Fiber	Standard	2M	80°	0.25 mm/m
101073700	ZLP2-7-520F-S-80	Standard Projector green	7 mW	520 nm	Fiber	Standard	2M	80°	0.25 mm/m
HIGH POWER MODEL
101074100	101074100	High Power Projector green	14 mW	520 nm	Fiber	Standard	3R	80°	0.25 mm/m
TELEOPTIC MODEL
702000300	ZLP2-7-520F-T-60	Teleoptic Projector green for working distance 7-14m	7 mW	520 nm	Fiber	Tele	2M	60°	0.2 mm/m
101099100	ZLP2-14-520F-T-60	Teleoptic Projector green High Power for working distance 7-14m	14 mW	520 nm	Fiber	Tele	3R	60°	0.2 mm/m

High-performance laser projector with Z-FIBER source

ZLP2 is the high-end model of our ZLP laser projector family.ZLP2 comes with an unmatched beam quality due to the use of a fiber-coupled laser source. Thanks to its precision of 0.25mm per meter working distance, ZLP2 is perfectly suited for applications in composite using industries.

ZLP2 comes with the intuitive graphical user interface ZLP-Suite. The integrated API allows an easy integration of ZLP2 in existing customer software. For the extension of ZLP-Suite additional software modules are available.

Wavelength	520 nm, 638 nm
Output power	7 mW, 14 mW
Fan Angle	60°x60°, 80°x80°
Projection	2D, 3D, CAD
Supply voltage	24 VDC
IP protection class	IP 65
Application	Assembling, Mounting/set-up, Positioning
Laser class	2M, 3R
Technology	Fiber-coupled laser

Downloads

Application Stories

Shipping

This Item Ships from Fremantle, Perth, Western Australia

Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

Article-No.	Model	Details	Output Power	Wavelength	Source	Optic	Laser Class	Fan Angle	Accuracy
STANDARD MODEL
101073900	ZLP2-7-638F-S-80	Standard Projector red	7 mW	638 nm	Fiber	Standard	2M	80°	0.25 mm/m
101073700	ZLP2-7-520F-S-80	Standard Projector green	7 mW	520 nm	Fiber	Standard	2M	80°	0.25 mm/m
HIGH POWER MODEL
101074100	101074100	High Power Projector green	14 mW	520 nm	Fiber	Standard	3R	80°	0.25 mm/m
TELEOPTIC MODEL
702000300	ZLP2-7-520F-T-60	Teleoptic Projector green for working distance 7-14m	7 mW	520 nm	Fiber	Tele	2M	60°	0.2 mm/m
101099100	ZLP2-14-520F-T-60	Teleoptic Projector green High Power for working distance 7-14m	14 mW	520 nm	Fiber	Tele	3R	60°	0.2 mm/m

High-performance laser projector with Z-FIBER source

Wavelength	520 nm, 638 nm
Output power	7 mW, 14 mW
Fan Angle	60°x60°, 80°x80°
Projection	2D, 3D, CAD
Supply voltage	24 VDC
IP protection class	IP 65
Application	Assembling, Mounting/set-up, Positioning
Laser class	2M, 3R
Technology	Fiber-coupled laser

Downloads

Application Stories
