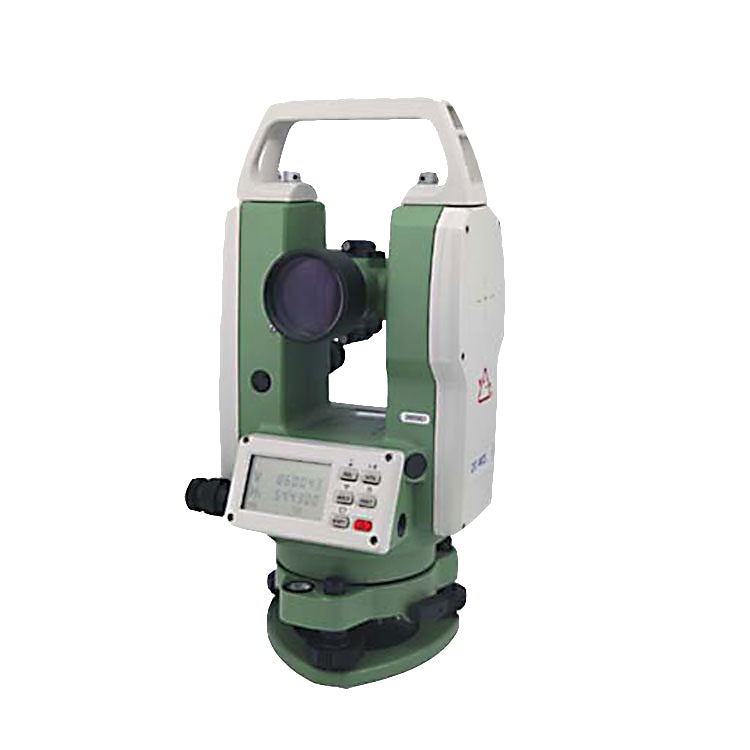

Laserman DT402 Universal Digital Theodolite

DT400 series Electronic Theodolite applied absolute encoders system for digital angle measurement, don't need rotate telescope to start angle measurement.

It can achieve measurement, calculating, display and memory etc. by means of computer technology

It can display measuring results of horizontal and vertical angle at the  same time

Vertical angle can switch to zenith angle or grade and so on



DT400 Series Theodolite:

  • With absolute encoder, angle measurements can be saved when power off
  • Compact design with wide LCD display facilitates numerical reading and operation
  • Minimum reading: 1"/5"/10" or 0.2mgon/1mgon/2mgon
  • Repeated angle program which carries out continuous measuring and average calculating to get high accuracy angle value
  • Rechargeable battery and AA battery are available
  • Lower power consumption, longer working time with one battery



Features:

  1. Compact design with wide LCD display facilitates numerical reading and operation;
  2. With absolute encoder, angle measurements can be saved when power off;
  3.  Repeated angle program which carries out continuous measuring and average calculating to get high accuracy angle value;
  4. Rechargeable battery and AA battery are available;
  5. Lower power consumption, long working time with one battery.
Telescope
Image Erect
Objective aperture 45mm
Magnification 30x
Field of view 1°30'
Minimum focus 1.0m
Angle measurement
Reading system Absolute encoder
Minimum reading 1''/5''/10''
Accuracy  2''
Compensation range ±3'
Compensation setting accuracy 1''
Display
Display panel LCD on double sides
Illumination
Reticle  Yes
LCD display back light Yes
Level  senstitivity
Plate level 30''/2mm
Circular level 8'/2mm
Power supply 6V Li-ion battery/6V Ni-MH battery
/4pcs AA battery
Operation time 80hrs/24hrs/24hrs
Laser plummet(Standard)
Accuracy  ±1.0mm/1.5m
Laser class Class 2 / IEC60825-1
Laser wave 635nm
Optical plummet(Factory optional)
Accuracy  ±0.8mm/1.5m
Image Erect
Magnification 3x
Field of view
Focus range 0.5m to ∞
                                                             Other
Serial interface RS-232C
Dimension 153x175x340mm
Instrument weight 4.5kg
Operation temperature -20°C~+50°C
Water&Dust production IP55


Download Brochure
