(item no. 3804934)

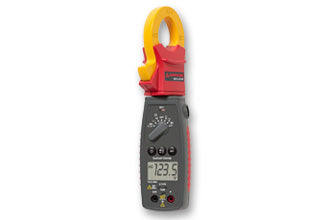

Amprobe’s new ACD-22SW Swivel™ Clamp Meter features a patented 180-degree rotating head clamp design allowing easy views of measurements in tight or inconvenient to reach places.
Simply rotate the body of the clamp meter to get an unobstructed view of the LCD display. Feature rich, measuring AC/DC currents, voltage, resistance and capacitance as well as CAT III 600V safety ratings make this clamp on meter something you should swivel to see.
Specifications
| FEATURE | ACD-20SW | ACD-21SW | ACD-21SWC* | ACD-22SW | ACD-23SW | BEST ACCURACY |
| True-rms | - | - | - | • | • | - |
| AC Current | 40.00 A , 400.0 A | +/- (2.0 % rdg + 10 dgts) 50 Hz → 60 Hz |
||||
| AC Voltage | 4.000 V, 40.00 V, 400.0 V, 600.0 V | +/- (1.2% rdg + 8 dgts) → 400 V Hz |
||||
| DC Voltage | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600.0 V | +/- (0.5% rdg + 2 dgts) | ||||
| Resistance | 400.0 ?, 4.000 k?, 40.00 k?, 400.0 k?, 4.000 M?, 40.00 M? | +/- (1.0% rdg + 4 dgts) at 400 ? → 400 k? ranges | ||||
| Capacitance | - | 4.000 µF, 40.00 µF, 400.0 µF, 4,000 µF |
- | 4.000 µF, 40.00 µF, 400.0 µF, 4,000 µF |
+/- (3.0 % rdg + 15 dgts) on 40 µF → 400 µF ranges |
|
| Temperature | - | -30 °F → 400 °F | -35 °C → 400 °C | - | -30 °F →400 °F, (-35 °C → 400 °C) | +/- (1 % + 2 °F) -4 °F → 400 °F +/- (1 % + 1 °C) 0 °C → 200 °C |
| Diode test | • | - | - | - | - | - |
| VolTect™ non-contact voltage detection | 70 V → 600 VAC (50 Hz → 60 Hz) | - | ||||
| Backlight | - | - | - | • | • | - |
| Accommodates conductors | Up to 1.18" (30 mm) in diameter | |||||
Download
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
(item no. 3804934)
Amprobe’s new ACD-22SW Swivel™ Clamp Meter features a patented 180-degree rotating head clamp design allowing easy views of measurements in tight or inconvenient to reach places.
Simply rotate the body of the clamp meter to get an unobstructed view of the LCD display. Feature rich, measuring AC/DC currents, voltage, resistance and capacitance as well as CAT III 600V safety ratings make this clamp on meter something you should swivel to see.
Specifications
| FEATURE | ACD-20SW | ACD-21SW | ACD-21SWC* | ACD-22SW | ACD-23SW | BEST ACCURACY |
| True-rms | - | - | - | • | • | - |
| AC Current | 40.00 A , 400.0 A | +/- (2.0 % rdg + 10 dgts) 50 Hz → 60 Hz |
||||
| AC Voltage | 4.000 V, 40.00 V, 400.0 V, 600.0 V | +/- (1.2% rdg + 8 dgts) → 400 V Hz |
||||
| DC Voltage | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600.0 V | +/- (0.5% rdg + 2 dgts) | ||||
| Resistance | 400.0 ?, 4.000 k?, 40.00 k?, 400.0 k?, 4.000 M?, 40.00 M? | +/- (1.0% rdg + 4 dgts) at 400 ? → 400 k? ranges | ||||
| Capacitance | - | 4.000 µF, 40.00 µF, 400.0 µF, 4,000 µF |
- | 4.000 µF, 40.00 µF, 400.0 µF, 4,000 µF |
+/- (3.0 % rdg + 15 dgts) on 40 µF → 400 µF ranges |
|
| Temperature | - | -30 °F → 400 °F | -35 °C → 400 °C | - | -30 °F →400 °F, (-35 °C → 400 °C) | +/- (1 % + 2 °F) -4 °F → 400 °F +/- (1 % + 1 °C) 0 °C → 200 °C |
| Diode test | • | - | - | - | - | - |
| VolTect™ non-contact voltage detection | 70 V → 600 VAC (50 Hz → 60 Hz) | - | ||||
| Backlight | - | - | - | • | • | - |
| Accommodates conductors | Up to 1.18" (30 mm) in diameter | |||||
