(item no. 3434877)

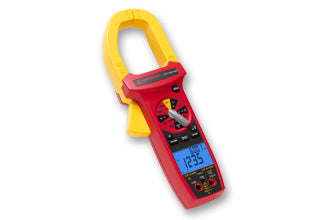

This CAT IV rated ACD-3300IND Clamp On Tester is ideal for industrial applications and utilities that require an extra level of safety. Including true-rms sensing for accuracy, this clamp on meter's extra large jaws can clamp on to those wide diameter wires making taking measurements in industrial environments simple.
Features
- True-rms
- Measures AC current up to 1000 AC A, voltage up to 750V AC / 1000V DC, frequency, resistance and capacitance and duty cycle
- Temperature to 1832°F or 1000℃
- Peak hold
- Audible continuity
- Auto and manual ranging
- Auto power off
- Data hold
- Backlight
- Diode test
- Duty cycle
- Bar-graph
- Accommodates conductors up to 2" (51mm) in diameter
- Safety CAT IV 600 V, CAT III 1000 V
- Test leads, battery (installed), users manual, carrying case and type-K thermocouple included with the product
Specifications
| FEATURE | ACD-3300 IND | ACDC-3400 IND |
| DC Voltage | 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V | |
| AC Voltage | 660.0 mV, 6.600V, 66.00V, 660.0V, 750V | |
| AC Current | 66.00 A, 660.0 A, 1000 A | |
| DC Current | – | 660.0 A, 1000 A |
| Resistance | 660.0 O, 6.600 kO, 66.00 kO, 660.0 kO, 6.600 MO, 66.00 MO | |
| Capacitance | 6.600 nF, 66.00 nF, 660.0 nF, 6.600 µF, 66.00 µF, 660.0 µF, 6.6 mF | |
| Frequency | 66.00 Hz, 660.0 Hz, 6.600 kHz, 66.00 kHz, 660.0 kHz, 1.000 MHz | |
| Continuity | • | |
| Temperature | -30 °F → 1832 °F (-35 °C → 1000 °C) | – |
| Accommodates conductors | Up to 2.0 (51 mm) in diameter | |
| Specifications | |
| DC Volts ranges: | 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V |
| Accuracy: | ± (0.5% rdg + 2 dgts) |
| Input impedance: | 660 mV: >100 MO; 6.6 V:10 MO; 66 V to 1000 V: 9.1 MO |
| Overload protection: | 1000 VDC or 750 VAC rms |
| AC Volts True-rms range: | 6.600V, 66.00V Frequency 50 to 500 Hz |
| Accuracy: | ± (1.5% rdg + 8 dgts) |
| AC Volts True-rms range: | 6.600V, 66.00V Frequency 50 to 500 Hz |
| Accuracy: | ± (1.5% rdg + 8 dgts) |
| AC Volts True-rms range: | 660.0V, 750V Frequency 50 to 500 Hz |
| Accuracy: | ± (1.5% rdg + 8 dgts) |
| Frequency* (*frequency: 10% to 100% of voltage range): | 50 to 1 kHz +/- (0.1% rdg + 5 dgts) |
| AC coupled True-rms: | 5% to 100% of range |
| Overload protection: | 1000 VDC or 750 VAC rms |
| Power: | Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22 |
| Jaw opening capability: | 57 mm (2.0 in) conductor |
