(item no. 4962665)

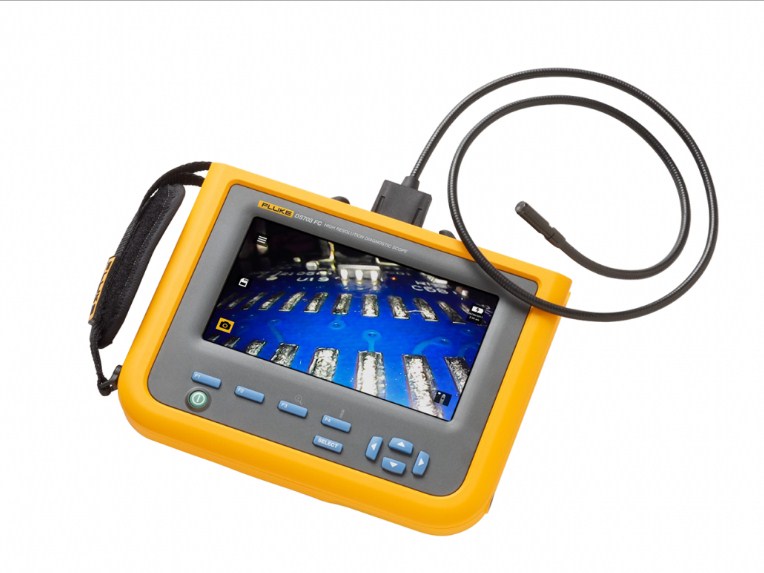

Product overview FLK-DS703
7” capacitive touch screen for accurate diagnostics in difficult to reach spaces. 720p video recording inspection camera. Adjustable LED lighting and digital zoom for quality images. Up is Up® technology rotates the display screen to allow for appropriate image display, regardless of the orientation of the probe.
Save time with the Fluke Connect® system
Wirelessly sync images directly from your diagnostic scope to the Fluke Connect® system, and attach to an asset record or work order. Having access to maintenance records simultaneously at the inspection site and from the office or an off-site location enables faster decision making and real-time collaboration between team members. You can also live stream images or videos from the diagnostic scope to a smartphone or PC.
Expand the flexibility of your videoscope with optional probes offering cameras that range in diameter from 3.8 MM to 8.5 MM and probes as long as 20 meters. Equip yourself the right probe for your environment.
Features
- High definition probe with dual-view camera
- Processing speeds that render a smooth, clear, consistent image
- 7” LCD screen for easy viewing
- Macro to micro zoom function
- Adjustable lighting to capture the best image
- Up is Up® technology for an appropriate orientation, regardless of the probe location
- Fluke Connect® allows you to save and share images directly from the diagnostic scope
Specifications: Fluke DS703 FC Diagnostic Scope
| Videoscope probe | |
| Length | 1.2 meter (3.94 feet) |
| Type | Detachable, semi-ridged, waterproof, immersible to 1 meter or more in depth |
| Diameter | 8.5 mm (0.33 inches), optional 3.8, 5.5 and 9 mm probes available |
| Material | Elastomer coated steel |
| Lighting | Adjustable LED, on front, one side |
| Illumination | 53 Lux |
| Up is Up™ Technology | Appropriate image display, regardless of the orientation of the probe, 8.5 MM, 1.2 M probe only |
| Camera | |
| Dual view camera, forward and side | |
| Resolution | 1200 x 720 (864,000 pixels) |
| Still image format | JPG |
| Video Recording Format | AVI |
| Video Output Format | MPEG compression |
| Digital zoom | Adjustable from 1x to 8x zoom |
| Field of view | 68° |
| Depth of field | 25 mm to infinity |
| Video resolution | 720 p |
| Minimum focus distance | 10 mm |
| Focus Type | Fixed |
| Rotation | 180° |
| Streaming video | Via HDMI and Fluke Connect™ |
| LCD Screen | |
| Touch Screen | Capacitive touch screen |
| Size | 7 inch (17.79 cm) |
| Refresh rate | 30 hz |
| UpisUp™ technology | Real-time upright adjustment for image |
| LED backlight | Adjust display brightness for optimal viewing |
| Communication | |
| Wireless Interface | WiFi 802.11b/g/n, Range: 33 feet (10.06 meters) |
| Data Transfer | USB and micro HDMI cable |
| Fluke Connect™ | Save and share images directly from the Videoscope. Attach images or video to an asset record or work order. |
| Instant upload to the cloud | Yes, with Fluke Connect™ |
| General Features | |
| Color palettes | Visible light, grayscale or inverted |
| Internal memory | 6 GB |
| Physical buttons | Intuitive, easy to navigate button technology, 4 functional keys, 4 navigational, one capture or select button |
| Carrying case | Protective EVA case |
| Strap | Hand strap and neck strap |
| Power adapter | AC adapter/battery charger input |
| Battery | 6400mAh 3.7 volt rechargeable internal li-ion battery |
| Battery life | 3 hours at 50 % LED brightness |
| Dimensions | 6.98 x 8.85 inches (17.73 x 22.48 cm) |
| Weight | 1.95 lbs (0.88 Kg) |
| IP Rating | |
| Tablet | IP54, dust protected and protected against water projected from a nozzle |
| Probe | IP68, dust tight and immersion of 1 meter or more depth |
| Drop Test | 2 meter (6.56 feet) |
| Operating temperature | 0 °C to 45 °C (32 °F to 113 °F), 50 °C (113 °F) for less than 10 minutes |
| Storage temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating humidity | 90 % at 35 °C (95 °F) 75 % at 40 °C (104 °F) 45 % at 50 °C (122 °F) |
| Warranty | 2 years |
Probe Accessories Specifications
| Probe | Views | Up-is-Up | DS701-Display resolution | DS703-Display Resolution | Imager Resolution |
| Standard Probe. 8.5mm 1.2M | Dual | Yes | 800 X 600 | 1200 X 720 | 1280 x 720 |
| 3.8mm , 1M | Forward | X | 800 X 600 | 1200 X 720 | 720 x 488 |
| 8.5mm, 3M | Dual | Yes | 800 X 600 | 1200 X 720 | 1280 x 720 |
| 5.5mm, 1M | Dual | X | 800 X 600 | 1200 X 720 | 640 x 480 |
| 8.5mm UV, 1M | Dual | X | 800 X 600 | 1200 X 720 | 1280 x 720 |
| 9mm, 20M | Forward | X | 800 X 600 | 1200 X 720 | 720 x 488 |
Accessories:
- Fluke DS703 FC Diagnostic Scope
Resources: Fluke DS703 FC Diagnostic Scope
Manuals
- DS701, DS703 FC | Users manual
- DS701, DS703 FC | Users manual supplement
- DS701, DS703 FC | Safety sheet
- DS701, DS703 FC | Safety sheet supplement
- DS701, DS703 FC | Quick reference guide
- DS701, DS703 FC | Quick reference guide supplement
Brochures
Data Sheets
Application Notes
Download App
