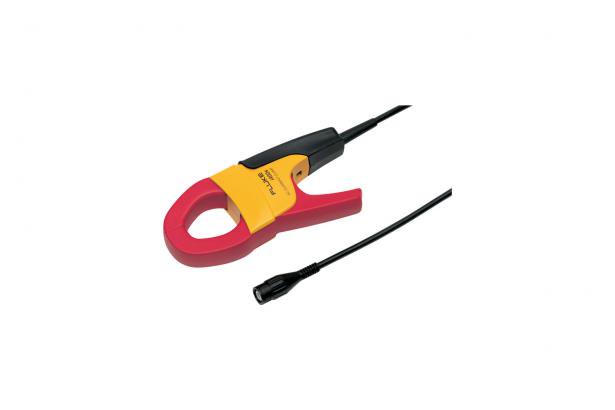

(item no. 2277202)
Product Overview
For use with digital multimeters, power quality analyzers, and portable oscilloscopes, this current clamp allows users to take accurate current measurements without breaking electric circuits. Additionally, it measures up to 400 A AC.
Features
- Designed to offer maximum utility in a compact shape
- Take accurate current readings without breaking the circuit
- Soft non-slippery over-mold handle
- CAT IV 600 V / CAT III 1000 V safety rating
Compatible with
- Fluke 114 Electrical Multimeter
- Fluke 117 Electrician's Multimeter with Non-Contact Voltage
- Fluke 434-II and 435-II Power Quality and Energy Analyzers
- Fluke 438-II Power Quality Analyzer and Motor Analyzer
- Fluke PQ400 Electrical Measurement Window
Specifications
| Electrical Specifications | |
| Nominal Current Range | 40 A Range: 0.5 to 40 A 400 A Range: 5 to 400 A |
| Basic Accuracy | 40 A Range: 2% + 0.015 A (45 to 400 Hz) 400 A Range: 2% + 0.04 A (45-400 Hz) |
| Phase Shift 40 A Range | 0.5 to 1 A: Unspecified 1 to 5 A: 4° 5 to 10 A: 3° 10 to 20 A: 3° 20 to 40 A: 2° 40 to 400 A: NA |
| Phase Shift 400 A Range | 0.5 to 1 A: NA 1 to 5 A: NA 5 to 10 A: Unspecified 10 to 20 A: 2° 20 to 40 A: 2° 40 to 400 A: 1.5° |
| Typical Bandwidth | 40 A Range: 5 to 10 kHz 400 A Range: 5 to 10 kHz |
| Output Level(s) | 40 A Range: 10 mV/A 400 A Range: 1 mV/A |
| Crest Factor | 40 A Range: ≤3 400 A Range: ≤3 to 300 A, ≤2.5 to 400 A |
| Mechanical and General Specifications | |
| Maximum Conductor Size | 1.25" (32 mm) |
| Output Cable Length | 8.2' (2.5 m) |
| BNC Adapter | Yes |
| Dimensions | 5.9 x 2.7 x 1.2" (150 x 70 x 30 mm) |
| Weight | 0.25 lb (114 g) |
| Safety Specifications | |
| Safety | CAT IV, 600 V, CAT III, 1000 V |
| Maximum Non-Destructive Current | 1000 V AC |
