Leica Lino L2P5-1 Laser Level Rugged pack & Lion battery pack

SKU: LG864431
£330.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

Leica Lino L2P5-1 Laser Level Rugged pack & Lion battery pack

Product Overview

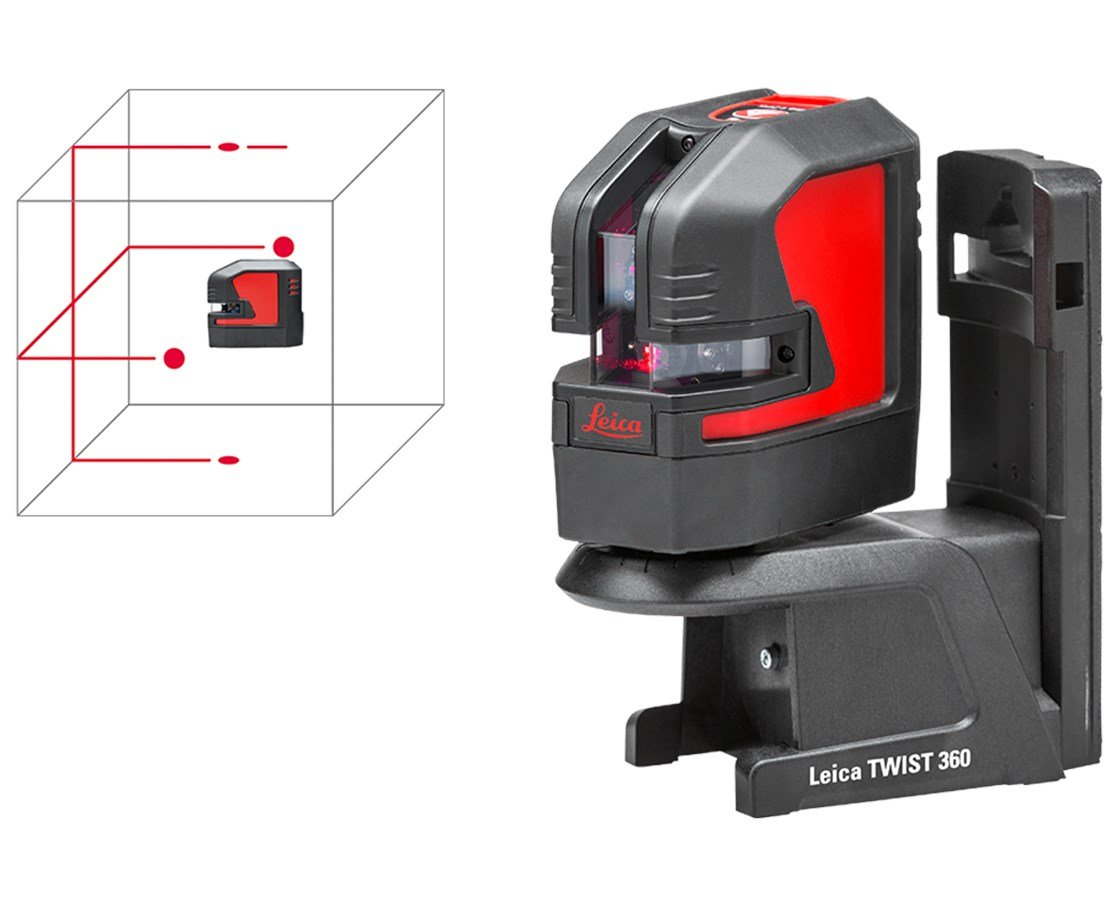

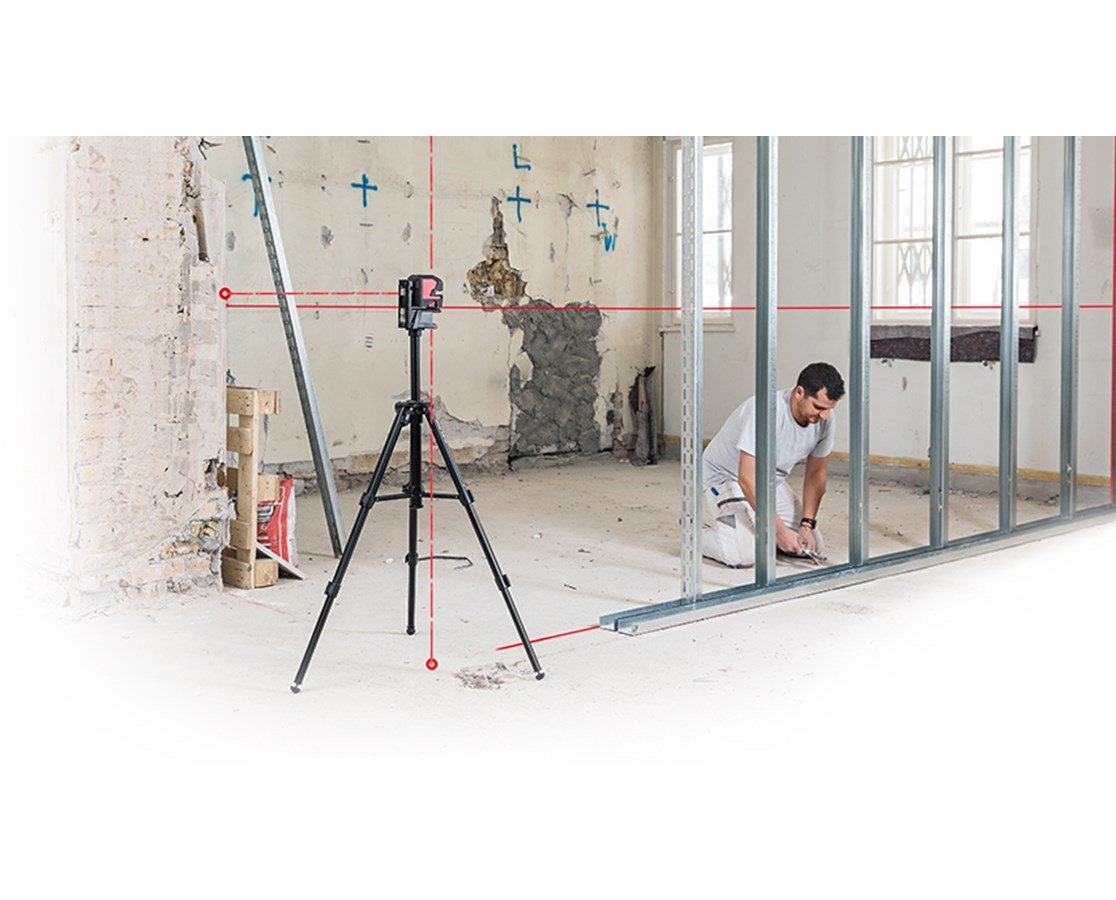

The Leica Lino L2P5 Point and Line Laser is an all-in-one cross line and point laser tool ideal for alignment tasks such as tiling, drywalling, partitioning and electrical installations as well as plumb point projection. It features optics that enable it to project very bright and clearly visible laser lines and dots. Its self-leveling capability allows it to automatically adjust its positioning when slightly out of level. This device is designed to fit special mounts for quick and easy positioning with absolute precision.

Depending on the lighting condition, it can have a working range of up to 25 meters. With the use of a laser receiver, the working range extends up to 80 meters. Its self-leveling accuracy is ± 0.2 mm with a range of ± 4 degrees and a self-leveling time of fewer than three seconds. It projects two laser lines and four laser dots at the directions vertical, horizontal, up, down, right, and left. This unit comes with a Twist 360 mount, Li-Ion battery, charger, alkaline battery tray, target plate, Quickstart, Calibration Certificate Blue, and a case.

This point and line laser are made of high-grade fiberglass-reinforced materials which makes it perfect for outdoor and construction use. The optics are protected by a high-grade aluminium frame and impact-absorbing rubber components. It is also dust and water resistant with an IP 54 protection.



Features

  • Projects very bright laser
  • Self-leveling
  • Working range: 25m
  • Self-leveling accuracy: ± 0.2mm
  • Self-leveling range: ± 4°
  • High-grade fiberglass-reinforced materials
  • Dust and water resistant
  • IP 54 protection
  • Includes mounts and other accessories
  • Compatible with Twist 360 mount
  • Includes a carrying case

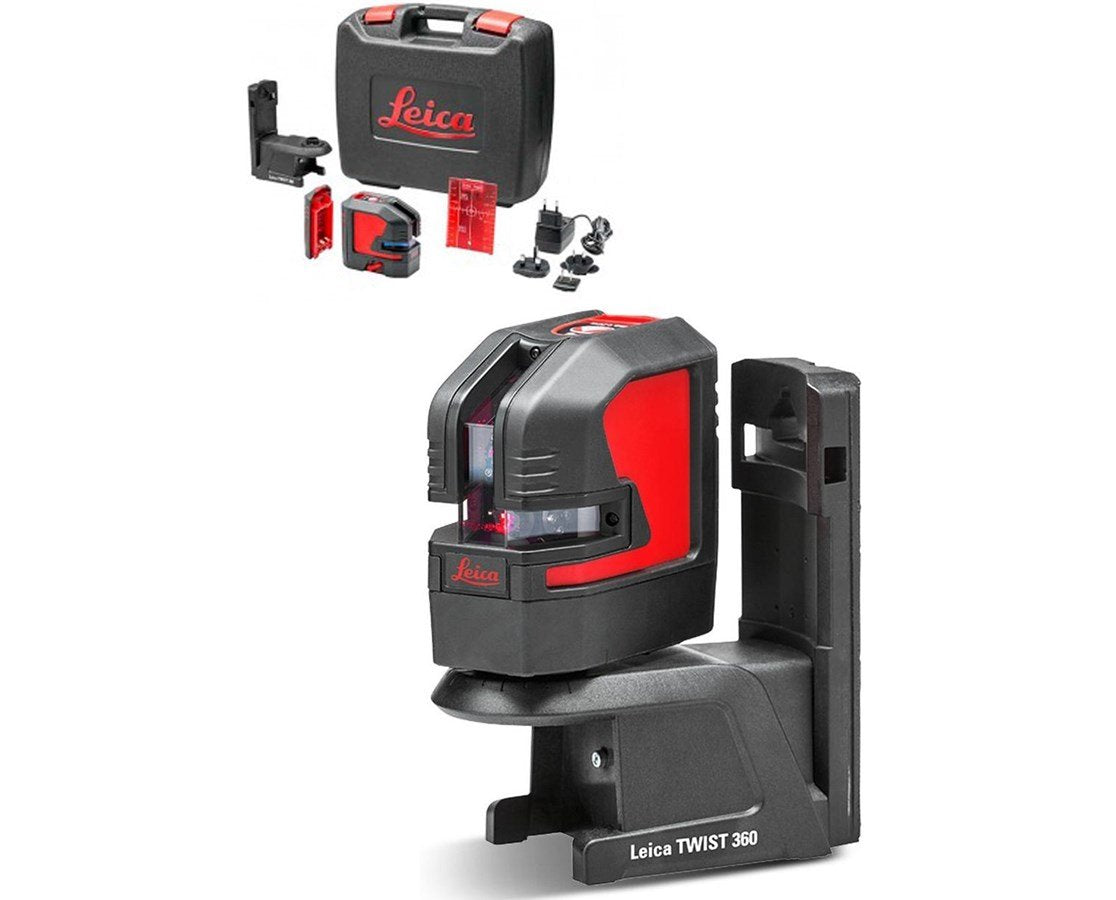

Includes

  • Leica Lino L2P5 Point and Line Laser 864431
  • Target Plate
  • Twist 360 Mount
  • Li-Ion Battery
  • Charger
  • Alkaline Battery Tray
  • Case



Specifications

General
Weight 1.2 lbs
Laser Type 635 nm
Dimensions 4.45" x 2.4" x 4"
Laser Class 2
Measuring Capabilities
Leveling Accuracy ± 0.2 mm
Working Range 25 m
Vertical Accuracy ± 0.2 mm
Self-Leveling Range ± 4°
Range with Receiver 80 m
Number of Points 4
Number of Lines (Planes) 2
Beam Direction Vertical, horizontal, up, down, right, left
Horizontal Accuracy ± 0.2 mm
Plumb Accuracy ± 0.2 mm
Battery/Power
Operating Temperature -10 to 50°C (14 to 122°F)
Storage Temperature -25 to 70°C (-13 to 158°F)
Operating Time up to 44 hrs
Power Source Li-Ion rechargeable
Applications
Transferring Points from Floor to Ceiling Yes
Installing Windows and Partition Walls Yes
Transferring Points from Wall to Wall Yes
Installing Drop Ceilings and Lights Yes
Flooring and Tile Layout Yes
Ceiling Joist and Rafter Alignment Yes
Diagonals and Footings for Patios Yes
Stud Plumbing and Alignment Yes
Installing Plumbing Pipes and Conduit Yes
Functions
Plumbing Up and Down Yes
Setting out Right Angles Yes
Horizontal Leveling Yes
Vertical Aligning Yes
Vertical and Horizontal Aligning Yes
Aligning at an Angle Yes
Features
Tripod Thread 1/4"
Environmental Class IP54
Self-Leveling Yes

Download Brochure
