- CAT IV 600V and CAT III 1000V

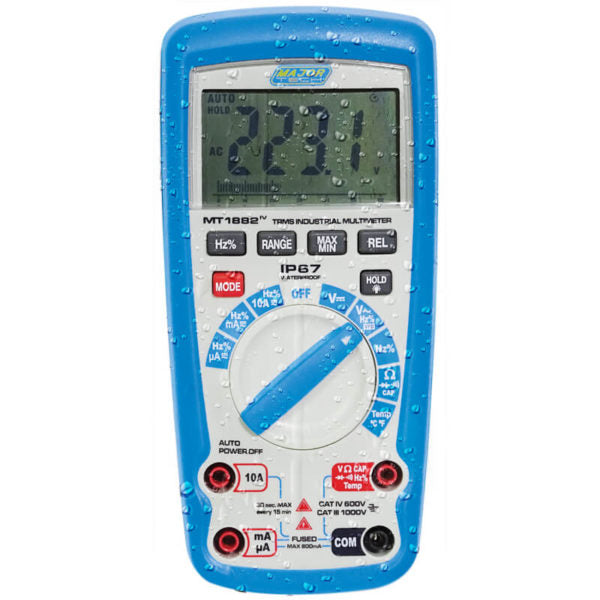

- IP67 Dust & waterproof with O-ring sealed casing
- Measures AC and DC voltage to 1000V
- Variable Frequency Drive
- Capacitance to 60mF
- -20°C to 1000°C Temperature Measurement
- Relative mode
- Measures frequency range of 10Hz to 10MHz on electronic and electrical circuits
- 6000 Count LCD display
- 61 segment analogue bargraph

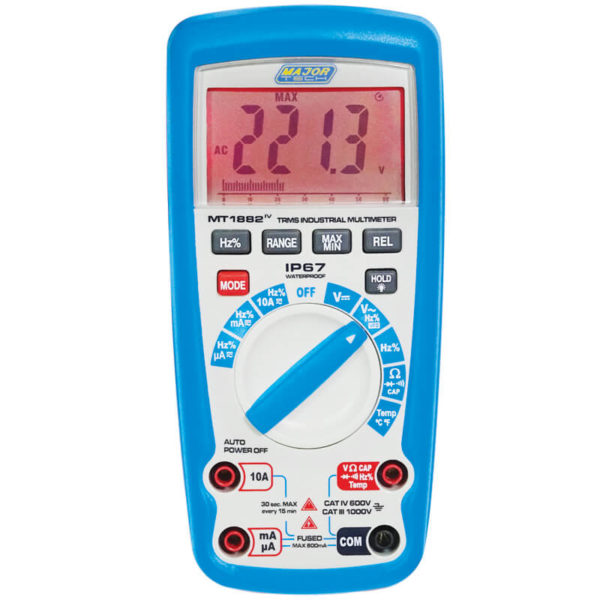

- Non-contact voltage detector above 110V AC, LCD turns red

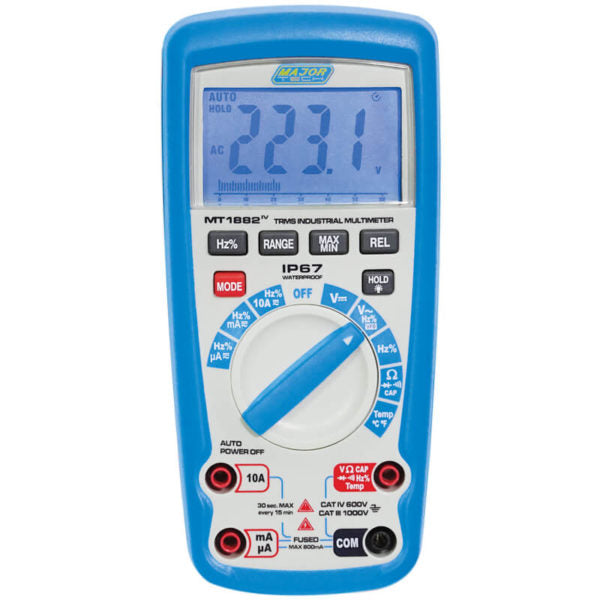

- Blue back light for dimly lit areas
- Auto range with manual override
- MIN / MAX / Data hold
- Full ranges protection & Auto power off
- Overmould rubber housing & Integrated test lead holder

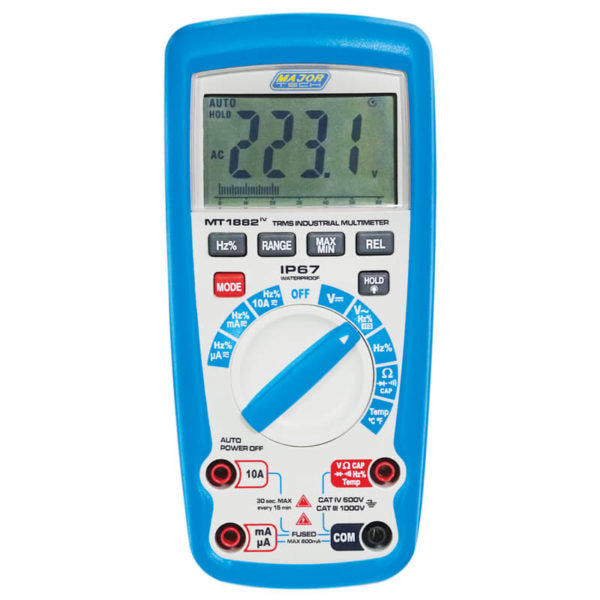

The MT1882 is a True RMS professional multimeter especially designed for everyday use by HVAC technicians and electricians, whist offering voltage measuring ranges up to 1000V AC and DC and with useful measuring ranges of Temperature, Resistance, AC/DC Current, Capacitance and Frequency. NCV function, automatic Non-Contact voltage detection, the LCD backlight will glow red when AC voltage above 110V is sensed. The large 6000 count backlit LCD display with a 61 segment bargraph ensures that readings are easy to read under all circumstances. The meter has been designed that should a user turn the rotary switch in any direction whilst and input of up to 1000V AC/DC is applied to the meter, the meter will not get damaged. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.
Specifications
| Function | Range | Resolution | Accuracy |
| DC Voltage | 600mV – 1000V | 1V | ±(0.5% + 5 Digits) |
| AC Voltage | 6V – 1000V | 1V | ±(0.8% + 4 Digits) |
| AC Voltage (VFD) | 50V – 600V | 0.1V | ±(4.0% + 9 Digits) |
| DC Current | 600uA – 10A | 0.01A | ±(1.0% + 3 Digits) |
| AC Current | 600uA – 10A | 0.01A | ±(1.5% + 3 Digits) |
| Resistance | 600Ω – 60MΩ | 0.01MΩ | ±(0.8% + 2 Digits) |
| Capacitance | 60nF – 60mF | 0.01mF | ±(4.0% + 5 Digits) |
| Temperature | -20°C – 1000°C | 1°C | ±(3.0% + 5°C Digits) |
| Frequency (Electronic) | 9.999Hz – 10MHz | 0.01MHz | ±(1.0% + 5 Digits) |
| Frequency (Electrical) | 10 ~ 1KHz | 0.0Hz | ±(1.5% reading) |
| Duty Cycle | 0.1% – 99.9% | 0.1% | ±(1.2% + 2 Digits) |
| AC Response | True RMS | ||
| Digital Display | 6000 Count | ||
| Bargraph | 61 Segmented | ||
| Continuity Test | Audible signal if the resistance is approx. 50Ω or less | ||
| Diode Test | Test current 0.9mA typical, open circuit voltage 3.2V DC typical | ||
| Non-Contact Voltage | Detection above 110V AC, LCD display turns red | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | IP67 Dust & Waterproof Double Moulded | ||
| Battery | 9V | ||
| Dimensions | 187 x 81 x 50mm | ||
| Weight | 342g | ||
Safety Ratings
Includes:

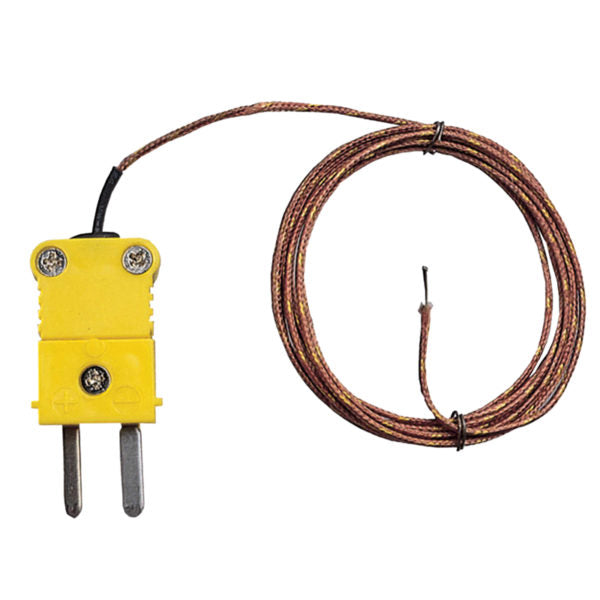

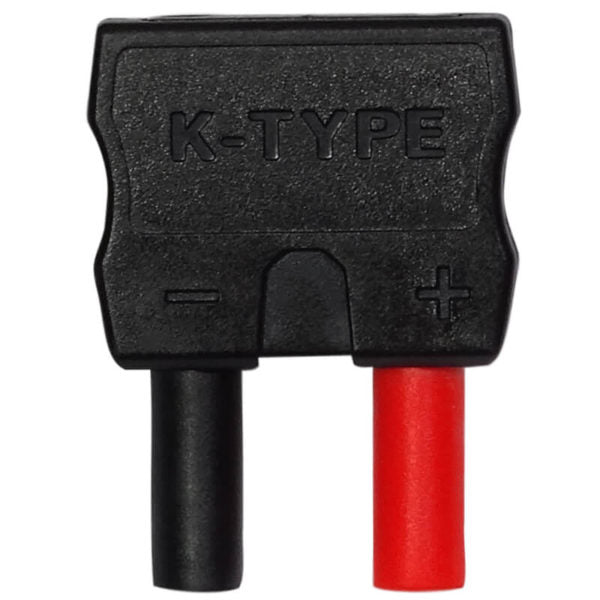

- Type K Temperature Probe

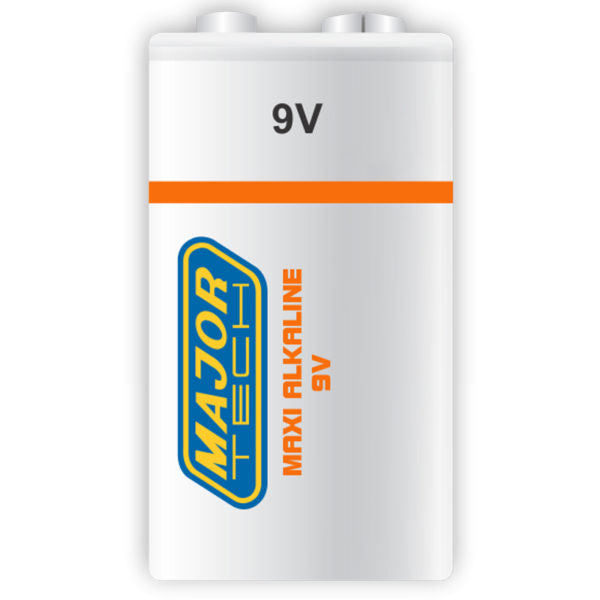

- 9V Battery

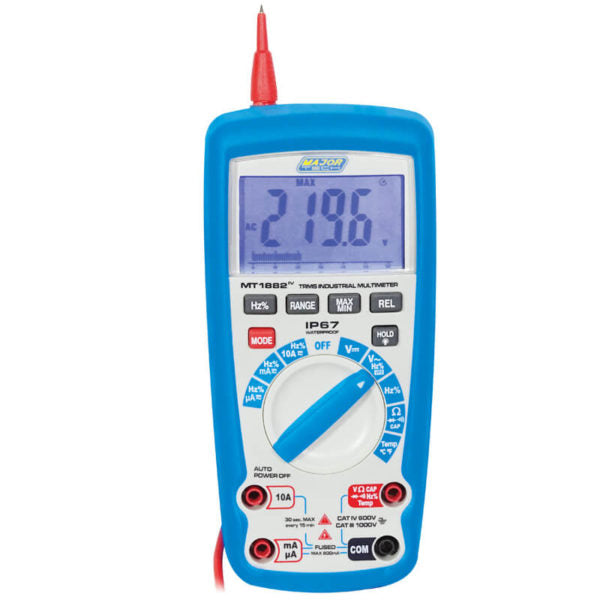

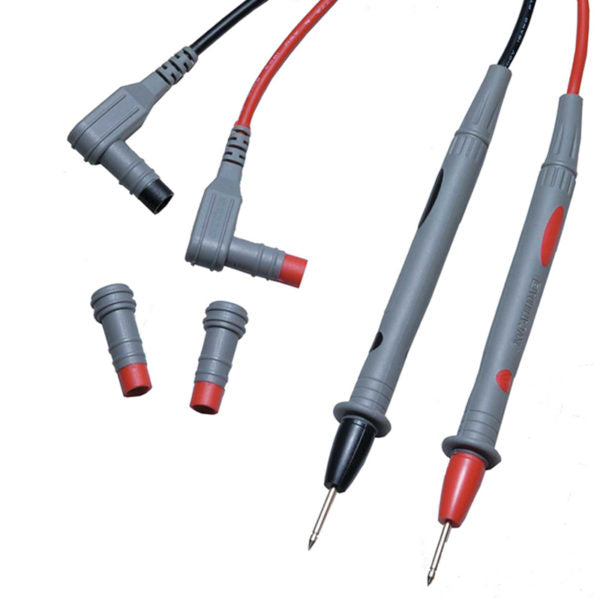

- MT810 Test Leads
- Instruction Manual
