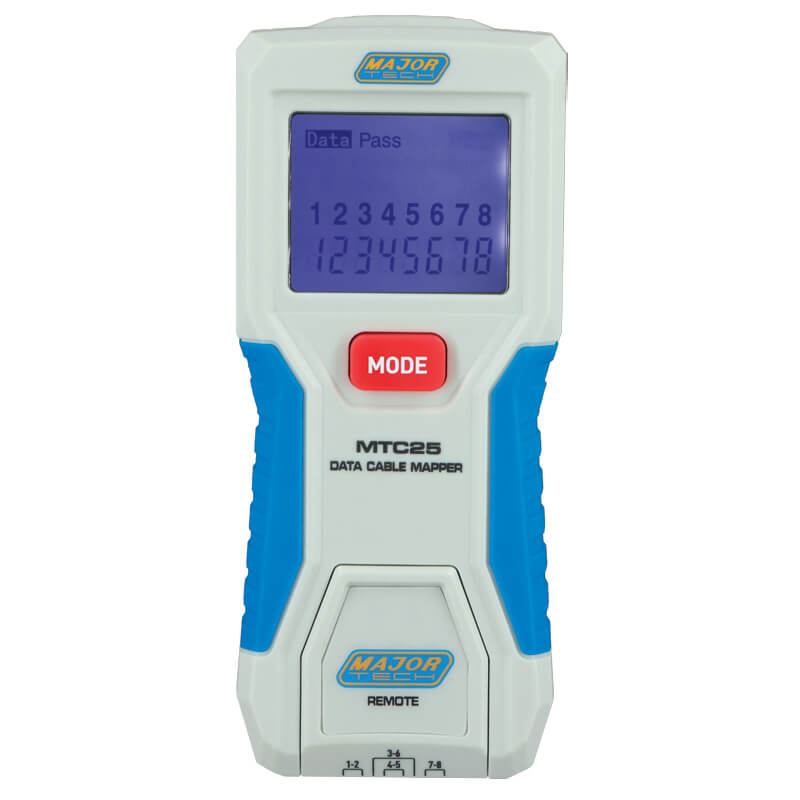

The MTC25 Data Cable Tester maps out connections, verifies wiring and displays faults on RJ45 terminated cables. The quick test function can identify Open, Short and Miswire and Split pair connection faults. A built-in tone generator with three tone levels Lo, Hi1 and Hi2 can be used with the optional MTC40 tone probe for tracing and locating cables in wiring closets and patch panels.
- Cable tester tests data RJ45 terminated cables with clearly defined results
- Measures cable length up to 305m
- Tests Open, Short, Miswire or Split-Pair faults
- Backlit LCD screen displays wiremap and test results
- Traces cables, wire pairs and individual conductor wires with multiple style tone generator
- Includes voltage warning, shielded detection and detachable remote
- Auto power off and low battery indication
- Optional MTC40 Tone & Probe Generator
Specifications:
| Functions | Range |
| Cable Type | Shielded or unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 3 |
| Maximum Cable Length | 305m |
| Minimum Cable Length for Split Pairs | 0.5m |
| Maximum Cable Resistance | 100 ohms maximum DC |
| Maximum Voltage between any Two Pins without Damage | 60V DC or 55V AC |
| Dimensions | 127 x 55 x 28mm |
| Weight | 126g |
Accessories:
- Batteries
- Instruction Manua
