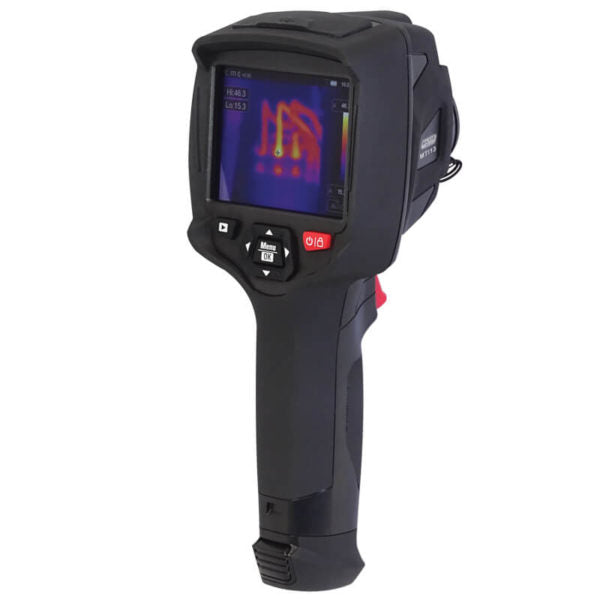

Major Tech MTi13 80x80px Thermal Imager

SKU: MTi13
£1,525.00

Freight Charge for orders under $300 ex. GST / Free delivery for orders which exceed $300 ex. GST.

• If you require your order urgently, then you can choose express delivery - price TBC at point of sale.

You are most welcome to use your own courier if preferred and there is no admin fee for this.

Checkout Secure
Need more info? Call us +61 8 9335 1718
  • 80×80 Pixel Thermal Detector
  • 6,400 points real temperature
  • 50Hz Image Frequency
  • Hot, Cold and Centre Spot Temperature
  • 3 Area and 2 Line Analysis
  • 3 Manual Spots
  • Hot, Cold and Centre Spot Temperature
  • 3.5” TFT LCD display, Touch Screen
  • Instant share & save via WiFi to PC, iOS and Android smart devices
  • Colour Pallets include Iron, Rainbow, Grey, Grey Inverted, Brown,
  • Blue/Red, Feather, Zone Alarm
  • Rugged and industrial design casing
  • Easy to use function

Detecting a hot connection in a distribution board has never been this easy. The MTi13 is focus free and has a large touch screen that makes detecting and analyzing hot spots quick and easy. This lightweight thermal imager with 80×80 pix resolution at 50Hz offers real-time detection of hot spots ideal for maintenance electricians. The Wi-Fi functionality allows the user to transfer live thermal information to a smart device for analysis. It features adjustable emissivity, temperature ranges from -20°C to 650°C, 3 moveable spots and area temperatures, centre spot, automatic Hot and Cold spot markers; and line measurement. The instrument comes supplied in a hard carry case and includes a charging base, microSD card and Type-C data cable.

Specifications

Function Range
Imaging and Optical Data
Field of View 21° x 21°
Spatial Resolution (IFOV) 4.53mrad
Thermal Sensitivity/NETD 0.05°C at 30°C (86°F) / 50mK
Image Range 50Hz
Focus Mode Auto Focus
Zoom 1 -32 x continuous, digital zoom
Focal Length 7,5mm
Focal Plane Array (FPA) / Spectral Range Uncooled microbolometer / 8-14μm
IR Resolution 80 x 80
Image Presentation
Display 3.5″ LCD, 640 x 480 pixels
Image Modes IR Image, Pic-in Pic, Visual image, Fusion
Picture in Picture IR area on visual image or visual image on IR
Colour Pallets Iron, Rainbow, Grey, Grey inverted, Brown, Blue/Red, Hot/Cold, Feather, Above, Below & Zone Alarm
Measurement
Temperature Range Low -20°C to 150°C, High 0°C to 650°C
Temperature Accuracy ± (2°C or ± 2%)
Measurement Analysis
Spot Centre spot, 3 Adjustable Spots
Line 2 lines (horizontal or vertical)
Area 3 Area with max/min/average
Automatic Hot/Cold detection Auto hot or cold markers
Emissivity Correction Variable 0.01 to 1.0, Standard Emissivity Table
Measurement Corrections Emissivity, Reflective temp, Ambient temp, Distance compensation, Relative humidity, Infrared compensation
Storage
Videos 4Gbytes Micro SD card
Videos Format Standard MPEG-4 encode, 640×480 at 30fps, on memory card >60 minutes
Videos Storage Mode IR/Visual images: simultaneous storage of IR and visual images
Images Format Standard JPEG, or HIR files including measurement data, on memory card >6000 pictures
Image Storage Mode IR/Visual images: simultaneous storage of IR and visual images
Digital Camera
Built-in 2 Megapixels
Built-in Digital Lens Data FOV 65°
Data Communications Interfaces
Interfaces USB-Type C
USB Data and Live Video transform between camera and PC
Wi-Fi 802.11, transfer images and Realtime video stream
Enclosure Over Moulded casing
Input System DC 5V
Power Source Lithium-ion, 4 hours operating time
Charging System In camera (AC adapter)
Weight 500g
Dimensions 224 x 77 x 96mm
Safety Specs EN61010-1



Includes:

  • Hard Carry Case
  • Rechargeable Battery
  • Charging Base
  • MicroSD Card
  • Type-C Data Cable
  • Instruction Manual







Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

  • 80×80 Pixel Thermal Detector
  • 6,400 points real temperature
  • 50Hz Image Frequency
  • Hot, Cold and Centre Spot Temperature
  • 3 Area and 2 Line Analysis
  • 3 Manual Spots
  • Hot, Cold and Centre Spot Temperature
  • 3.5” TFT LCD display, Touch Screen
  • Instant share & save via WiFi to PC, iOS and Android smart devices
  • Colour Pallets include Iron, Rainbow, Grey, Grey Inverted, Brown,
  • Blue/Red, Feather, Zone Alarm
  • Rugged and industrial design casing
  • Easy to use function

Detecting a hot connection in a distribution board has never been this easy. The MTi13 is focus free and has a large touch screen that makes detecting and analyzing hot spots quick and easy. This lightweight thermal imager with 80×80 pix resolution at 50Hz offers real-time detection of hot spots ideal for maintenance electricians. The Wi-Fi functionality allows the user to transfer live thermal information to a smart device for analysis. It features adjustable emissivity, temperature ranges from -20°C to 650°C, 3 moveable spots and area temperatures, centre spot, automatic Hot and Cold spot markers; and line measurement. The instrument comes supplied in a hard carry case and includes a charging base, microSD card and Type-C data cable.

Specifications

Function Range
Imaging and Optical Data
Field of View 21° x 21°
Spatial Resolution (IFOV) 4.53mrad
Thermal Sensitivity/NETD 0.05°C at 30°C (86°F) / 50mK
Image Range 50Hz
Focus Mode Auto Focus
Zoom 1 -32 x continuous, digital zoom
Focal Length 7,5mm
Focal Plane Array (FPA) / Spectral Range Uncooled microbolometer / 8-14μm
IR Resolution 80 x 80
Image Presentation
Display 3.5″ LCD, 640 x 480 pixels
Image Modes IR Image, Pic-in Pic, Visual image, Fusion
Picture in Picture IR area on visual image or visual image on IR
Colour Pallets Iron, Rainbow, Grey, Grey inverted, Brown, Blue/Red, Hot/Cold, Feather, Above, Below & Zone Alarm
Measurement
Temperature Range Low -20°C to 150°C, High 0°C to 650°C
Temperature Accuracy ± (2°C or ± 2%)
Measurement Analysis
Spot Centre spot, 3 Adjustable Spots
Line 2 lines (horizontal or vertical)
Area 3 Area with max/min/average
Automatic Hot/Cold detection Auto hot or cold markers
Emissivity Correction Variable 0.01 to 1.0, Standard Emissivity Table
Measurement Corrections Emissivity, Reflective temp, Ambient temp, Distance compensation, Relative humidity, Infrared compensation
Storage
Videos 4Gbytes Micro SD card
Videos Format Standard MPEG-4 encode, 640×480 at 30fps, on memory card >60 minutes
Videos Storage Mode IR/Visual images: simultaneous storage of IR and visual images
Images Format Standard JPEG, or HIR files including measurement data, on memory card >6000 pictures
Image Storage Mode IR/Visual images: simultaneous storage of IR and visual images
Digital Camera
Built-in 2 Megapixels
Built-in Digital Lens Data FOV 65°
Data Communications Interfaces
Interfaces USB-Type C
USB Data and Live Video transform between camera and PC
Wi-Fi 802.11, transfer images and Realtime video stream
Enclosure Over Moulded casing
Input System DC 5V
Power Source Lithium-ion, 4 hours operating time
Charging System In camera (AC adapter)
Weight 500g
Dimensions 224 x 77 x 96mm
Safety Specs EN61010-1



Includes:

  • Hard Carry Case
  • Rechargeable Battery
  • Charging Base
  • MicroSD Card
  • Type-C Data Cable
  • Instruction Manual
