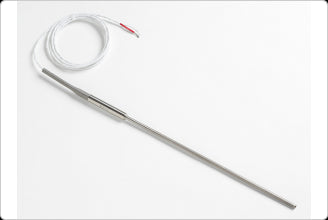

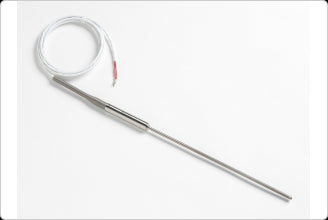

5615 Secondary Reference Temperature Standards,100 OHM, Cable LEN

(item no. 3002991, 3003004, 3003019, 3003028, 3003037, 3003043, 3003055, 3003062, 3055425, 3376938)

Affordable wide-range accuracy
Calibrated accuracy ± 0.012 °C at 0 °C
Reference-grade platinum sensing element
NVLAP-accredited calibration included, lab code 200706-0

For years, you’ve relied on our 5612, 5613, and 5614 Secondary Reference Probes. These field-durable, lab-accurate PRTs have been replaced by the 5615, which comes with a NVLAP accredited calibration.

The 5615-12 (formerly Hart Scientific) is a Platinum Resistance Thermometer (PRT) with an Inconel™ 600 sheath that’s 305 mm (12 in) long and 6.35 mm (0.250 in) in diameter. It is a secondary reference temperature standard designed to bridge the gap between the highest laboratory standards and industrial or second-tier lab locations. It has accuracy of ± 0.012 °C at 0.01 °C.

The element is constructed of reference-grade platinum wire (99.999 % pure) for excellent stability. The wire is wound in a coil and placed in a mandrel where it’s uniformly supported in a manner that virtually eliminates hysteresis. The electrical configuration is a four-wire current-potential hookup that eliminate the effects of lead-wire resistance.

These Inconel™-sheathed probes have a fully supported sensing element, making them more durable than SPRTs. The element is protected in an ultrahigh-purity ceramic case with a hermetic glass seal to improve output stability by locking out moisture and contaminants.

This probe comes calibrated with ITS-90 coefficients, making it compatible with many excellent readout devices, including Fluke Calibration’s 1529 Chub-E4, 1560 Black Stack, and 1502A Tweener. It bridges the gap between a 100-ohm industrial RTD and an SPRT.

For those needing faster thermal response, or where diameter and immersion depth are problems, order the 5615-9 or 5615-6. These probes are excellent reference probes for comparison calibrations in a Fluke Calibration dry-well. The sheaths of the 5615-6 and 5615-9 are 4.76 mm (0.188 in) in diameter.

A printout of sensor resistance is provided in 1 °C increments for each probe. The 5615-9 and 5615-12 are calibrated from –196 °C to 420 °C. The 5615-6 is calibrated to 300 °C.

We’ve tested many of the probes on the market. We’ve used them in our manufacturing facility and tested them in the lab, and this is an excellent secondary standards PRT. Other instruments on the market are priced much higher, have lower stability, or are of lower quality.

Remember, these are reliable instruments and each probe comes with its own individual NVLAP-accredited calibration, lab code 200706-0.

Specifications

Temperature range

5615-12 and 5615-9: –200 °C to 420 °C
5615-6: –200 °C to 300 °C

Nominal resistance at 0 °C

100 Ω ± 0.10 Ω

Temperature coefficient

0.0039250 Ω/Ω/°C

Accuracy^[1]

± 0.024 °C at –200 °C
± 0.012 °C at 0 °C
± 0.035 °C at 420 °CC

Short-term repeatability^[2]

± 0.009 °C at 0.010 °C

Drift^[3]

± 0.007 °C at 0.010 °C

Sensor length

28 mm (1.1 in)

Sensor location

6.9 mm ± 3.3 mm from tip (0.27 in ± 0.13 in)

Sheath dimensions

5615-6: 152 mm x 4.76 mm (6.0 in x 0.188 in)
5615-9: 229 mm x 4.76 mm (9.0 in x 0.188 in)
5615-12: 305 mm x 6.35 mm (12.0 in x 0.250 in)

Sheath diameter tolerance

± 0.127 mm (± 0.005 in)

Sheath material

Inconel™ 600

Minimum insulation resistance

1000 MΩ at 23 °C

Transition junction temperature range^[4]

–50 °C to 200 °C

Transition junction dimensions

71 mm x 13 mm dia (2.8 in x 0.5 in)

Maximum immersion length

5615-6: 102 mm (4 in)
5615-9: 178 mm (7 in)
5615-12: 254 mm (10 in)

Response time^[5]

9 seconds typical

Self heating (in 0 °C bath)

50 mW/°C

Lead-wire cable type

PTFE insulated with PTFE jacket, 22 AWG

Lead-wire length

183 cm (72 in or 6 ft)

Lead-wire temperature range

–50 °C to 200 °C

Calibration

NVLAP-accredited calibration included, lab code 200706-0. Please see calibration uncertainty table and its explanation of changeable uncertainties.

^[1] Includes calibration and 100 hr drift (k=2)

^[2] Three thermal cycles from min to max temp, includes hysteresis, 95 % confidence (k=2)

^[3] After 100 hrs at max temp, 95 % confidence (k=2)

^[4] Temperatures outside this range will cause irreparable damage. For best performance, transition junction should not be too hot to touch.

^[5] Per ASTM E 644

NVLAP† Calibration Uncertainty
Temperature	Expanded Uncertainty (k=2)
–196 °C	0.024 °C
–38 °C	0.011 °C
0 °C	0.010 °C
200 °C	0.018 °C
420 °C^‡	0.029 °C
Note: Calibration uncertainties depend on the uncertainties of the lab performing the calibration. Subsequent calibrations of this probe performed with different processes, at different facilities, or with changed uncertainty statements may state different uncertainties. †Lab code 200706-0 ‡5615-6 excluded

Model Name	Description
5615-6-X	Secondary Standard PRT, 4.76 mm x 152 mm (0.188 x 6.0 in), –200 °C to 300 °C, lead wire (cable) 6 ft (17025 accredited calibration included. Traceable to NIST standards.) X = termination. Specify “A" (INFO-CON for 914X), “B" (bare wire), “D" (5-pin DIN for Tweener Thermometers), “G" (gold pins), “J" (banana plugs), “L" (mini spade lugs), “M" (mini banana plugs), “P" (INFO-CON for 1523 or 1524), or “S" (spade lugs).
5615-9-X	Secondary Standard PRT, 4.76 mm x 229 mm (0.188 x 9.0 in), –200 °C to 420 °C, lead wire (cable) 6 ft (17025 accredited calibration included. Traceable to NIST standards.) X = termination. Specify “A" (INFO-CON for 914X), “B" (bare wire), “D" (5-pin DIN for Tweener Thermometers), “G" (gold pins), “J" (banana plugs), “L" (mini spade lugs), “M" (mini banana plugs), “P" (INFO-CON for 1523 or 1524), or “S" (spade lugs).
5615-12-X	Secondary Standard PRT, 6.35 mm x 305 mm (0.250 x 12.0 in), –200 °C to 420 °C, lead wire (cable) 6 ft (17025 accredited calibration included. Traceable to NIST standards.) X = termination. Specify “A" (INFO-CON for 914X), “B" (bare wire), “D" (5-pin DIN for Tweener Thermometers), “G" (gold pins), “J" (banana plugs), “L" (mini spade lugs), “M" (mini banana plugs), “P" (INFO-CON for 1523 or 1524), or “S" (spade lugs).

Model Name

Description

5615-6-X

Secondary Standard PRT, 4.76 mm x 152 mm (0.188 x 6.0 in), –200 °C to 300 °C, lead wire (cable) 6 ft

(17025 accredited calibration included. Traceable to NIST standards.)

X = termination. Specify “A" (INFO-CON for 914X), “B" (bare wire), “D" (5-pin DIN for Tweener Thermometers), “G" (gold pins), “J" (banana plugs), “L" (mini spade lugs), “M" (mini banana plugs), “P" (INFO-CON for 1523 or 1524), or “S" (spade lugs).

5615-9-X

Secondary Standard PRT, 4.76 mm x 229 mm (0.188 x 9.0 in), –200 °C to 420 °C, lead wire (cable) 6 ft

(17025 accredited calibration included. Traceable to NIST standards.)

5615-12-X

Secondary Standard PRT, 6.35 mm x 305 mm (0.250 x 12.0 in), –200 °C to 420 °C, lead wire (cable) 6 ft

(17025 accredited calibration included. Traceable to NIST standards.)

Accessories common to all models:

Accessory	Description
2601	Probe Carrying Case, Plastic

Product Manuals
5615 Platinum Resistance Thermometer User’s Guide (94.6 KB)

Brochures
Free Reference PRT with Portable Bath Purchase Redemption Form (329.23 KB)

Application Notes
Calculating Calibration Uncertainties in an Automated Temperature Calibration System (426.88 KB)
Establishment of a Secondary Temperature Calibration Laboratory (3.09 MB)
How to Calibrate an RTD or Platinum Resistance Thermometer (PRT) (652.16 KB)
Kalibrieren eines RTD oder Platin-Widerstandsthermometers (PRT) (German) (828.03 KB)
Comment étalonner unde sonde RTD ou sonde à résistance de platine (PRT) (French) (834.22 KB)
Cómo calibrar una RTD o un sensor de temperatura (Spanish) (819.7 KB)
Industrial temperature readout and probe selection guide (2.33 MB)
Anleitung zur Auswahl von Temperaturanzeigegeräten und Messfühlern für den Industrieeinsatz (German) (585.2 KB)
Guide de sélection des afficheurs et sondes de températures industrielles (French) (584.47 KB)
Guía para la elección de sonda y lectura de temperatura industrial (Spanish) (581.27 KB)
Руководство по выбору промышленных показаний и зонда температуры (Russian) (686.56 KB)
Guia de seleção de instrumento de leitura e sonda de temperatura industrial (Portuguese) (580.6 KB)
工业测温仪和探头选型指南 (Chinese) (253.92 KB)
Temperature Calibration Equipment: A Technician's Guide (1.62 MB)
Temperature measurement and calibration: What every instrument technician should know (1.65 MB)
Temperaturmessung und -kalibrierung (German) (650.54 KB)
Mesure et étalonnage thermique (French) (655.57 KB)
Medición y calibración de temperatura (Spanish) (651.42 KB)
English: Thermocouple App Notes Series, 1 of 4 - Thermocouple Fundamentals (2.5 MB)
Korean: 열전대 응용시리즈 첫번째 - 열전대의 기본사항 (2.28 MB)
German: Thermocouple App Notes Series, 1 of 4 - Grundlagen zu Thermoelementen (2.22 MB)
French: Thermocouple App Notes Series, 1 of 4 - L'essentiel des thermocouples (2.22 MB)
Spanish: Thermocouple App Notes Series, 1 of 4 - Nociones básicas de los termopares (2.22 MB)
Russian: Thermocouple App Notes Series, 1 of 4 - Основные сведения о термопаре (2.29 MB)
English: Thermocouple App Notes Series, 2 of 4 - How to Select Thermocouple Calibration Equipment (2.51 MB)
German: Thermocouple App Notes Series, 2 of 4 - Auswahl von Geräten zur Kalibrierung von Thermoelementen (2.21 MB)
French: Thermocouple App Notes Series, 2 of 4 - Guide de sélection d'équipement d'étalonnage de thermocouple (2.21 MB)
Russian: Thermocouple App Notes Series, 2 of 4 - Как выбрать оборудование для калибровки термопары (2.26 MB)
Spanish: Thermocouple App Notes Series, 2 of 4 - Cómo elegir un equipo de calibración de termopares (2.21 MB)
Why Use a Triple Point of Water? (1.19 MB)
Does Immersion Depth Really Matter? (745.44 KB)

Data Sheets
Automated 7380 Temperature Calibration Systems Technical Data (776.81 KB)
Secondary Reference Temperature Standards Technical Data (572.5 KB)

Papers / Articles
An Investigation into the Stability of Industrial Platinum Resistance Thermometers (262.44 KB)

Shipping

This Item Ships from Fremantle, Perth, Western Australia

Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

5615 Secondary Reference Temperature Standards,100 OHM, Cable LEN

(item no. 3002991, 3003004, 3003019, 3003028, 3003037, 3003043, 3003055, 3003062, 3055425, 3376938)

Affordable wide-range accuracy
Calibrated accuracy ± 0.012 °C at 0 °C
Reference-grade platinum sensing element
NVLAP-accredited calibration included, lab code 200706-0

A printout of sensor resistance is provided in 1 °C increments for each probe. The 5615-9 and 5615-12 are calibrated from –196 °C to 420 °C. The 5615-6 is calibrated to 300 °C.

Remember, these are reliable instruments and each probe comes with its own individual NVLAP-accredited calibration, lab code 200706-0.

Specifications

Temperature range

5615-12 and 5615-9: –200 °C to 420 °C
5615-6: –200 °C to 300 °C

Nominal resistance at 0 °C

100 Ω ± 0.10 Ω

Temperature coefficient

0.0039250 Ω/Ω/°C

Accuracy^[1]

± 0.024 °C at –200 °C
± 0.012 °C at 0 °C
± 0.035 °C at 420 °CC

Short-term repeatability^[2]

± 0.009 °C at 0.010 °C

Drift^[3]

± 0.007 °C at 0.010 °C

Sensor length

28 mm (1.1 in)

Sensor location

6.9 mm ± 3.3 mm from tip (0.27 in ± 0.13 in)

Sheath dimensions

5615-6: 152 mm x 4.76 mm (6.0 in x 0.188 in)
5615-9: 229 mm x 4.76 mm (9.0 in x 0.188 in)
5615-12: 305 mm x 6.35 mm (12.0 in x 0.250 in)

Sheath diameter tolerance

± 0.127 mm (± 0.005 in)

Sheath material

Inconel™ 600

Minimum insulation resistance

1000 MΩ at 23 °C

Transition junction temperature range^[4]

–50 °C to 200 °C

Transition junction dimensions

71 mm x 13 mm dia (2.8 in x 0.5 in)

Maximum immersion length

5615-6: 102 mm (4 in)
5615-9: 178 mm (7 in)
5615-12: 254 mm (10 in)

Response time^[5]

9 seconds typical

Self heating (in 0 °C bath)

50 mW/°C

Lead-wire cable type

PTFE insulated with PTFE jacket, 22 AWG

Lead-wire length

183 cm (72 in or 6 ft)

Lead-wire temperature range

–50 °C to 200 °C

Calibration

NVLAP-accredited calibration included, lab code 200706-0. Please see calibration uncertainty table and its explanation of changeable uncertainties.

^[1] Includes calibration and 100 hr drift (k=2)

^[2] Three thermal cycles from min to max temp, includes hysteresis, 95 % confidence (k=2)

^[3] After 100 hrs at max temp, 95 % confidence (k=2)

^[4] Temperatures outside this range will cause irreparable damage. For best performance, transition junction should not be too hot to touch.

^[5] Per ASTM E 644

NVLAP† Calibration Uncertainty
Temperature	Expanded Uncertainty (k=2)
–196 °C	0.024 °C
–38 °C	0.011 °C
0 °C	0.010 °C
200 °C	0.018 °C
420 °C^‡	0.029 °C
Note: Calibration uncertainties depend on the uncertainties of the lab performing the calibration. Subsequent calibrations of this probe performed with different processes, at different facilities, or with changed uncertainty statements may state different uncertainties. †Lab code 200706-0 ‡5615-6 excluded

Model Name	Description
5615-6-X	Secondary Standard PRT, 4.76 mm x 152 mm (0.188 x 6.0 in), –200 °C to 300 °C, lead wire (cable) 6 ft (17025 accredited calibration included. Traceable to NIST standards.) X = termination. Specify “A" (INFO-CON for 914X), “B" (bare wire), “D" (5-pin DIN for Tweener Thermometers), “G" (gold pins), “J" (banana plugs), “L" (mini spade lugs), “M" (mini banana plugs), “P" (INFO-CON for 1523 or 1524), or “S" (spade lugs).
5615-9-X	Secondary Standard PRT, 4.76 mm x 229 mm (0.188 x 9.0 in), –200 °C to 420 °C, lead wire (cable) 6 ft (17025 accredited calibration included. Traceable to NIST standards.) X = termination. Specify “A" (INFO-CON for 914X), “B" (bare wire), “D" (5-pin DIN for Tweener Thermometers), “G" (gold pins), “J" (banana plugs), “L" (mini spade lugs), “M" (mini banana plugs), “P" (INFO-CON for 1523 or 1524), or “S" (spade lugs).
5615-12-X	Secondary Standard PRT, 6.35 mm x 305 mm (0.250 x 12.0 in), –200 °C to 420 °C, lead wire (cable) 6 ft (17025 accredited calibration included. Traceable to NIST standards.) X = termination. Specify “A" (INFO-CON for 914X), “B" (bare wire), “D" (5-pin DIN for Tweener Thermometers), “G" (gold pins), “J" (banana plugs), “L" (mini spade lugs), “M" (mini banana plugs), “P" (INFO-CON for 1523 or 1524), or “S" (spade lugs).

Model Name

Description

5615-6-X

Secondary Standard PRT, 4.76 mm x 152 mm (0.188 x 6.0 in), –200 °C to 300 °C, lead wire (cable) 6 ft

(17025 accredited calibration included. Traceable to NIST standards.)

5615-9-X

Secondary Standard PRT, 4.76 mm x 229 mm (0.188 x 9.0 in), –200 °C to 420 °C, lead wire (cable) 6 ft

(17025 accredited calibration included. Traceable to NIST standards.)

5615-12-X

Secondary Standard PRT, 6.35 mm x 305 mm (0.250 x 12.0 in), –200 °C to 420 °C, lead wire (cable) 6 ft

(17025 accredited calibration included. Traceable to NIST standards.)

Accessories common to all models:

Accessory	Description
2601	Probe Carrying Case, Plastic
