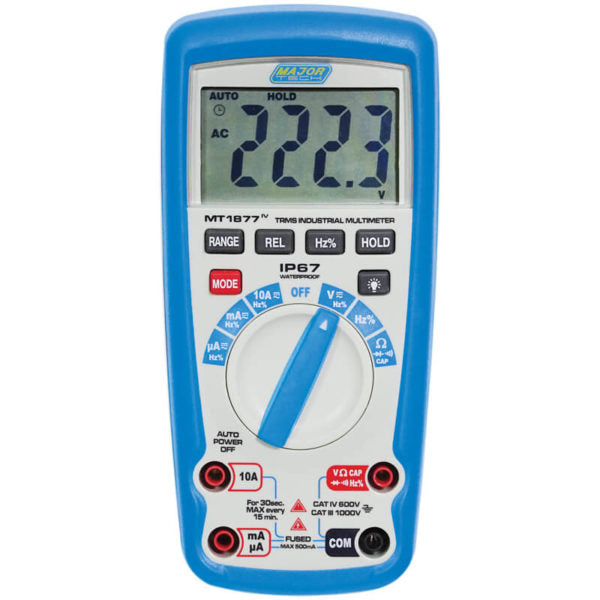

Major Tech MT1877 1000V AC/DC IP67 True RMS Multimeter

SKU: MT1877

Not Available

Freight Charge for orders under $300 ex. GST / Free delivery for orders which exceed $300 ex. GST.

• If you require your order urgently, then you can choose express delivery - price TBC at point of sale.

You are most welcome to use your own courier if preferred and there is no admin fee for this.

Need more info? Call us +61 8 9335 1718

  • CAT IV 600V and CAT III 1000V

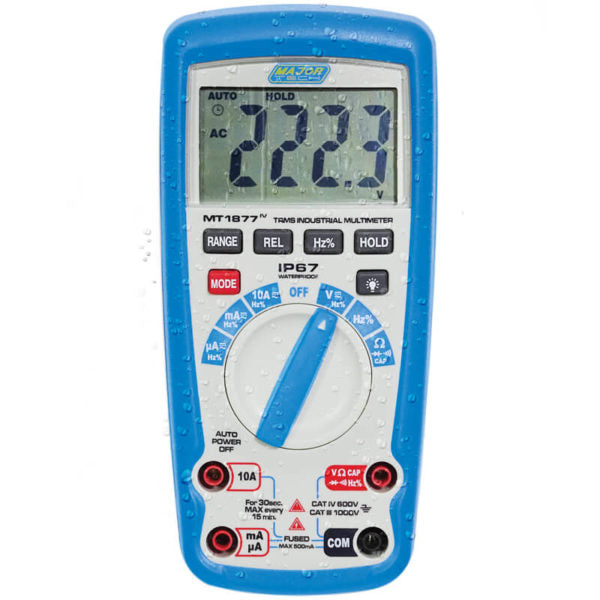

  • IP67 Dust & Waterproof double moulded housing
  • Measures AC and DC Voltage to 1000V
  • Measures Resistance up to 40MΩ
  • Measures Frequency range on Electronic and Electrical Circuits
  • Capacitance to 100µF

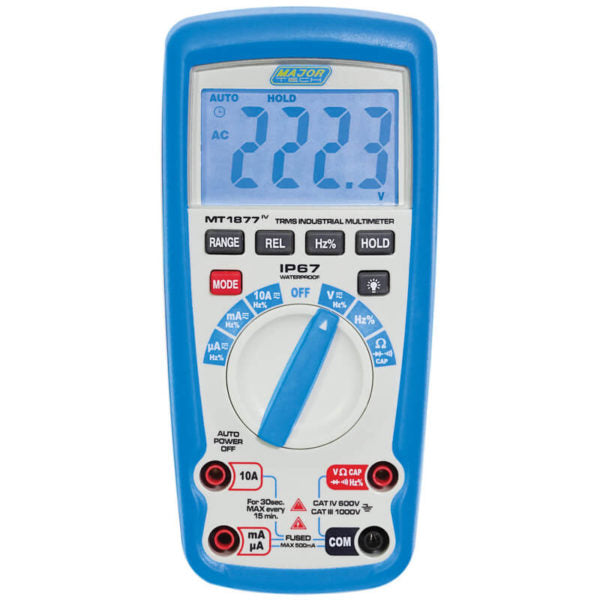

  • Blue back light for dimly lit areas

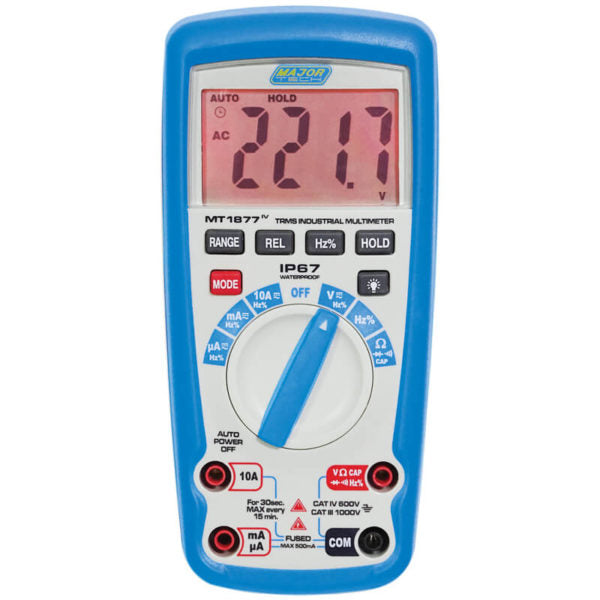

  • Non-contact voltage detector above 110V AC, the LCD turns red
  • Auto Range with Manual Override
  • Relative Mode
  • Data Hold
  • Duty Cycle
  • 4000 Count LCD
  • Full Ranges Protection
  • Auto Power Off
  • Integrated Test Lead Holder

The MT1877 Digital Multimeter is a 4000 count True RMS auto ranging multimeter, with manual override. This meters offers a great feature of measuring frequency on AC voltage and current with the range of 50Hz to 400Hz. The large LCD display with clear range annunciations and backlight ensure that readings are easy to read under all circumstances. This meter ensures that if the rotary switch is turned in any direction whilst signals less than 1000V AC/DC are input into the meter, the meter will not be damaged. It is even protected against measuring voltage if the knob is set on the ohms range accidentally. This meter is perfect for technicians in maintenance, facility maintenance, installation and production equipment maintenance.



Specifications

Function Range Resolution Accuracy
DC Voltage 400mV – 1000V 1V ±(0.5% + 5 Digits)
AC Voltage 400mV – 1000V 1V ±(0.8% + 8 Digits)
DC Current 400uA – 10A 10mA ±(1.0% + 3 Digits)
AC Current 400uA – 10A 10mA ±(1.5% + 3 Digits)
Resistance 400Ω – 40MΩ 10kΩ ±(0.8% + 2 Digits)
Capacitance 99.99nF – 99.99mF 0.01mF ±(4.0% + 5 Digits)
Frequency 9.999Hz – 10MHz 10KHz ±(1.0% + 5 Digits)
Duty Cycle 0.1% – 99.9% 0.1% ±(1.2% + 2 Digits)
AC Response True RMS
Digital Display 4000 Count
Continuity Test Audible signal if the resistance is approx. 50Ω or less
Diode Test Test current 1mA typical, open circuit voltage 3.2V DC typical
Non-Contact Voltage Detection above 110V AC, LCD display turns red
Data Hold Yes
Back Light Yes
Enclosure IP67 Dust & Waterproof Double Moulded
Battery 9V
Dimensions 182 x 82 x 55mm
Weight 375g



Safety Ratings



Includes:

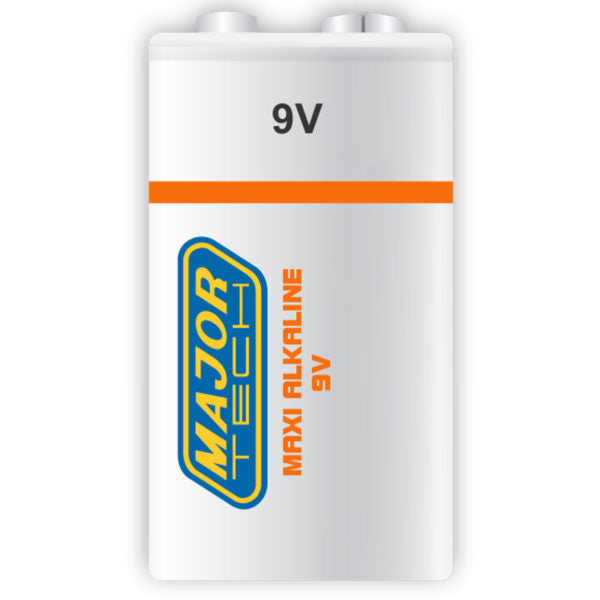

  • 9V Battery
  • Test Leads
  • Instruction Manual



Downloads

MT1877 Technical Datasheet MT1877 Instruction Manual
