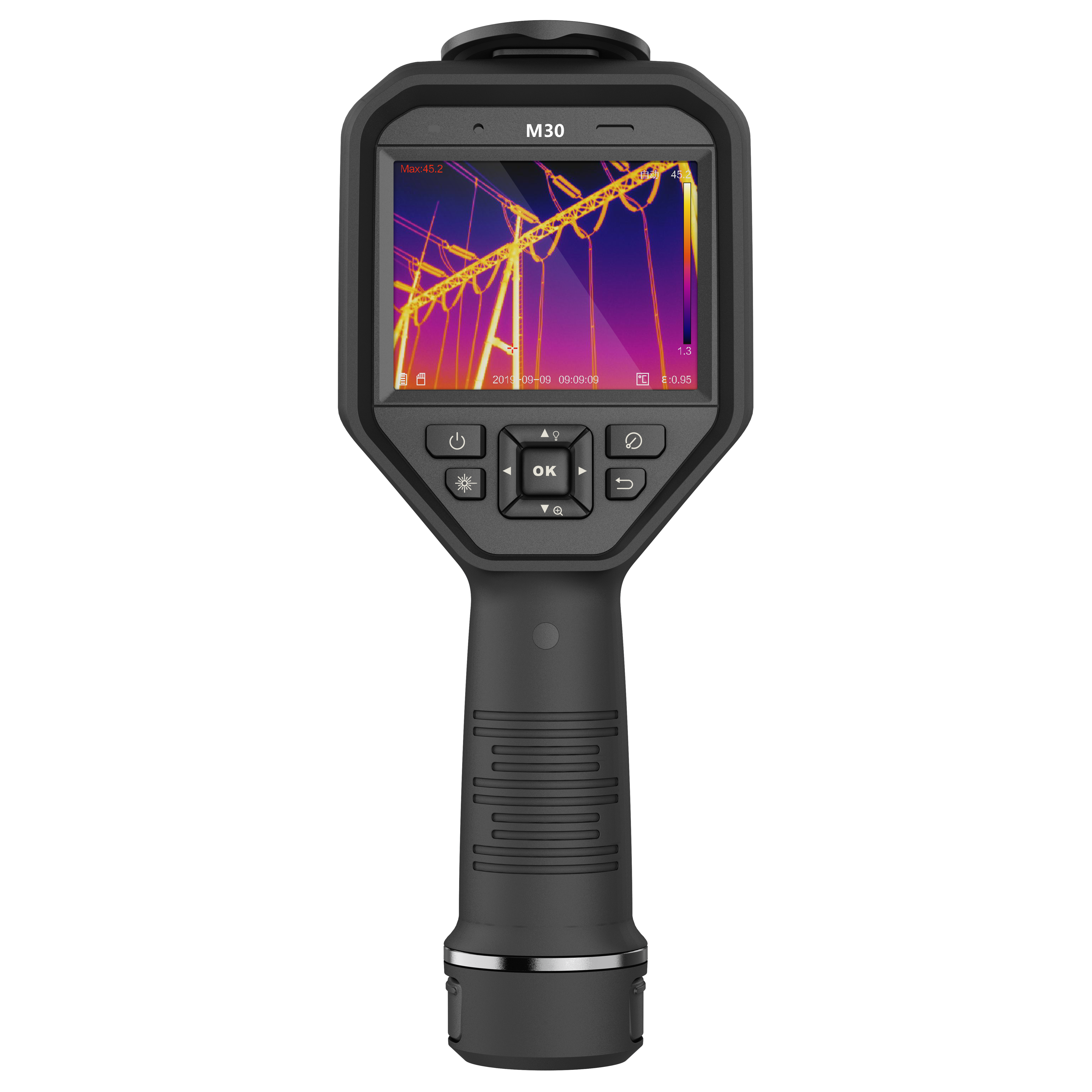

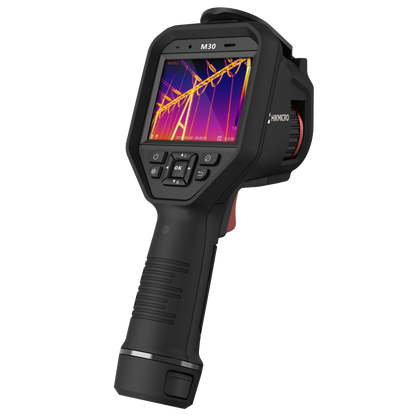

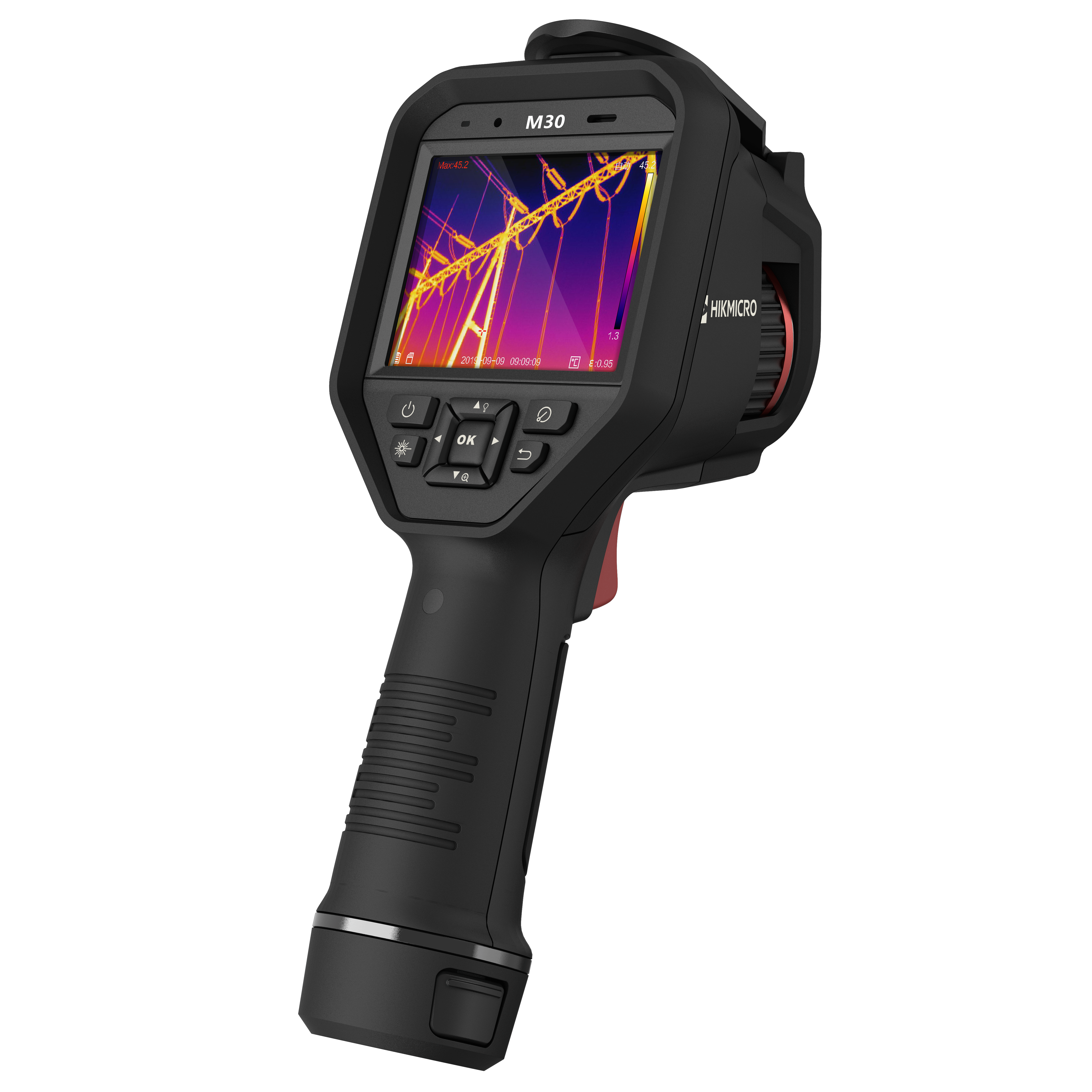

HIKMICRO M30 Thermal Imaging Camera with 384x288 (110,592 pixels) Thermal Resolution, Manual Focus 37.5 Degrees FOV, 8 MP Visual, 64GB SD Card,3.5 inch Touchscreen, WiFi, Dual Charger and 2 Batteries
- Thermal resolution: 384 x 288 (110,592 pixels)
- NETD: < 35mK (@ 25°C, F#=1.0)
- Temperature measurement range: -20°C - 550°C (-4°F - 1022°F）
- Accuracy: Max (±2°C or ±2%)
- Measurement Presets: Center spot, Hot spot, Cold spot, User Preset Point/Line/Area
- Manual focus
- 25 Hz image frequency
- 3.5" LCD touch screen display
The Thermographic Handheld Camera is a device with both optical images and thermal images. It can do thermography, video recording, snapshot capturing, alarm, and it can connect to Wi-Fi, hotspot and Bluetooth. The built-in high-sensitivity IR detector and high-performance sensor detects the variation of temperature and measure the real-time temperature. The picture-in-picture technique of the camera and the fusion of optical view and thermal view, enhances the details of the images display. It supports multiple palettes and alarm types. When the detected temperature in the scene does not match with the alarm rules, the device alarms by color of the palette mode automatically. It helps to find the risky part and lower your property loss.
The device is easy to use, and adopts ergonomic design. It is widely applied to substations, electricity prevention detection of companies, and reconnaissance survey of construction field.
Multiple Image Mode
You can choose to see only thermal, only optical, combined or picture in picture.
Highly Efficient Temperature Measurement
Highest Temperature
Lowest Temperature
Center Temperature
Highest Temperature, Lowest Temperature, Center Temperature. Custom 10 point/1 line/ 3 boxes. You can set the point or area where you want to measure the temperature.
Smart Isotherm
Isotherm (color highlights) help you highlight temperature area efficiently by 4 coloration type. For example, you can highlight temperature above 30 C (red), below 30 C (blue), between 35 C and 40 C (yellow), below 35 C (green) and 40 C (pink).
Real-time Screen Sharing with Phone
Hik-thermal provides customized parameter selection. Once the image is stored in the app, you can edit the way you want including colors, temperature type, measurement rules, display channels, and highlight types.
PC Offline Thermography Analysis Software
Once the image is transferred into the software, users can still add, delete or change by the way they want, such as colors, temperature type, measurement rules, display channels, and highlight types.
Manufacturer Specs
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| IR Resolution | 384 × 288 (110,592 pixels) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 - 14 μm |
| NETD | < 35mK (@ 25°C, F#=1.0) |
| Focal Length | 10 mm |
| FOV (Field of View) | 37.5° × 28.5 ° |
| Image Frequency | 25 Hz |
| Focus | Manual |
| IFOV (Spatial Resolution) | 1.7mrad |
| Aperture | F1.0 |
| Optical Module | |
| Picture Resolution | Configurable: 2 MP, 5 MP, 8 MP |
| Video Resolution | 640 × 480 |
| Focus | Fixed |
| FOV | 37.5° × 28.5° |
| Image Display | |
| Display | 640 × 480 Resolution, 3.5" LCD Touch Screen |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Image Modes | Thermal/Optical/Fusion/PIP |
| PIP | Thermal Picture in Optical Picture |
| Fusion | Thermal Picture and Optical Picture Combined |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max (±2°C, ±2%) |
| Measurement Presets | Center Spot, Hot Spot, Cold Spot, Off |
| Point | 10 User Presets |
| Line | 1 User Preset |
| Area | 3 User Presets |
| High Temperature Alarm | Audible Warning |
| Color Alarm (Isotherm) | Above/Below/Interval/Insulation |
| Storage | |
| Storage Media | Removable Micro SD Card (64 GB) |
| Image Storage Capacity | 120,000 Images |
| Image File Format | JPEG with Measurement Data Included |
| Video Storage Capacity | 56 Hours |
| Video File Format | MP4 |
| Functions | |
| Laser Pointer | Yes |
| Laser Type | Class Ⅱ |
| LED Light | 70 Lumens |
| Wi-Fi | 802.11 a/ac/b/g/n (2.4 and 5 GHz) |
| Bluetooth | Bluetooth 4.2 |
| Level/Span | Auto/Manual |
| Text Comment | Max. 200 Characters |
| Voice Comment | Max. 60 Seconds |
| Power System | |
| Power Supply | 12 V DC/1.5A, 5V DC/2A (Charging via USB) |
| Power Consumption | 4.6 W |
| Battery Type | Dismountable and Rechargeable Li-ion Battery |
| Battery Operating Time | 4 Hours Continuous Running |
| General | |
| Menu Language | 18 Languages - English/German/French/Russian/Korean/Spanish/Portuguese/Italian/Japanese/Hungarian/Czech/Slovak/Polish/Romanian/Danish/Turkish/Traditional_Chinese/Arabic |
| Working Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft.) |
| Interface | USB Type-C |
| Weight | Approx. 660 g (1.46 lb.) |
| Dimension | 244 mm × 100 mm × 104 mm (9.6" × 3.9" × 4.1") |
| Tripod Mounting | UNC 1/4”-20 |
Thermal Imagers/Building and Industrial Thermal Imagers Template |
|
| Detector Size | 384 x 288 Sensor |
| Thermal Sensitivity | 35 mK (NETD) |
| Temperature Range Max | 1022 F |
| Temperature Range Min | -4 F |
| Image Frequency | 25 Hz |
| Field of View | 36x27 Degrees |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | Yes |
| Focus | Adjustable |
| Laser Spot | Yes |
| Picture in Picture | Yes |
| Video Recording | Yes |
| Moveable Spots | Yes |
| Touch Screen Display | Yes |
| Minimum Focus Distance | 0.08 M |
| Accuracy | +/-2% or +/-2C |
| Battery operating time Continuous | 4 HR |
| Camera Light | Yes |
| IR Digital Zoom | Yes |
| Voice Annotation | Yes |
| Intrinsically Safe | No |
| Test Equipment General Attributes | |
| Warranty | 3 YEARS |
| Safety Approval | CE, RoHS |
| Interfaces I/O | Bluetooth, Wifi, USB |
| Storage | Micro SD |
| IP Rating | IP54 |
| Product Weight | 1.52 LBS |
| Product Height | 9.6 IN |
| Product Length | 4.1 IN |
| Product Width | 3.9 IN |
| Shipping Weight | 2 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 9027.50.4020 |
| ECCN Number | 6A003.b.4.b |
| Calibration Included | Factory Calibration |
| Battery Type | Li-ion |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
| UPC | 8.4257E+11 |
Includes
Thermal Imager with Wrist Strap
Two-bay battery charger and power supply
International Use Plugs (US/EU/UK/AU) for Power Supply (x4)
USB 2.0 A to USB Type-C Cable
Hard Carrying Case
Calibration Certificate / Quick Start Guide
64GB Micro SD card
