(item no. 4472387)
Key features
- Performs all five essential lighting tests in under 30 seconds to pinpoint problems and verify operation
- Survives on-the-job handling—Drop-tested to survive a drop from a six foot (two meter) ladder
- Delivers quick, easy results with bright indicator light plus audible alert
- Comes with a three-year warranty

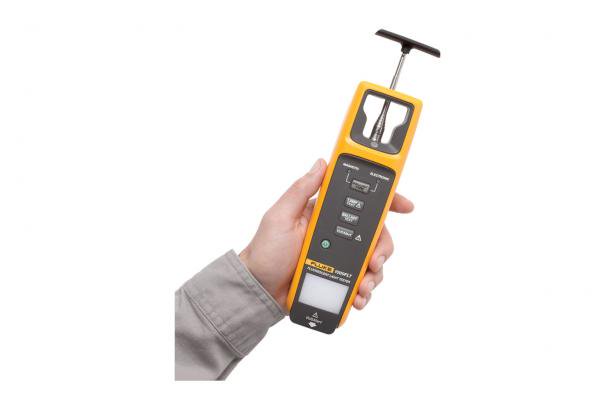

Product overview: Fluke 1000FLT Fluorescent Light Tester
The Fluke 1000FLT takes the trial and error out of fluorescent light testing.
The Fluke 1000FLT performs all five essential tests with one compact tool. If your job requires keeping large numbers of fluorescent lights shining, the Fluke 1000FLT is an indispensable tool that saves time and money.
As one of the most complete lamp testers on the market, the 1000FLT enables you to perform the five essential lighting tests:
- Lamp test: Test bulb without removing from fixture
- Ballast test: Easily determine if ballast is working
- Non-contact voltage: Quickly check for voltage presence
- Pin continuity test: Tests if filaments have continuity
- Ballast-type test: Determine if ballast is electronic or magnetic without taking fixture apart–identify energy wasting ballasts
Other useful capabilities:
- Built to last, easy to maintain. Features a rugged, extendable all metal test rod that can be easily replaced should the need arise.
Specifications: Fluke 1000FLT Fluorescent Light Tester
| General Specifications | |
| Lamp test max output | 3000 V peak |
| Ballast test | 20 kHz |
| Ballast type descriminator | ≤3m (10 feet) distance |
| Pin continuity test | < 1 kΩ |
| NCV (VoltAlert™) | 85 to 400 V AC 45 a 67 Hz ≤10 cm (4 in) distance |
| Environmental Specifications | |
| Temperature | Operating: -10 °C to +50 °C (14 °F to +122 °F) Storage: -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative humidity | 85% maximum |
| Safety Specifications | |
| Safety rating | IEC 61010-1, pollution degree 2 |
| Mechanical and General Specifications | |
| Size | 21.5 cm x 3.0 cm x 6.5 cm (8.5 x 1.2 x 2.6 in) |
| Weight | 0.37 kg (0.80 lb.) |
| Battery type | 4 x AA alkaline IEC LR6 |
| Battery life | 40 hours |
| Auto power off | 20 minutes after non-use |
| Low battery indicator | Power button light blinks when power is low (typically 85% of capacity depleted) |
| Operating altitude | <2000 m |
| Electromagnetic environment | EN 61326-1: Portable |
| Electromagnetic compatibility | CE IEC: CISPR 11: Grupo 2, clase A |
| Group 2 contains all ISM RF equipment in which radio-frequency energy in the frequency range 9 kHz to 400 GHz is intentionally generated and used or only used, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material or inspection/analysis purposes | |
| Class A equipment is suitable for use in non-domestic locations and/or directly connected to a low-voltage power supply network | |
| EE.UU. FCC part 15, subpart B: exempt as test equipment per clause 15.103 | |
| Korea only Clas A Equipment (Industrial Broadcasting & Communication Equipment)1 | |
| 1 This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. | |
| Resistance to impact | 2 meter drop |
| Warranty | 3 years |
Includes:
- Quick reference guide
- 4 AA alkaline batteries
- H1000 holster
- Warranty card (3 year warranty)
Manuals
- 1000FLT | Users manual
- 1000FLT | Quick reference guide
- 1000FLT | Safety sheet
- 1000FLT | Instruction card
Data Sheets
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
