Major Tech MTiB12 Body & Surface Thermal Imager

SKU: MTiB12
£940.00

Freight Charge for orders under $300 ex. GST / Free delivery for orders which exceed $300 ex. GST.

• If you require your order urgently, then you can choose express delivery - price TBC at point of sale.

You are most welcome to use your own courier if preferred and there is no admin fee for this.

Checkout Secure
Need more info? Call us +61 8 9335 1718
  • 80 x 80 pixel thermal imaging system
  • 6400 points real temperature fast measurements
  • Screening Temperature mode 32-42°C
  • Measuring Accuracy: ±0.5°C
  • Thermal sensitivity: <0.1°C | 300°C / 100mK
  • 50Hz fast Thermal image frame rate
  • Hot, Cold, Centre three temperature tracking function
  • Large, easy-to-read, bright graphical TFT display
  • Bluetooth image instant share & save with iOS and Android smart device
  • Scene temperature range Lock function.
  • With LED flashlight function
  • Long running time up to 8 hours with rechargeable battery
  • Smart and compact design
  • Rugged industrial design
  • Data Logging

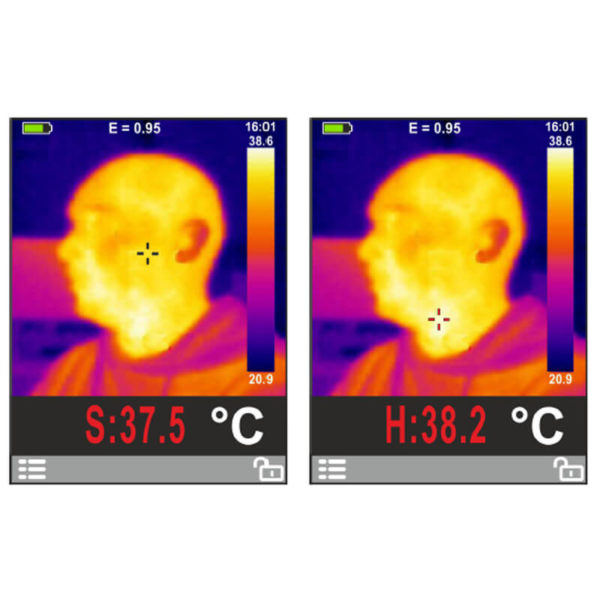

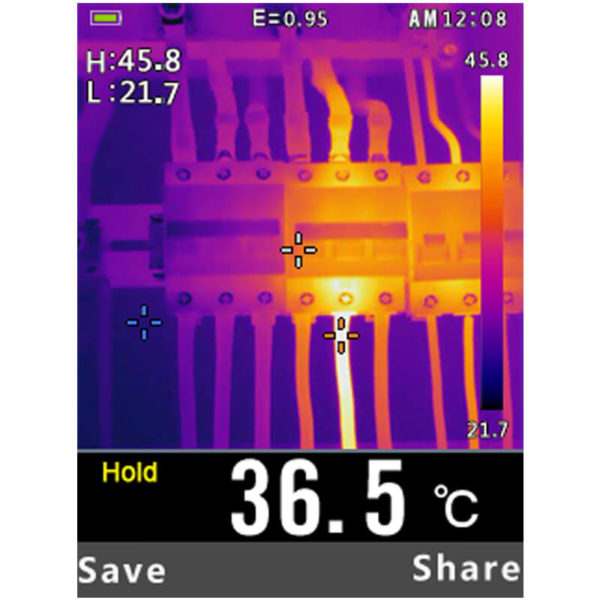

The MTiB12 Body & surface Thermal Imager is a handheld thermal imaging camera used for measuring body temperature and can also be used for predictive maintenance, equipment troubleshooting and verification. The MTiB12 features a 20mS sampling rate and is ideal for scanning multiple targets. The adjustable High alarm makes it easy to instantly identify a person in a group that has an above average temperature. Thermal images are displayed on the LCD display and can be saved on the internal memory. With Bluetooth and an instant share function, the thermal images can be transferred to one’s smart phone to analyze, share and perform quick reporting.

Specifications

Function Range
Imaging and Optical Data
Field of View 21⁰ x 21⁰
Spatial Resolution (IFOV) 4.53mrad
Thermal Sensitivity/NETD <0.1⁰C @ +30⁰C / 100mK10.12:1
Image Range 50Hz
Focus mode Manual
Focus Mode Focus Free
Focal Length 7.5mm
Focal Plane Array (FPA)/Spectral Range Uncooled microbolometer / 8-14um
IR Resolution 80 x 80 pixels
Image Presentation
Display 22 colour TFT LCD, 240 x 320 pixels
Image Modes IR Image
Colour Pallets Iron, Rainbow, Grey, Grey Inverted, Rainbow high contrast
Measurement
Temperature Range -20⁰C to +380⁰C
Temperature Accuracy ± (2.0% +2⁰C)
Body Temperature Range +32⁰C to +42⁰C
Body Temperature Accuracy ± 0.5⁰C
Storage
Images Format Bitmap (BMP) including measurement data
Size 175 x 58 x 70mm
Weight 450g



Includes:

  • Instruction Manual
  • Rechargeable Battery
  • Battery Charger

Downloads

MTiB12 Instruction Manual
MTiB12 Brochure



Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

  • 80 x 80 pixel thermal imaging system
  • 6400 points real temperature fast measurements
  • Screening Temperature mode 32-42°C
  • Measuring Accuracy: ±0.5°C
  • Thermal sensitivity: <0.1°C | 300°C / 100mK
  • 50Hz fast Thermal image frame rate
  • Hot, Cold, Centre three temperature tracking function
  • Large, easy-to-read, bright graphical TFT display
  • Bluetooth image instant share & save with iOS and Android smart device
  • Scene temperature range Lock function.
  • With LED flashlight function
  • Long running time up to 8 hours with rechargeable battery
  • Smart and compact design
  • Rugged industrial design
  • Data Logging

The MTiB12 Body & surface Thermal Imager is a handheld thermal imaging camera used for measuring body temperature and can also be used for predictive maintenance, equipment troubleshooting and verification. The MTiB12 features a 20mS sampling rate and is ideal for scanning multiple targets. The adjustable High alarm makes it easy to instantly identify a person in a group that has an above average temperature. Thermal images are displayed on the LCD display and can be saved on the internal memory. With Bluetooth and an instant share function, the thermal images can be transferred to one’s smart phone to analyze, share and perform quick reporting.

Specifications

Function Range
Imaging and Optical Data
Field of View 21⁰ x 21⁰
Spatial Resolution (IFOV) 4.53mrad
Thermal Sensitivity/NETD <0.1⁰C @ +30⁰C / 100mK10.12:1
Image Range 50Hz
Focus mode Manual
Focus Mode Focus Free
Focal Length 7.5mm
Focal Plane Array (FPA)/Spectral Range Uncooled microbolometer / 8-14um
IR Resolution 80 x 80 pixels
Image Presentation
Display 22 colour TFT LCD, 240 x 320 pixels
Image Modes IR Image
Colour Pallets Iron, Rainbow, Grey, Grey Inverted, Rainbow high contrast
Measurement
Temperature Range -20⁰C to +380⁰C
Temperature Accuracy ± (2.0% +2⁰C)
Body Temperature Range +32⁰C to +42⁰C
Body Temperature Accuracy ± 0.5⁰C
Storage
Images Format Bitmap (BMP) including measurement data
Size 175 x 58 x 70mm
Weight 450g



Includes:

  • Instruction Manual
  • Rechargeable Battery
  • Battery Charger

Downloads

MTiB12 Instruction Manual
MTiB12 Brochure
