(item no. 4531769)

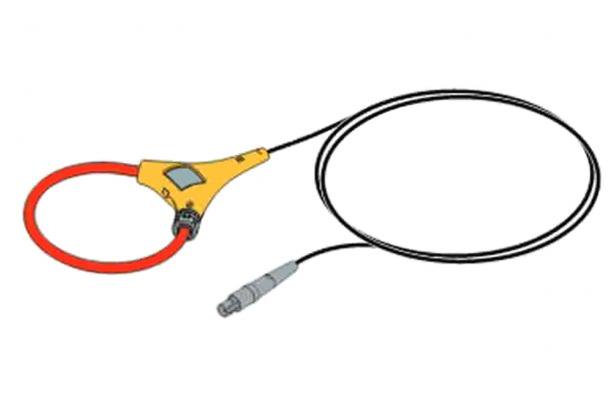

Utilising the Rogowski principle, this thin flex current probe is for use with the Fluke 1750 power recorders. Additionally, this probe measures current from very low frequencies up to the 50th harmonic of a 50/60 Hz power supply and is ideal for hard to reach areas and around large conductors.
Specifications
| Electrical Specifications | |
| Measurement Range | 20 to 1000 A (with a crest factor ≤3) |
| Frequency Range | 40 Hz to 5 kHz |
| Accuracy at 77°F (25°C) | ±1% of reading |
| Linearity (10 to 100% of Range) | ±0.2% of reading |
| Temperature Coefficient | ±0.05% of reading per °C |
| Position Sensitivity (with Cable >25 mm from the Coupling) | ±2% of reading |
| External Field (with Cable >200 mm from the Head) | ±1% of reading |
| Working Voltage (see Safety Standards) | 1000 V AC RMS or DC |
| General Specifications | |
| Probe Cable Length | 24" (610 mm) |
| Probe Cable Diameter | 0.3" (8 mm) |
| Transducer Bend Radius (Min) | 1.5" (38.1 mm) |
| Output Cable | 2 core screened, double insulated, 3 meters long |
| Output Connector | LEMO 6 pin male connector |
| Operating Temperature Range | -4 to 158°F (-20 to 70°C) (the temperature of the conductor under test shall not exceed 176°F (80°C)) |
| Storage Temperature Range | -40 to 176°F (-40 to 80°C) |
| Operating Humidity | 15 to 85% (non condensing) |
| Altitude | Max 6562' (2000 m) |
| Degree of Ingress Protection | IP40 (IEC 60529) |
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
(item no. 4531769)
Utilising the Rogowski principle, this thin flex current probe is for use with the Fluke 1750 power recorders. Additionally, this probe measures current from very low frequencies up to the 50th harmonic of a 50/60 Hz power supply and is ideal for hard to reach areas and around large conductors.
Specifications
| Electrical Specifications | |
| Measurement Range | 20 to 1000 A (with a crest factor ≤3) |
| Frequency Range | 40 Hz to 5 kHz |
| Accuracy at 77°F (25°C) | ±1% of reading |
| Linearity (10 to 100% of Range) | ±0.2% of reading |
| Temperature Coefficient | ±0.05% of reading per °C |
| Position Sensitivity (with Cable >25 mm from the Coupling) | ±2% of reading |
| External Field (with Cable >200 mm from the Head) | ±1% of reading |
| Working Voltage (see Safety Standards) | 1000 V AC RMS or DC |
| General Specifications | |
| Probe Cable Length | 24" (610 mm) |
| Probe Cable Diameter | 0.3" (8 mm) |
| Transducer Bend Radius (Min) | 1.5" (38.1 mm) |
| Output Cable | 2 core screened, double insulated, 3 meters long |
| Output Connector | LEMO 6 pin male connector |
| Operating Temperature Range | -4 to 158°F (-20 to 70°C) (the temperature of the conductor under test shall not exceed 176°F (80°C)) |
| Storage Temperature Range | -40 to 176°F (-40 to 80°C) |
| Operating Humidity | 15 to 85% (non condensing) |
| Altitude | Max 6562' (2000 m) |
| Degree of Ingress Protection | IP40 (IEC 60529) |
