(item no. 2508467)
Product Overview
Expand the use of your Fluke 430 series power quality tool with this 5 A ac current clamp, specially configured to provide low current accuracy while taking measurements on secondary current transformers.
Features
- Low level current clamp measures up to 5 A ac
- Compact shape makes transporting and storing convenient; the clamp measures only 116 x 43 x 23 mm (4. 6 x 1.7 x .9 inches)
- Take accurate readings without breakings the circuit
- CAT III 600 V (For insulated conductors only)

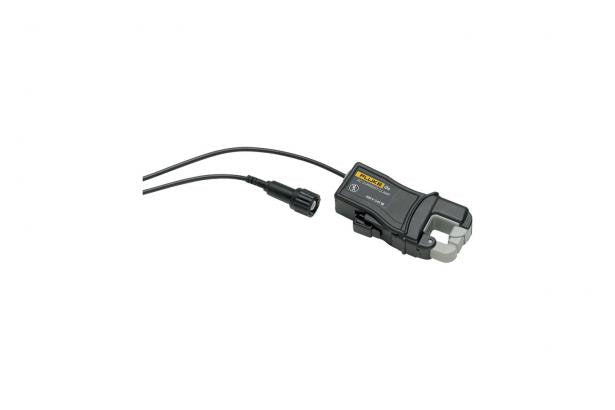

Specifications: Fluke i5S AC Current Clamp
Specifications | ||
Nominal current range | 5 A | |
Continuous current range | 10 mA to 6 A | |
Maximum Non-Destructive Current | 70 A | |
Lowest measurable current | 10 mA | |
Basic Accuracy | 48 Hz to 65 Hz | |
10 mA to 1 A | 1% + 5 mA | |
1 A to 5 A | 1% | |
Useable frequency | 40 Hz to 5 kHz | |
Output level(s) | 400 mV/A | |
Input Load Impedance | > 1 MΩ in parallel with up to 47 pF | |
Crest Factor | ≤ 3, add 0.7% to accuracy | |
Safety Specifications | ||
Safety | CAT III 600 V per IEC/EN61010-1, Pollution Degree 2 | |
Maximum voltage | 600 V AC | |
Mechanical and General Specifications | ||
Warranty | 1 year | |
Maximum conductor diameter | 15 mm | |
Output cable length | 2.5 m | |
BNC Adapter | Yes | |
BNC to banana adapter included | No |
Manuals
Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
(item no. 2508467)
Product Overview
Expand the use of your Fluke 430 series power quality tool with this 5 A ac current clamp, specially configured to provide low current accuracy while taking measurements on secondary current transformers.
Features
- Low level current clamp measures up to 5 A ac
- Compact shape makes transporting and storing convenient; the clamp measures only 116 x 43 x 23 mm (4. 6 x 1.7 x .9 inches)
- Take accurate readings without breakings the circuit
- CAT III 600 V (For insulated conductors only)
Specifications: Fluke i5S AC Current Clamp
Specifications | ||
Nominal current range | 5 A | |
Continuous current range | 10 mA to 6 A | |
Maximum Non-Destructive Current | 70 A | |
Lowest measurable current | 10 mA | |
Basic Accuracy | 48 Hz to 65 Hz | |
10 mA to 1 A | 1% + 5 mA | |
1 A to 5 A | 1% | |
Useable frequency | 40 Hz to 5 kHz | |
Output level(s) | 400 mV/A | |
Input Load Impedance | > 1 MΩ in parallel with up to 47 pF | |
Crest Factor | ≤ 3, add 0.7% to accuracy | |
Safety Specifications | ||
Safety | CAT III 600 V per IEC/EN61010-1, Pollution Degree 2 | |
Maximum voltage | 600 V AC | |
Mechanical and General Specifications | ||
Warranty | 1 year | |
Maximum conductor diameter | 15 mm | |
Output cable length | 2.5 m | |
BNC Adapter | Yes | |
BNC to banana adapter included | No |
