(item no. 3086910)

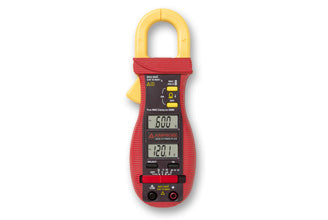

The Amprobe ACD-14 TRMS-PLUS Digital Clamp Multimeter is the perfect choice for HVAC and electrical applications due to its versatile set of features which includes microamps, temperature with thermocouple, capacitance, frequency and true-rms accuracy. This digital clamp multimeter provides added functionality with a dual display for views of amperage and voltage simultaneously.
Features
- Dual displays – permits simultaneous reading of amperage and voltage
- True-rms for precise measurement results
- New thin jaws, 5mm thinner than others to access tight measurement spaces
- Micro Amps measurement for testing flame sensors
- Capacitance to 3000 µF
- Temperature with K-type thermocouple probe
- AC and DC Voltage to 600V
- Resistance to 40MΩ
- AC Current to 600A
- Frequency measurement
- Diode test and continuity buzzer
- Hold and maximum reading functions
- In rush current
- Accommodates conductors up to 28 mm (1.1) in diameter
- Auto ranging
- Auto power off and low battery indication
- Rubber over-molded case
Specifications
| FEATURE | ACD-14 PLUS | ACD-14 TRMS-PLUS |
| True-rms | – | • |
| AC Voltage | 4.000 V, 40.00 V, 400.0 V, 600 V | |
| DC Voltage | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V | |
| AC Current | 40.00 A, 400.0 A, 600 A | |
| Resistance | 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO | |
| Capacitance | 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF | |
| Frequency | 40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads | |
| Temperature | -4 °F → 999 °F (-20 °C → 537 °C) | |
| Dual displays | • | • |
| Micro amps | • | • |
| Accommodates conductors | up to 1.0 (25 mm) in diameter | |
| Specifications | |
| Display: | 3-3/4 digits 4000 counts, dual LCD displays |
| Update rate: | 3 per second nominal |
| Polarity: | Automatic |
| Operating temperature: | 0°C to 40°C (32°F to 104°F) |
| Power supply: | Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032 |
Download
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
(item no. 3086910)
The Amprobe ACD-14 TRMS-PLUS Digital Clamp Multimeter is the perfect choice for HVAC and electrical applications due to its versatile set of features which includes microamps, temperature with thermocouple, capacitance, frequency and true-rms accuracy. This digital clamp multimeter provides added functionality with a dual display for views of amperage and voltage simultaneously.
Features
- Dual displays – permits simultaneous reading of amperage and voltage
- True-rms for precise measurement results
- New thin jaws, 5mm thinner than others to access tight measurement spaces
- Micro Amps measurement for testing flame sensors
- Capacitance to 3000 µF
- Temperature with K-type thermocouple probe
- AC and DC Voltage to 600V
- Resistance to 40MΩ
- AC Current to 600A
- Frequency measurement
- Diode test and continuity buzzer
- Hold and maximum reading functions
- In rush current
- Accommodates conductors up to 28 mm (1.1) in diameter
- Auto ranging
- Auto power off and low battery indication
- Rubber over-molded case
Specifications
| FEATURE | ACD-14 PLUS | ACD-14 TRMS-PLUS |
| True-rms | – | • |
| AC Voltage | 4.000 V, 40.00 V, 400.0 V, 600 V | |
| DC Voltage | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V | |
| AC Current | 40.00 A, 400.0 A, 600 A | |
| Resistance | 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO | |
| Capacitance | 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF | |
| Frequency | 40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads | |
| Temperature | -4 °F → 999 °F (-20 °C → 537 °C) | |
| Dual displays | • | • |
| Micro amps | • | • |
| Accommodates conductors | up to 1.0 (25 mm) in diameter | |
| Specifications | |
| Display: | 3-3/4 digits 4000 counts, dual LCD displays |
| Update rate: | 3 per second nominal |
| Polarity: | Automatic |
| Operating temperature: | 0°C to 40°C (32°F to 104°F) |
| Power supply: | Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032 |
Download
Shipping
| Shipping | This item ships to |
Delivery & Returns
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
