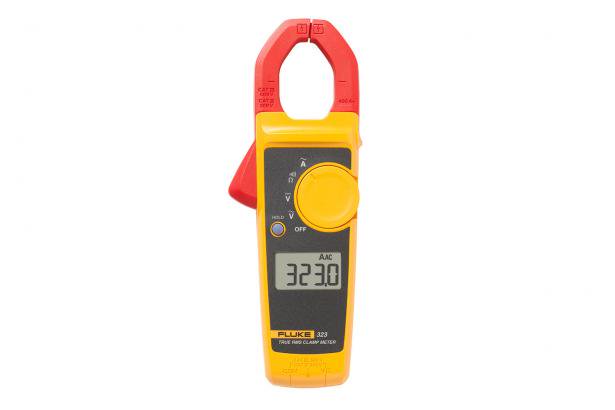

Fluke 323 400aac True Rms Clampmeter (item no. 4152628)

SKU: 4152628

£164.00

Need more info? Call us +61 8 9335 1718

Price Match International Orders Tax Removed

(item no. 4152628)

Product overview

Delivers rugged and reliable performance and includes True RMS measurements, optimised ergonomics, and large display which makes it ideal for troubleshooting. This clamp meter is part of the 320 series and is built to perform in the toughest environments, and provides you with noise-free and reliable results. Its slim, compact size and rugged design makes it well suited for measuring currents up to 400 A in tight cable compartments. Use it to verify the presence of load current, AC voltage, continuity of circuits, switches, fuses, and contacts.

Features

Rugged, reliable basic True-RMS clamp meter for measuring current up to 400 A
Measures AC current to 400 A
Measures AC voltage and DC voltage to 600 V
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Measures resistance to 4 kΩ with continuity detection
Slim, ergonomic design for measuring in tight cable compartments
Presents measurements on a large, easy-to-read display
Hold function captures a reading on the display
CAT III 600 V, CAT IV 300 V safety rating

Applications

Electrical
Commercial
Residential
Plant maintenance
HVAC/R

Specifications: Fluke 323 True RMS Clamp Meter

Specifications
AC current	Range	400.0 A
	Accuracy	2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz)
DC current	Range	-
	Accuracy	-
AC voltage	Range	600.0 V
	Accuracy	1.5% ± 5 digits
DC voltage	Range	600.0 V
	Accuracy	1.0% ± 5 digits
Resistance	Range	400.0 Ω/ 4000 Ω
	Accuracy	1.0% ± 5 digits
Continuity		≤ 70 Ω
Capacitance		-
Frequency		-
AC response		True-RMS
Backlight		-
Data hold		Yes
Contact temperature		-
Min/Max		-
Size	H x W x D (mm)	207 x 75 x 34
	Max wire diameter	30 mm (600 MCM)
	Weight	265 g
Category rating		CAT III 600 V CAT IV 300 V
Warranty		Two-year

Includes:

Test leads
Soft case
User's manual

Manuals

Data Sheets

320 Series True-rms Clamp Meters
