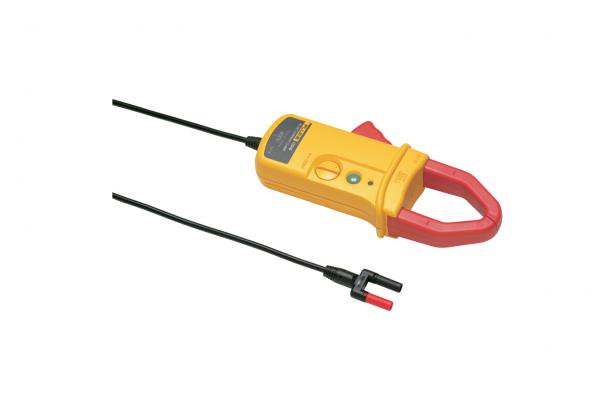

Product overview: Fluke i1010 AC/DC Current Clamp
Fluke current clamps extend the current ranges of Fluke tools. The Fluke i1010 AC/DC current clamp is highly reliable, measures 1 A to 1000 A and provides accurate current reading without breaking the circuit. This clamp measures both ac and dc current with a large jaw, battery-powered Hall-effect probe that gives access to difficult to reach areas. Compatible with most Fluke multimeters.
Features
- The Fluke i1010 AC/DC current clamp is a battery-powered Hall-effect probe that extend the current ranges of Fluke tools, measuring DC current from 1 A to 1000 A and AC current from 1 A to 600A.
- Provides accurate current reading without breaking the circuit.
- Compatible with most Fluke multimeters.
- CAT III 600 V safety rating
Specifications: Fluke i1010 AC/DC Current Clamp
| Specifications | |
| Measurement type | Hall sensor |
| Nominal current range | 600 A, AC 1000 A, DC |
| Continuous current range | 1 A - 600 A, AC 1 A - 1000 A, DC |
| Maximum non-desctructive current | 1000 A |
| Lowest measureable current | 0.5 A |
| Basic accuracy | 2% + 0.5 A (% reading + floorspec) |
| Useable frequency | DC - 10 kHz |
| Output level(s) | 1 mV/A |
| Zero error adjustment | Yes |
| Safety Specifications | |
| Safety | CAT III, 600 V |
| Maximum voltage | 600 V |
| Mechanical and General Specifications | |
| Warranty | 1 year |
| Battery life | 9 V, 60 h |
| Maximum conductor diameter | 30 mm 2 x 25 mm |
| Output cable length | 1.6 m |
| Shrouded banana plugs | Yes |
Manual
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
Product overview: Fluke i1010 AC/DC Current Clamp
Fluke current clamps extend the current ranges of Fluke tools. The Fluke i1010 AC/DC current clamp is highly reliable, measures 1 A to 1000 A and provides accurate current reading without breaking the circuit. This clamp measures both ac and dc current with a large jaw, battery-powered Hall-effect probe that gives access to difficult to reach areas. Compatible with most Fluke multimeters.
Features
- The Fluke i1010 AC/DC current clamp is a battery-powered Hall-effect probe that extend the current ranges of Fluke tools, measuring DC current from 1 A to 1000 A and AC current from 1 A to 600A.
- Provides accurate current reading without breaking the circuit.
- Compatible with most Fluke multimeters.
- CAT III 600 V safety rating
Specifications: Fluke i1010 AC/DC Current Clamp
| Specifications | |
| Measurement type | Hall sensor |
| Nominal current range | 600 A, AC 1000 A, DC |
| Continuous current range | 1 A - 600 A, AC 1 A - 1000 A, DC |
| Maximum non-desctructive current | 1000 A |
| Lowest measureable current | 0.5 A |
| Basic accuracy | 2% + 0.5 A (% reading + floorspec) |
| Useable frequency | DC - 10 kHz |
| Output level(s) | 1 mV/A |
| Zero error adjustment | Yes |
| Safety Specifications | |
| Safety | CAT III, 600 V |
| Maximum voltage | 600 V |
| Mechanical and General Specifications | |
| Warranty | 1 year |
| Battery life | 9 V, 60 h |
| Maximum conductor diameter | 30 mm 2 x 25 mm |
| Output cable length | 1.6 m |
| Shrouded banana plugs | Yes |
