Item no. 5009461

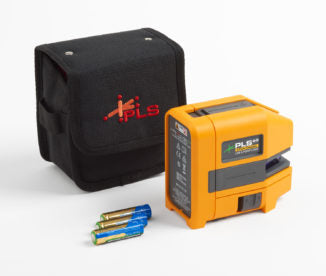

Plumb, level, and square with one tool. This professional self-levelling green combination point and cross line laser level includes vertical and horizontal modes with lines and points combined. Great for metal or wood stud installation, general layout, square alignment, or finish carpentry.
Features
- Plumb, level, and square with one tool. This professional self- leveling combination point and cross line laser level in red and green includes vertical and horizontal modes with lines and points combined. Great for metal or wood stud installation, general layout, square alignment, or finish carpentry.
- Kit includes floor stand, magnetic L-bracket, and UB9 wall and ceiling bracket for fast, easy overhang and centerline measurements.
- System includes the SLD laser line detector for use in bright lighting, long distances, or outdoors.
- Accuracy: ≤1/8 in at 30 ft. (≤3 mm @ 10 m)
- Green beam laser
- Point Laser Direction: 90° up, down, left, right
- Horizontal fan angle: 180 °
- Vertical fan angle: 130°
- Durable pendulum lock
- IP54 rating to limit dust and water entry for years of operation on the job site.
Specifications
| Rotary levels | PLS 6R, 6G | ||
|---|---|---|---|
| Battery | 3 x AA Alkaline IEC LR6 | ||
| Battery Life, Continuous Use | |||
| Red | ≥ 8 hours (both lasers) | ||
| Green | ≥ 3 hours (both lasers) | ||
| Point Laser Direction | 90° up, down, left, right | ||
| Line Fan Angle | |||
| Horizontal | ≥ 180° | ||
| Vertical | ≥ 130° | ||
| Working Range | |||
| Point Laser (6 only) | ≤30 m (100 ft.) | ||
| Line Laser | |||
| Without SLD | ≤15 m (50 ft.) | ||
| With SLD | 6 m to 60 m (20 ft. to 200 ft.) | ||
| Accuracy | ≤3 mm @ 10 m (≤1/8 in at 30 ft.) | ||
| Laser Leveling | |||
| System | Automatic, Pendulum | ||
| Range | 4° | ||
| Line Laser Width | ≤2 mm at 5 m | ||
| Temperature | |||
| Operating | -10 °C to 50 °C (14 °F to 122 °F) | ||
| Storage | |||
| With Batteries | -18 °C to 50 °C (-0.4 °F to 122 °F) | ||
| Without Batteries Relative Humidity |
-20 °C to 70 °C (-13 °F to 158 °F) 0 % to 90 % (0 °C to 35 °C) 0 % to 75 % (35 °C to 40 °C) 0 % to 45 % (40 °C to 50 °C) |
||
| Size (H x W x L) | 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in) | ||
| Weight | ~ 0.6 kg (1.3 lb.) | ||
| Safety | IEC 61010-1: Pollution Degree 2 | ||
| Laser | IEC 60825-1:2014 Class 2 | ||
| Light Source | Semiconductor laser diode | ||
| Max Output Power | < 1 mW | ||
| Wavelength | |||
| Red | 635 nm ± 5 nm | ||
| Green | 525 nm ± 5 nm | ||
Additional information
| Accuracy |
1/8" @ 30' (3mm @ 10m) |
|---|---|
| Batteries |
Alkaline – 3 AA (included) |
| Laser Class |
Class II |
| IP Rating |
Product IP Rating 54 |
| Operating Time |
≥ 3 hours |
What's in the box
Accessories
Manual
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
