| Article-No. | Name | Details | Output Power | Wavelength | Source | Optic | Laser Class | Fan Angle | Accuracy |
| 101149700 | ZLP1-5-G-P | Compact Laser Projector with passive cooling heatsinks Temperature range: +5 °C up to + 40 °C |
5 mW | 520 nm | ZX | Standard | 2M | 60° | .+/- 3.0 mm/m |
| 101149500 | ZLP1-5-G-A | Compact Laser Projector with active cooling Temperature range: +5 °C up to + 45 °C |
5 mW | 520 nm | ZX | Standard | 2M | 60° | .+/- 3.0 mm/m |
| 101149300 | ZLP1-5-G-P-PC | Compact Laser Projector with passive cooling heatsinks and integrated PC board Temperature range: +5 °C up to + 40 °C |
5 mW | 520 nm | ZX | Standard | 2M | 60° | .+/- 3.0 mm/m |
| 101149100 | ZLP1-5-G-A-PC | Compact Laser Projector with active cooling and integrated PC board Temperature range: +5 °C up to + 45 °C |
5 mW | 520 nm | ZX | Standard | 2M | 60° | .+/- 3.0 mm/m |
Cost efficient laser projector. Optimized for smaller projection areas and optical worker guidance. Comes with the intuitive software package ZLP suite and contains an API for easy integration in your existing software.

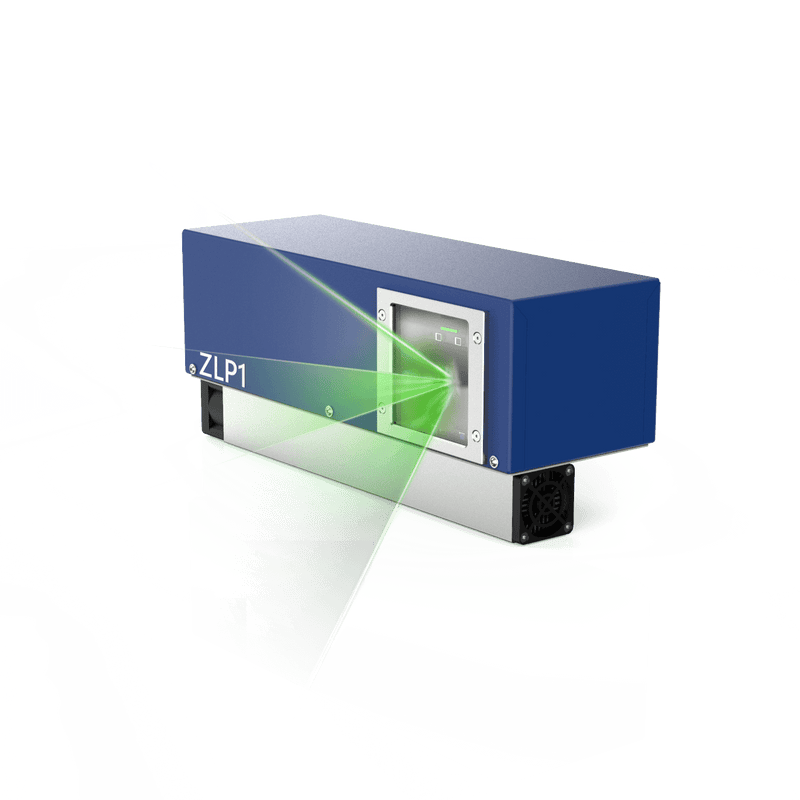

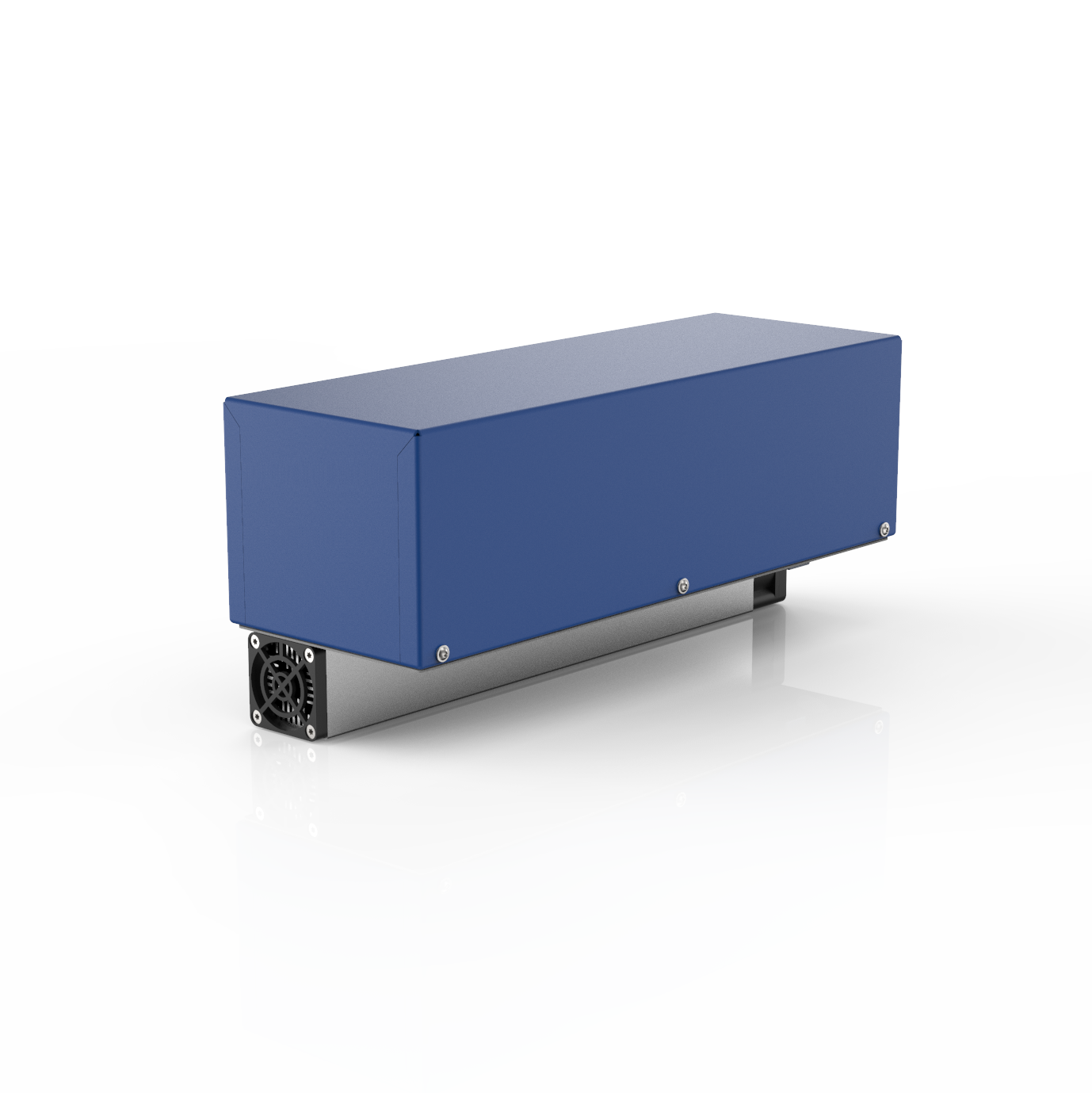

ZLP1 is a cost-effective entry to laser projection. It is the smallest laser projector in the Z-LASER ZLP family.
ZLP1 is directed to 2D and 3D applications like pick-and-place, logistics, and workstations. Enlarge and optimize your production or workflow by this easy to use laser projection system. ZLP1 is eye-safe (laser class 2M) and covers working fields from 1.0m x 1.0m up to 3.5m x 3.5m. Possible working distances range from 1.0m to 3.0m.
We offer our own software ZLP-Suite, which has an intuitive software interface with many customizable options and as a result customers can adapt the settings according to their specific application. Furthermore, ZLP-Suite can be upgraded with additional software modules. Thanks to its numerous connectivity options the laser projector can be operated through various software interfaces such as C++, C#, Python or even with Microsoft Excel and Microsoft PowerPoint.
Additional Information
| Output power | |
|---|---|
| Wavelength | |
| Projection | |
| Beam angle | |
| Application | |
| Technology | |
| Supply voltage | |
| Laser class | |
| IP protection class |
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
| Article-No. | Name | Details | Output Power | Wavelength | Source | Optic | Laser Class | Fan Angle | Accuracy |
| 101149700 | ZLP1-5-G-P | Compact Laser Projector with passive cooling heatsinks Temperature range: +5 °C up to + 40 °C |
5 mW | 520 nm | ZX | Standard | 2M | 60° | .+/- 3.0 mm/m |
| 101149500 | ZLP1-5-G-A | Compact Laser Projector with active cooling Temperature range: +5 °C up to + 45 °C |
5 mW | 520 nm | ZX | Standard | 2M | 60° | .+/- 3.0 mm/m |
| 101149300 | ZLP1-5-G-P-PC | Compact Laser Projector with passive cooling heatsinks and integrated PC board Temperature range: +5 °C up to + 40 °C |
5 mW | 520 nm | ZX | Standard | 2M | 60° | .+/- 3.0 mm/m |
| 101149100 | ZLP1-5-G-A-PC | Compact Laser Projector with active cooling and integrated PC board Temperature range: +5 °C up to + 45 °C |
5 mW | 520 nm | ZX | Standard | 2M | 60° | .+/- 3.0 mm/m |
Cost efficient laser projector. Optimized for smaller projection areas and optical worker guidance. Comes with the intuitive software package ZLP suite and contains an API for easy integration in your existing software.
ZLP1 is a cost-effective entry to laser projection. It is the smallest laser projector in the Z-LASER ZLP family.
ZLP1 is directed to 2D and 3D applications like pick-and-place, logistics, and workstations. Enlarge and optimize your production or workflow by this easy to use laser projection system. ZLP1 is eye-safe (laser class 2M) and covers working fields from 1.0m x 1.0m up to 3.5m x 3.5m. Possible working distances range from 1.0m to 3.0m.
We offer our own software ZLP-Suite, which has an intuitive software interface with many customizable options and as a result customers can adapt the settings according to their specific application. Furthermore, ZLP-Suite can be upgraded with additional software modules. Thanks to its numerous connectivity options the laser projector can be operated through various software interfaces such as C++, C#, Python or even with Microsoft Excel and Microsoft PowerPoint.
Additional Information
| Output power | |
|---|---|
| Wavelength | |
| Projection | |
| Beam angle | |
| Application | |
| Technology | |
| Supply voltage | |
| Laser class | |
| IP protection class |
