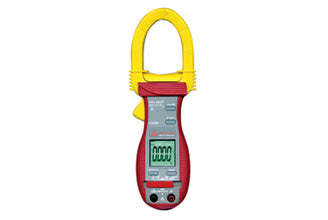

Fluke Amprobe ACD-15 TRMS-PRO professional True-RMS 2000A Clamp-on Meter

SKU: 2730690

Not Available

Need more info? Call us +61 8 9335 1718

(item no. 2730690)

The Amprobe ACD-15 TRMS-PRO offers a wide range of features built into one professional meter. The true-rms version with backlight display, improves performance and reliability.

Features

  • True-rms and backlight screen
  • Non-contact voltage level detection
  • Diode test
  • Audible continuity
  • Auto-check feature automatically selects DC V, AC V or resistance
  • Auto and manual ranging
  • Auto power off
  • Low battery indication
  • Data hold
  • Large, easy to read LCD display
  • Accommodates conductors up to 1.77 (45mm) in diameter
  • Carrying case, test leads, batteries (installed) and manual included
  • Voltage overload protection for all functions up to 600V AC/DC
  • Measurements: AC/DC voltage up to 600V, AC current up to 2000A, resistance, frequency and capacitance

Specifications

FEATURE ACD-15 TRMS PRO
True-rms
AC Current 400.0 A, 2000 A
Voltage AC/DC 6.000 V, 60.00 V, 600.0 V
Resistance 6.000 kO, 60.00 kO, 600.0 kO, 6.000 MO
Continuity
Frequency 10 Hz → 30 kHz
Capacitance 100.0 nF, 1000 nF, 10.00 µF, 100.0 µF, 2000 µF
VolTect™ Non-contact voltage
Accommodates conductors up to 1.77" (45 mm) in diameter
Specifications
AC Current: 400.0 / 2000 A
AC Current basic accuracy: +/-(1.5% Rdg + 5 LSD) @ 50 and 60Hz
AC / DC Voltage: 6.000 / 60.00 / 600V
AC / DC Voltage basic accuracy: +/-(2.0% Rdg + 5 LSD) @ DC & 50 / 60 Hz**
Resistance: 6.000 /60.00 / 600.0 kOhms 6.000 MOhms
Resistance basic accuracy: +/-(1.0% Rdg + 4 LSD) @ 60.00 to 600.0 kOhms ranges **
Frequency: 10Hz to 1kHz
Frequency basic accuracy: 0.5%+4d
Capacitance: 100.0, 1000 nF 10.00, 100.0, 2000 µF
Capacitance basic accuracy: 3.5%+5d
Non-contact voltage: 15V to 85V, 40V to 130V,60V to 210V,90V to 300V,Above 120V
True-rms: YES
